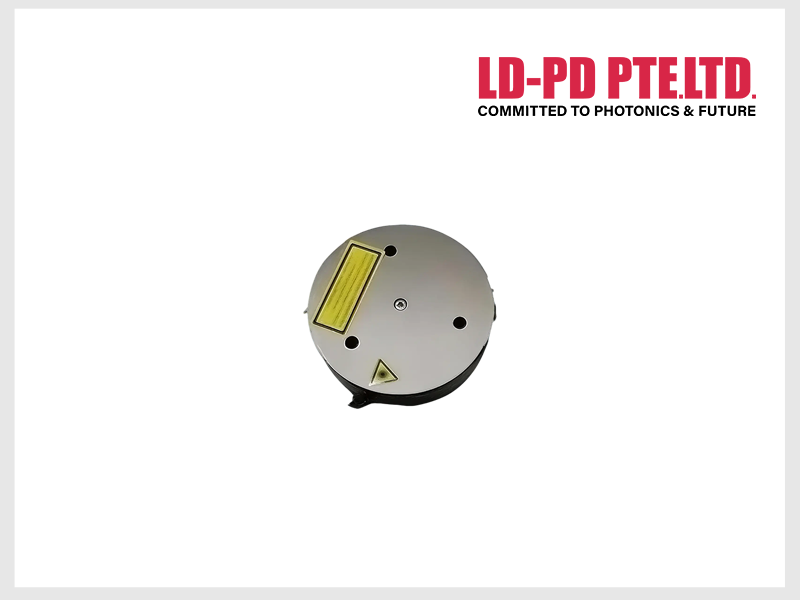

LD-PD's 1.5µm ASE light sources series provide broad wavelength range covering from C to L band and high output power to help you maximize your capabilities of optical component spectral measurements and systems compliance tests both in manufacturing and R&D environments.We special design Ultra compact module package for Customer’s system integration.
Product model
| C Band ASE Broadband PM Light Source |
PL-LS-A-A81-PA | Operating wavelength C Band,Output power 10 mW,Spectral Width 40nm, Panda 1550 NA=0.13,FC/APC | Central wavelength: C Band Output power: 10mW Spectral Width: 40 nm |
| C Band ASE Broadband SM Light Source |
PL-LS-A-A81-SA | Operating wavelength C Band,Output power 10 mW,Spectral Width 40nm, SMF 9/125um NA=0.13,FC/APC | Central wavelength: C Band Output power: 10mW Spectral Width: 40 nm |
Parameter
Features
● Single mode output fiber (PM fiber optional）
● Ultra Compact Size
● High stability and high reliability
● High flatness and low ripple
Specifications
Parameter | Unit | Specifications |
Min | Typ. | Max |
Part No. |
|
|
Output Power1 | mW | 10 | - | 200 |
Operating Wavelength | nm | 1528 | - | 1561 |
Spectral Width (FWHM) | nm | - | 40 | - |
Spectral Fatness (Standard) | dB | - | - | 7 |
Spectral Flatness (Gain Flatness) | dB | - | 1 | 1.5 |
Output Isolation | dB | 30 | 35 | - |
Stability of Output Power (15min)2 | % | - | ±0.5 | ±1.0 |
Stability of Output Power (8h)2 | % | - | ±1.0 | ±2.0 |
Operating Voltage/Current | VAC |
| +5V/2A |
|
Power Consumption3 | W | - | - | 20 |
Operating Temperature | ℃ | -10 | - | 50 |
Storage Temperature | ℃ | -40 | - | 85 |
Output Fiber Type（Single Mode） |
| SMF 9/125um NA=0.13 |
Output Fiber Type（PM） |
| Panda 1550 NA=0.13 |
Polarization Extinction Ratio (PER) | dB | > 17（PM output fiber） |
Output Fiber Length | m | > 1 |
Output Fiber Connector |
| FC/APC (other options available) |
Dimensions | mm | 270(D)×235(T) |
1. The output power is optional with the typical output power of 10mW, 20mW, 50mW, 100mW and 200mW;
2. The output power stability is measured under 25℃, after 30 minutes' warm-up;
3. The max power consumption refers to the consumption under the extreme temperature conditions.

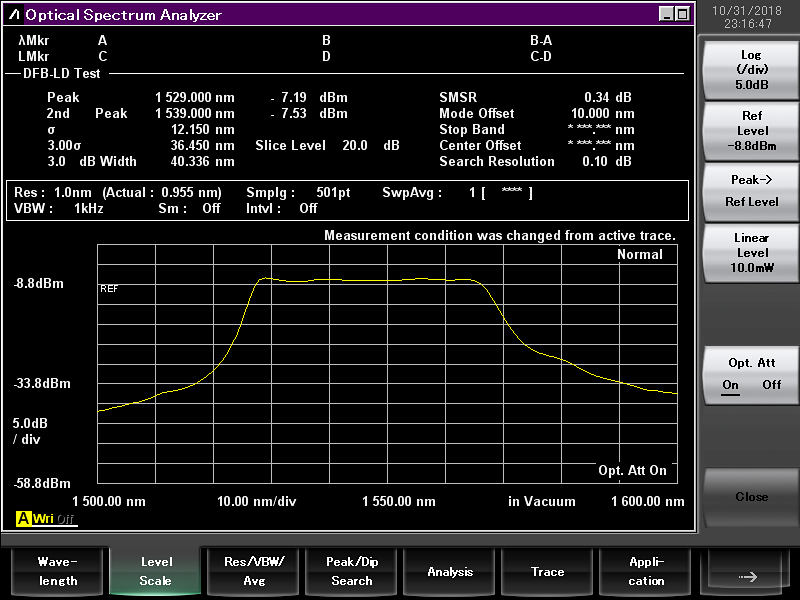

Spectrum

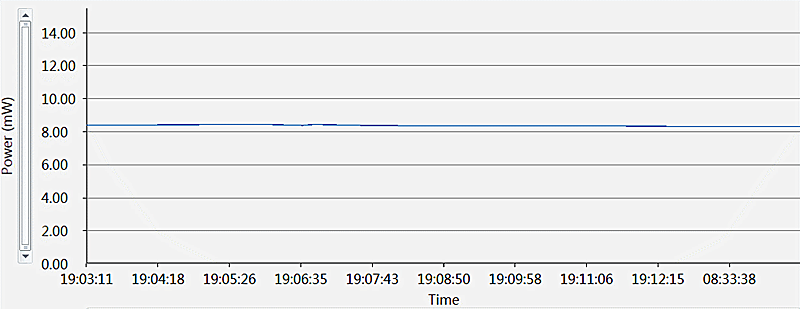

10 Hours Power stability

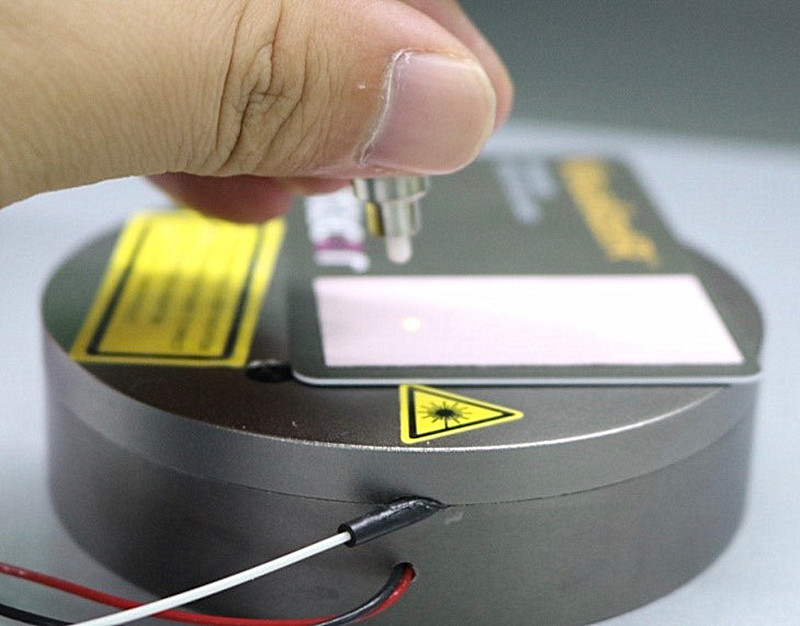

Beam Test
Application
● Components testing
● Optical fiber sensor system
● Fiber optic gyroscope
● Spectrum Analysis
● Other lab applications
Ordering Info
PL-LS-☆-A8▽-XX
☆ ：Output Power
A：10mW
B：20mW
C：50mw
D：100mw
E: 200mw
▽：Wavelength
1：C Band
2：L Band
3: C+L Band
XX: Fiber and Connector Type
SA=SMF-28E+ FC/APC
SP=SMF-28E+ FC/PC
PP=PM Fiber+ FC/PC
PA=PM Fiber+ FC/APC
