The ultra wideband SLD light source uses multiple band ultra radiation light sources for spectrum splicing and combination to realize the output of single-mode fiber covering the ultra wideband spectrum of 1250-1650nm wavelength, and has high optical power spectral density. Suitable for passive component testing, optical fiber sensing and other applications.

Product model

Ultra-Broadband SLD Light Source

SLD-2565-25-B

Operation Wavelength 1250~1650nm；Output optical power >10 mW；Spectral power density -25dBm/nm；SMF-28 fiber； FC/APC；Bench Top

Operation Wavelength: 1250 - 1650nm

Output power: 10mW

Connector: FC/APC

Parameter

Features

● Ultra wide spectrum

● Low spectral ripple

● Power stability

Specifications

Optical parameters	Unit	Type	remarks
Spectral range	nm	1250~1650
Output optical power	mW	>10	Non adjustable

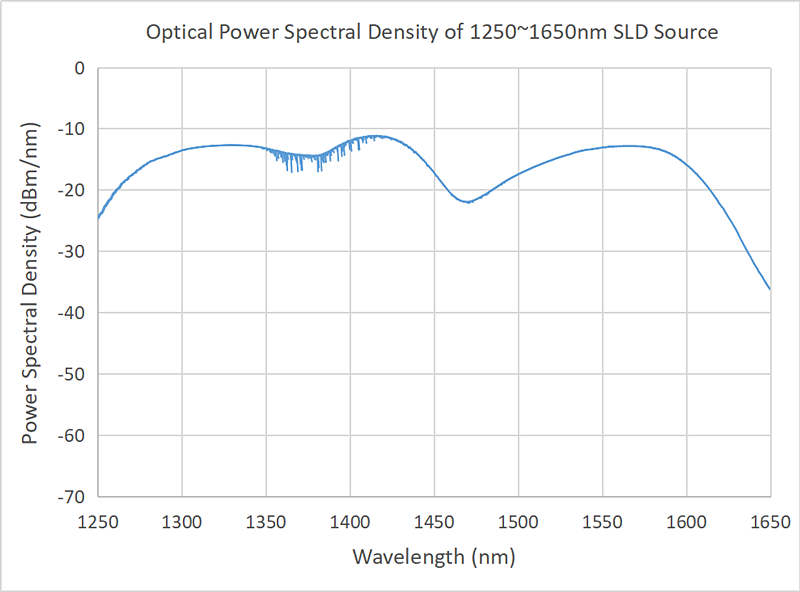

Spectral power density	dBm/nm	≥-25
Spectral ripple	dB	<0.2
Short term stability (15 minutes)	dB	≤ ±0.02	equal≤±0.5%
Long term stability (8 hours)	dB	≤ ±0.05	equal≤±1.2%
Degree of polarization DOP	dB	≤ 0.2
Output pigtail type	-	SMF-28 fiber
Pigtail connect type	-	FC/APC

Electrical and environmental parameters	Bench Top	Modular
Control mode	button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Application

● Optical fiber sensing

● medical imaging

● Optical fiber device test

Ordering Info

Ordering information / model

SLD

Spectral range

power spectral density (dBm/nm)

Packaging form

2565=1250~1650nm

25=-25dBm/nm

B= Bench Top

M= Modular
