The 1060nm band ASE broadband light source is based on Ytterbium doped fiber and semiconductor pumped laser. The spectrum covers 1030 ~ 1080nm, and can also be extended to 1010nm and 1100nm bands. At the same time, it has high output power and good flatness. It can be used for optical fiber device testing, FBG grating production, etc.

Product model

1060nm ASE Broadband Light Source

ASE-1060-10-SM-B

Operation Wavelength 1060nm；Output power 10mW；Hi 1060，FC/APC；Bench Top

Operation Wavelength: 1060nm

Output power: 10mW

Connector: FC/APC

Parameter

Features

● Spectral flatness

● Power adjustable

● High stability output power

Specifications

Optical parameters	Unit	Type	remarks

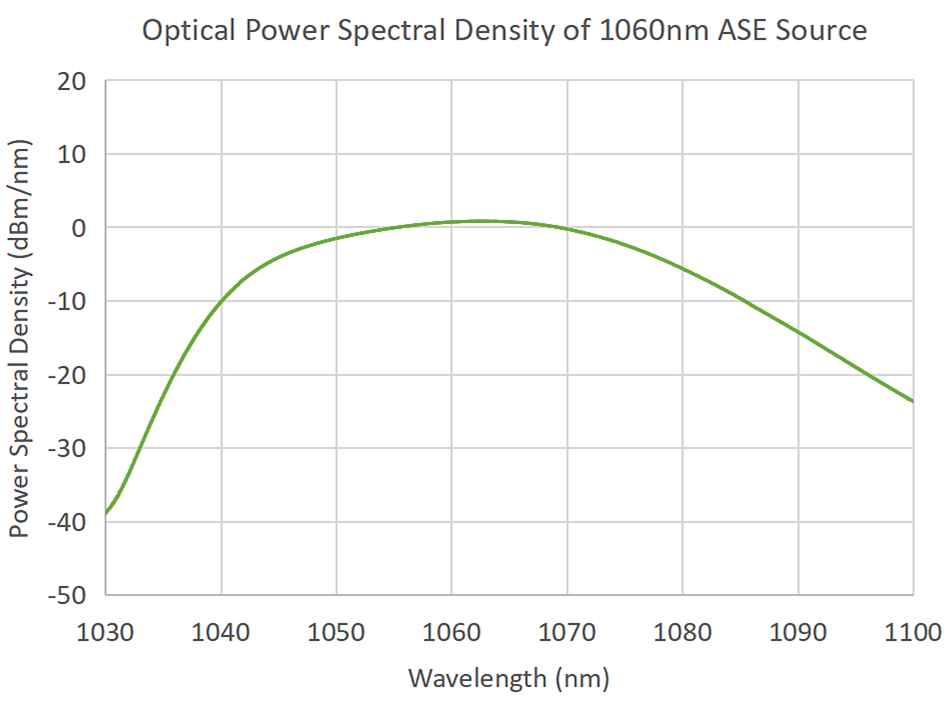

Spectral range	nm	1010、1030~1080、1015	50nm@10dB
Output optical power	mW	10/20/30/50/100
Power regulation range (optional function)	dB	10%~100%	The spectral flatness remains unchanged during adjustment
Spectral flatness	dB	10
Output isolation	dB	>35
Short term stability (15 minutes)	dB	≤ ±0.02	equivalent≤±0.5%
Long term stability (8 hours)	dB	≤ ±0.05	equivalent≤±1.2%
Degree of polarization DOP	dB	≤ 0.2
Output pigtail type	-	Hi 1060 Single mode fiber /PM980 Polarization maintaining fiber
Pigtail connect type	-	FC/APC

Electrical and environmental parameters	Bench Top	Modular
Control mode	button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Application

● Optical fiber sensing

● Medical imaging

● Optical fiber device test

Ordering Info

Ordering information / model

ASE

Spectral range

Output power (mW)

*Power adjustable (optional)

Output pigtail type

Packaging form

1010/1060/1150

10/20/30/50/100

*T

SM= Single mode fiber

PM= Polarization maintaining fiber

B= Bench Top

M= Modular
