ASE & SLD

Fiber ASE broadband light source belongs to incoherent light source, which is the spontaneous emission generated by erbium-doped quartz fiber pumped by semiconductor laser. At the same time, spectral flattening technology is introduced to realize broadband flattening spectrum. The light source wavelength covers the L-band, and the spectral flatness is better than 3dB. It is output through single-mode fiber or polarization maintaining fiber, which is suitable for optical fiber sensing and other applications.

Product model

200mW C+L band ASE Broadband Light Source

ASE-CL-200-T-SM-M

Operating wavelength 1528~1603nm, Output power 200 mW, Spectral Width ≥75nm@3dB, SMF-28, FC/APC

Central wavelength: C+L Band

Output power: 200mW

100mW C+L band ASE Broadband Light Source

ASE-CL-100-T-SM-M

Operating wavelength 1528~1603nm, Output power 100 mW, Spectral Width ≥75nm@3dB, SMF-28, FC/APC

Central wavelength: C+L Band

Output power: 100mW

50mW C+L band ASE Broadband Light Source

ASE-CL-50-T-SM-M

Operating wavelength 1528~1603nm, Output power 50 mW, Spectral Width ≥75nm@3dB, SMF-28, FC/APC

Central wavelength: C+L Band

Output power: 50mW

20mW C+L band ASE Broadband Light Source

ASE-CL-20-T-SM-M

Operating wavelength 1528~1603nm, Output power 20 mW, Spectral Width ≥75nm@3dB, SMF-28, FC/APC

Central wavelength: C+L Band

Output power: 20mW

10mW C+L band ASE Broadband Light Source

ASE-CL-10-T-SM-M

Operating wavelength 1528~1603nm, Output power 10 mW, Spectral Width ≥75nm@3dB, SMF-28, FC/APC

Central wavelength: C+L Band

Output power: 10mW

Parameter

Features

● Flattened Optical Spectrum

● Easy Operation

● Excellent Stability of Power

Specifications

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1528~1603	≥75nm@3dB, C+L band
Total Output Power	mW	10/20/50/100/200
Power Turning Range	-	10%~100%	*Optional
Spectral Flatness	dB	≤3	*
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28/PM1550
Fiber connector	-	FC/APC

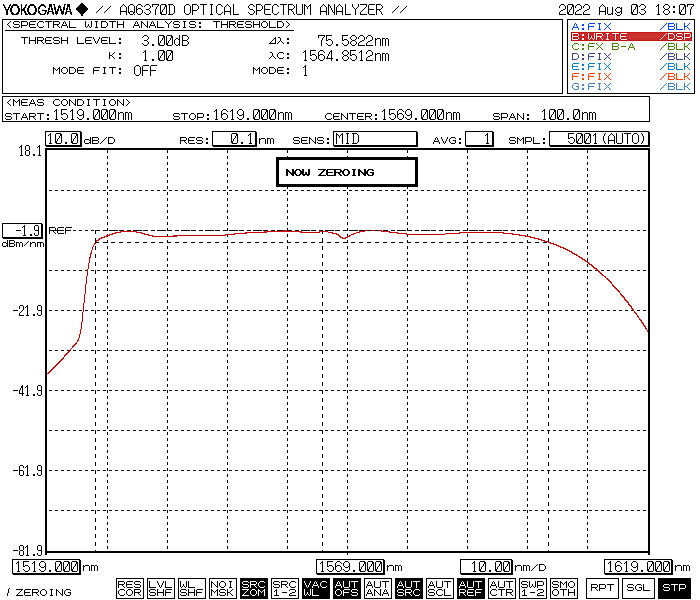

Spectrum

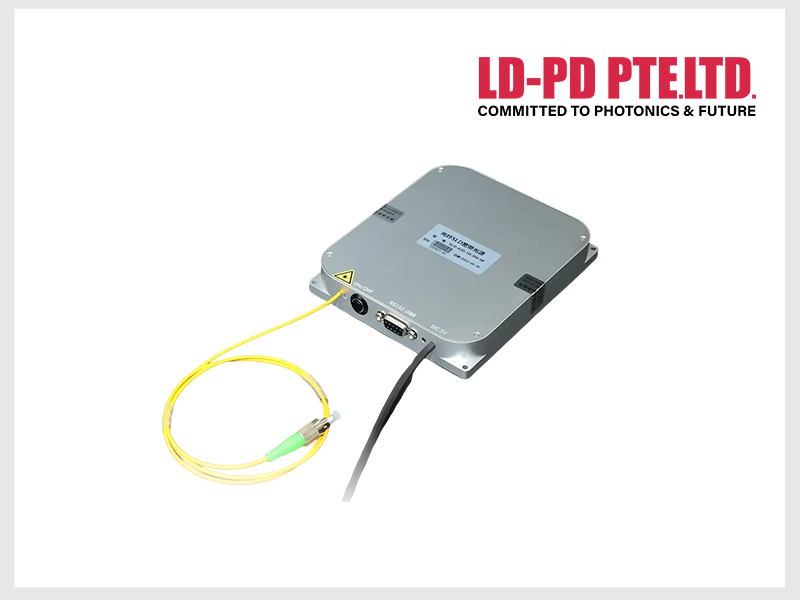

General Parameters	Bench-top	Module
Control Function	Key lock switch, Push button	RS232 serial Communication
Remote control Port	Optional	DB9 Female
Power Supply	AC100~240V,<30W	DC5V,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Application

● Fiber Sensing

● Medical Imaging

● Test and Measurement

Ordering Info

ASE

Wavelength

Output Power(mW)

*Power Tunable

Fiber

Packaging

CL=C+L band

10/20/50/100/200

*T (optional)

SM=SMF-28

PM=PM1550

M=Module

B=Benchtop
