The PL-DFB-1018-A-A81 1018nm DFB laser diode module made by LD-PD is a cost effective, highly coherent laser source. The DFB laser diode chip is packaged in an industry standard hermetically sealed 14 pin butterfly package with TEC and PD Built in.

Product model

1018nm DFB SM Laser diode

PL-DFB-1018-A-A81-SA

Central wavelength 1018nm, Output power 40mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, HI1060, FC/APC

Central wavelength: 1018nm

Output power: 25mW

Package: 14pin - BF

1018nm DFB PM Laser diode

PL-DFB-1018-A-A81-PA

Central wavelength 1018nm, Output power 40mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, PM980 Fiber, FC/APC

Central wavelength: 1018nm

Output power: 25mW

Package: 14pin - BF

Parameter

Features

● Narrow Linewidth < 2MHz

● Excellent wavelength control and stability

● Industry Standard 14 pin Butterfly package

● Mode-Hop free tuning

● Excellant reliability

● Customer specific wavelengths available

Laser Specifications

Electrical/Optical Characteristics(Tsub=25°C, CW bias unless stated otherwise)

Parameter	Symbol	Min	Typ	Max	Unit
Centre Wavelength	λ	1017.5	1018	1018.5	nm
Side Mode Suppression Ratio	SMSR	30	40		dB
Threshold Current	Ith		20	30	mA
Operating Current	Iop		180	250	mA
Chip output Power	Pf	25	30	35	mW
Quantum Efficiency	η	0.08	0.12		mW/mA
Current Tuning Coefficient	∆λ/∆I		0.015		nm/mA
Temperature Tuning Coefficient	∆λ/∆T		0.12		nm/K
Forward Voltage	Vf		1.3	2	V
Thermistor Resistance	RT	9.5	10	10.5	KΩ
Thermistor Temp. Coefficient			-4.4		%/°C
Connector	FC/APC

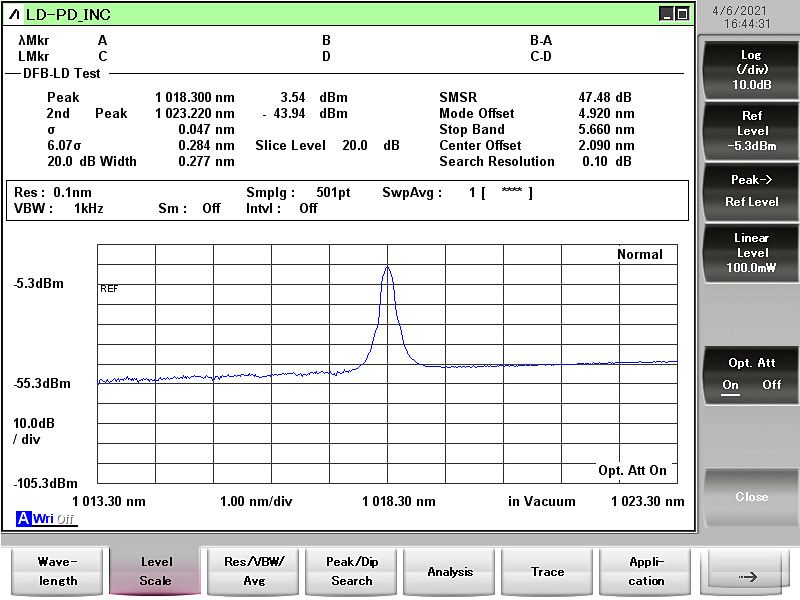

Spectrum

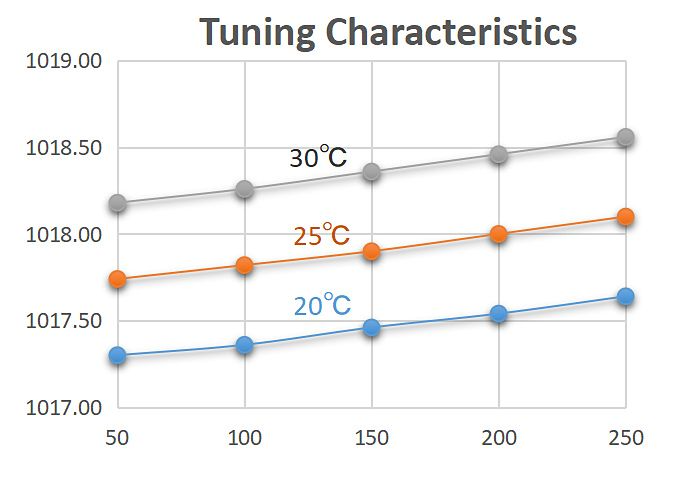

Tuning Characteristics

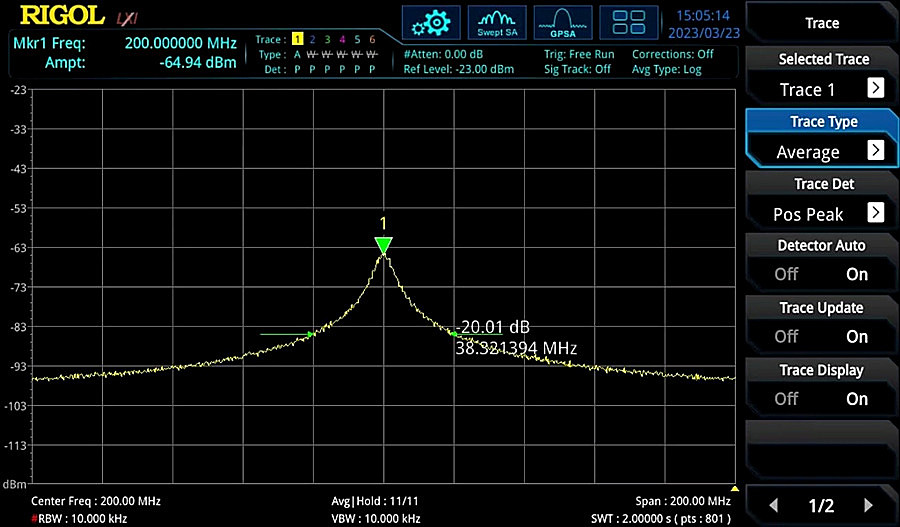

DFB Linewidth Testing Result

PT Linewidth.jpg

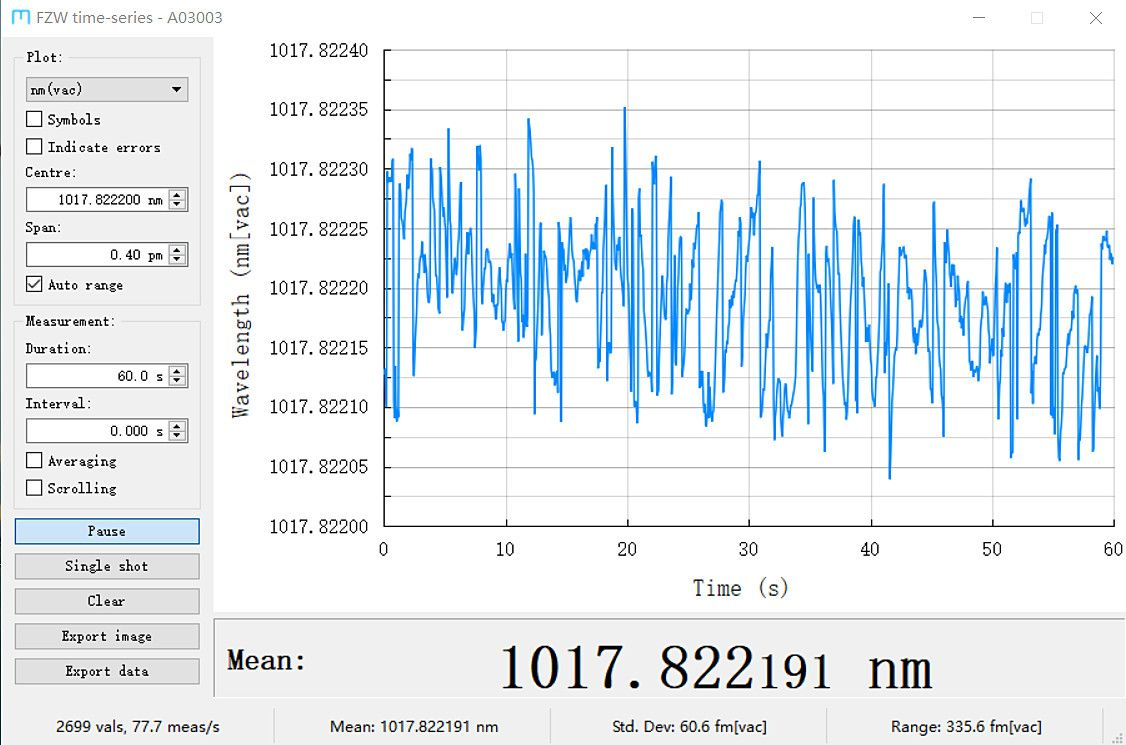

Wavelength Stability


Package Size

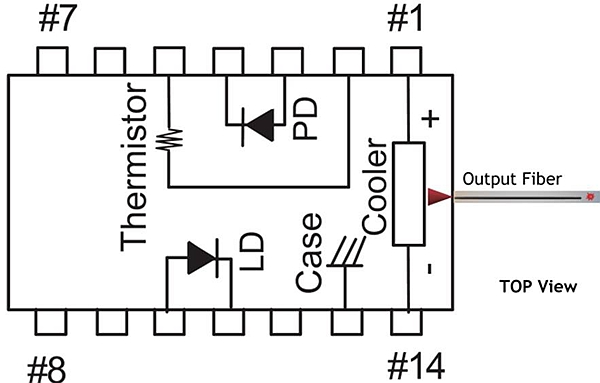

Pin definition


1	Thermoelectric Cooler (+)	8	N/C
2	Thermistor	9	N/C
3	PD Monitor Anode (-)	10	Laser Anode (+)
4	PD Monitor Cathode (+)	11	Laser Cathode (–)
5	Thermistor	12	N/C
6	N/C	13	Case Ground
7	N/C	14	Thermoelectric Cooler (–)

Absolute Maximum Ratings

Item	Unit	Min	Typ	Max
Case Temperature	℃	-5	25	70
Chip Temperature	℃	+10	25	40
Operating Current	mA	0	180	250
Forward Voltage	V	0.8	1.2	2.1
TEC Current	A	-	1.2	1.2
Reverse Voltage（LD）	V	-	-	2.0
Reverse Voltage(PD)	V	-	-	20

Application

● Tunable diode laser absorption spectroscopy

● Seed laser

● Fiber laser

Ordering Info

PL-DFB- □□□□-☆-A8▽- XX

□□□□: Wavelength

0976: 976nm

1018: 1018nm

1532: 1532nm

1392: 1392nm

1512: 1512nm

1567: 1567nm

*****

1653.7: 1653.7nm

☆ : Output Power

A: 40mW

B: 70mW

▽: Wavelength Tolerance

1: ±1nm

2: ±2nm

XX: Fiber and Connector Type

SA=HI1060+ FC/APC

SP=HI1060+ FC/PC

PA=PM980 Fiber+ FC/APC

PP=PM980 Fiber+ FC/PC
