DFB Light Source

4.56um High power consumption table DFB-QCL Laser is a tunable CW laser developed by LD-PD Inc.The Wavelength tuning range can up to 30nm, Collimation output power more than 150mW.

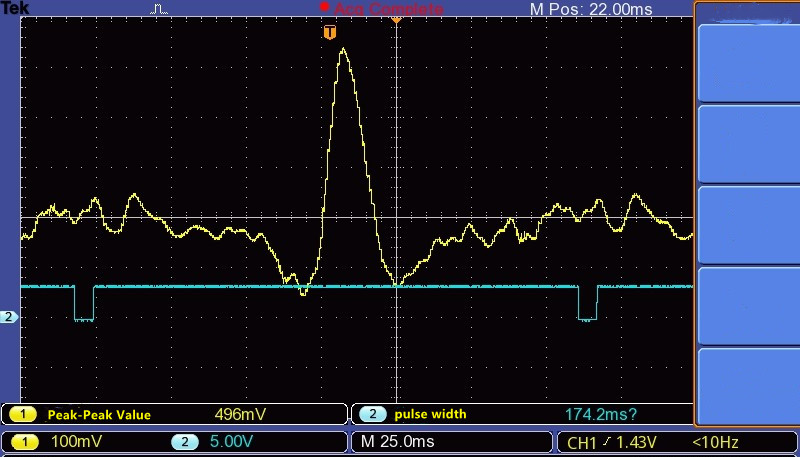

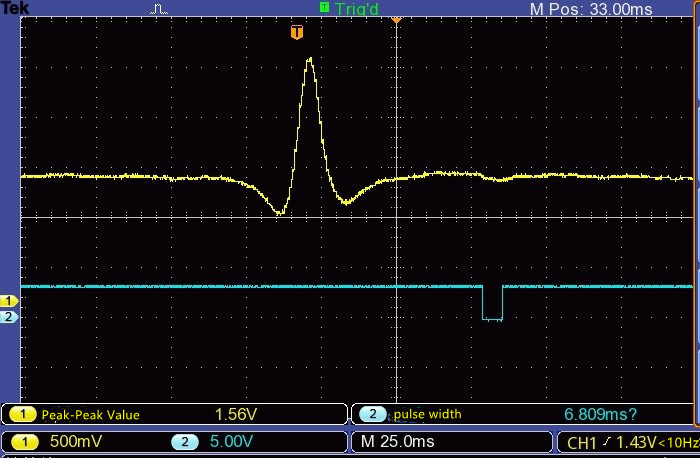

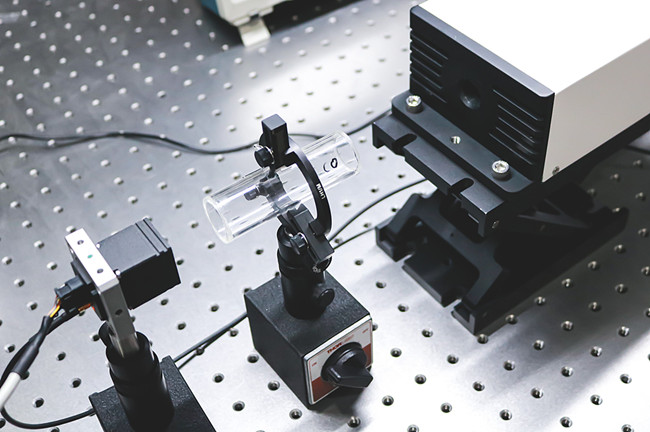

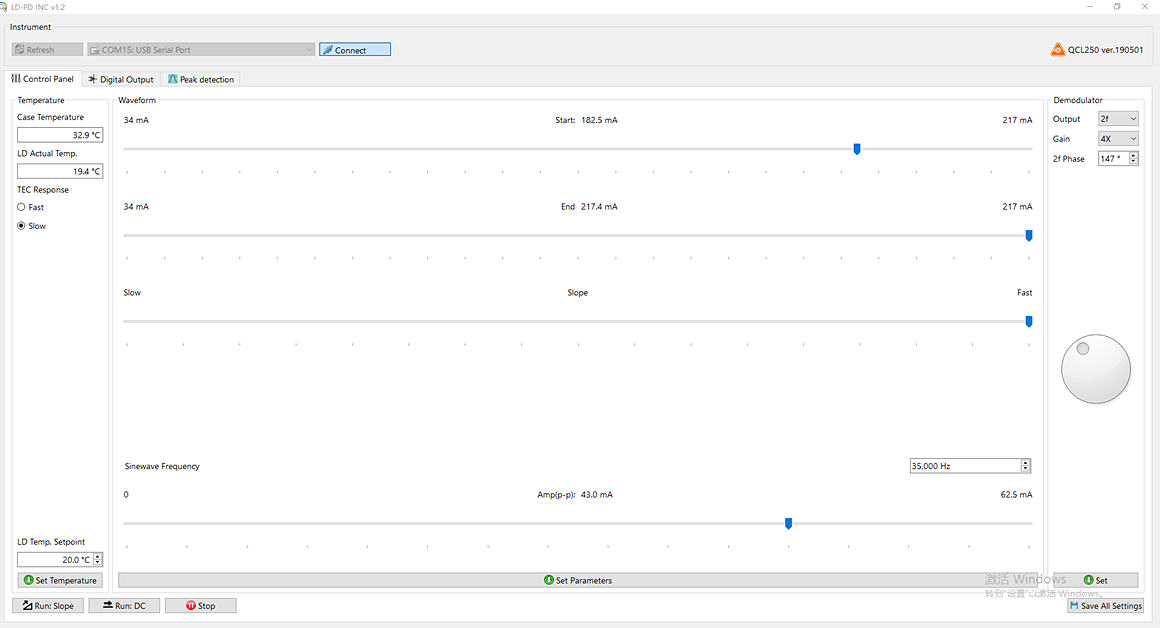

This module can solve problems in areas such as Gas Sensing.Our DFB-QCL Laser module integrated temperature control, drive.We also build in our Lockin amplifier inside.This Software can also be used to control the working temperature and current of the laser, so that the laser can work steadily and maintain the accuracy of the measurement results.The FPGA is added inside the laser module to facilitate the processing of gas concentration measurement.1f and 2f signal output is possible from BNC Interface and The gain value is optional for our customer.

Product model

4.56um low power consumption DFB-QCL Laser Module

MIR-QCL- W4560 -1-DFB-100

Central wavelength 4.56um, Output Power 100mW, Spectrum width <1MHz, SMSR 30dB, Dimension(mm) 340(L) × 240(W) × 100(H)

Central wavelength: 4500nm

Output power: 100mW

Spectral Width: 1 MHz

Laser Type: QCL-DFB

Parameter

Features

● Low power consumption, high power

● Lock-in Amplifier included

● High SMSR

● Software control

● Small size

Specifications

Product parameter

Parameters	unit	Specs
Parameters	unit	Min	Type	Max
		4.56um DFB-QCL
Output power	mW		100
Peak operating wavelength	um		4.56
Spectrum Width（FWHM）	MHz		1MHz
SMSR	dB	30
Output ISO	dB		30
Wavelength temperature coefficient	nm/℃		0.6
Wavelength current coefficient	nm/mA		0.2

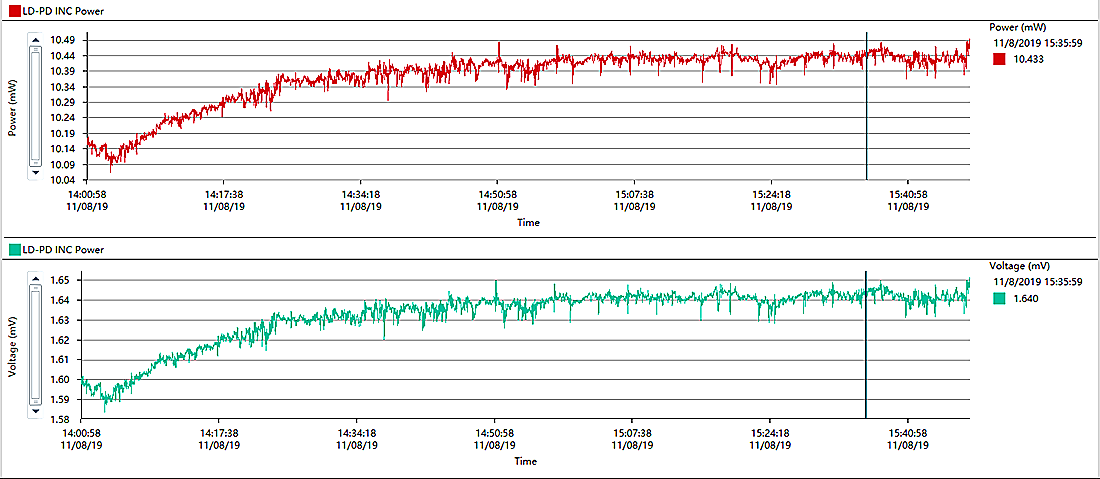

Output power stability（8 hours）	%		±1	±4
Power Tuning Range	%	0		100
TEC Working temperature	℃	0		50
power supply voltage	VAC	100	220	240
Working temperature	℃	0		90
Storage temperature	℃	-40		85
size	mm	340(L)×240(W)×100(H)
