DFB Light Source

5.26um low power consumption table DFB-QCL Laser is a tunable CW laser developed by LD-PD Inc.The Wavelength tuning range can up to 30nm, Collimation output power more than 10mW.

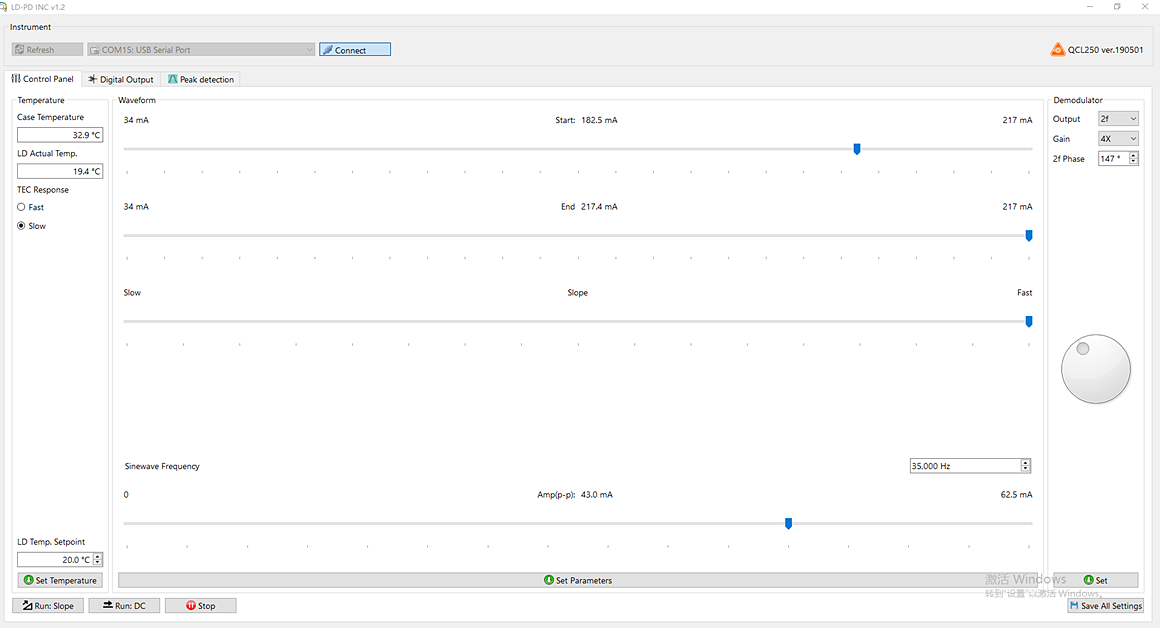

This module can solve problems in areas such as Gas Sensing.Our DFB-QCL Laser module integrated temperature control, drive.We also build in our Lockin amplifier inside.This Software can also be used to control the working temperature and current of the laser, so that the laser can work steadily and maintain the accuracy of the measurement results.The FPGA is added inside the laser module to facilitate the processing of gas concentration measurement.1f and 2f signal output is possible from BNC Interface and The gain value is optional for our customer.

Product model

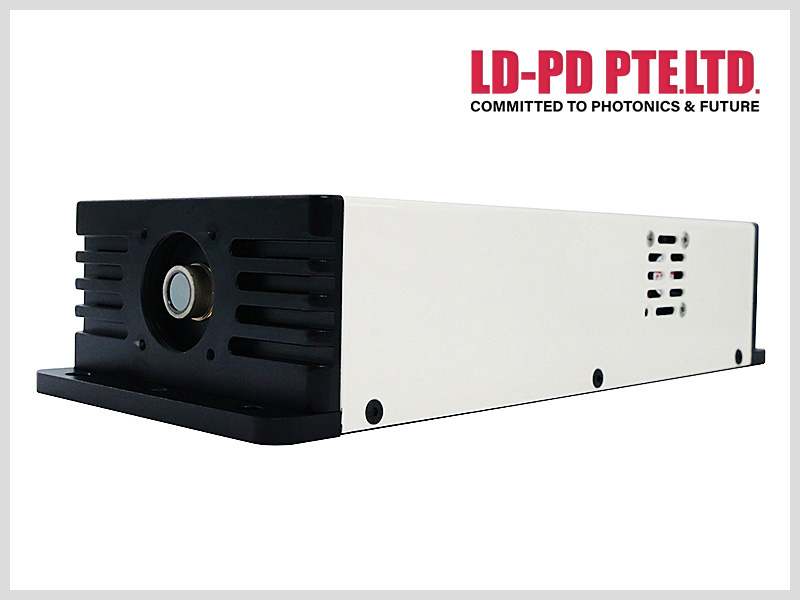

5.26um low power consumption DFB-QCL Laser Module

MIR-QCL- W5260 -1-DFB-010

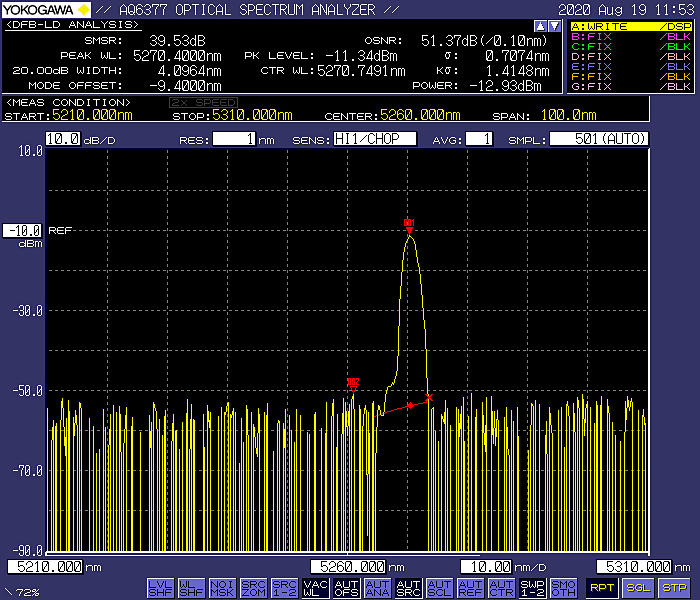

Central wavelength 5.26um, Output Power 10mW, Spectrum width <1MHz, SMSR 30dB, Dimension(mm) 340(L) × 240(W) × 100(H)

Central wavelength: 5260nm

Output power: 10mW

Spectral Width: 1 MHz

Laser Type: QCL-DFB

Parameter

Features

● Low power consumption, high power

● Lock-in Amplifier included

● High SMSR

● Software control

● Small size

Specifications

Product parameter

Parameters	unit	Specs
Parameters	unit	Min	Type	Max
		5.26um DFB-QCL
Output power	mW		10
Peak operating wavelength	um		5.26
Spectrum Width（FWHM）	MHz		<1
SMSR	dB	20
Output ISO	dB		30

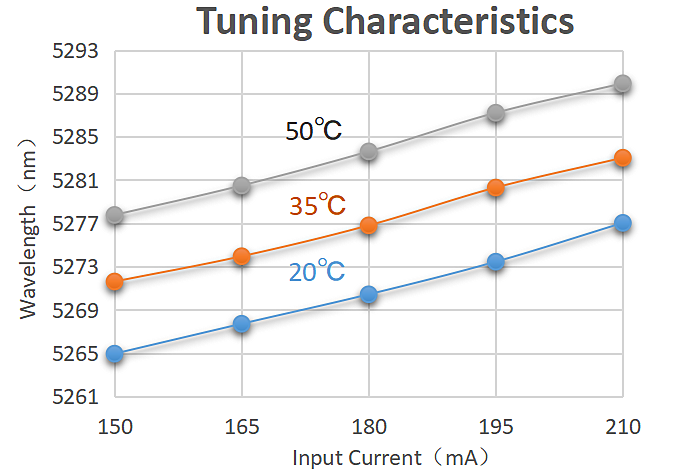

Wavelength temperature coefficient	nm/℃		0.6
Wavelength current coefficient	nm/mA		0.2

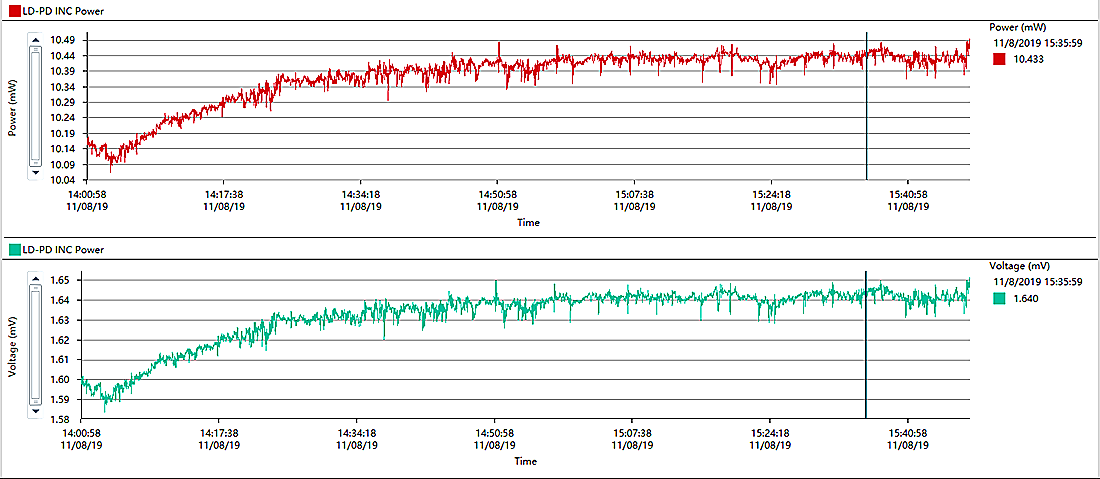

Output power stability（8 hours）	%		±1	±4
Power Tuning Range	%	0		100
TEC Working temperature	℃	0		50
power supply voltage	VAC	100	220	240
Working temperature	℃	0		90
Storage temperature	℃	-40		85
size	mm	340(L)×240(W)×100(H)
