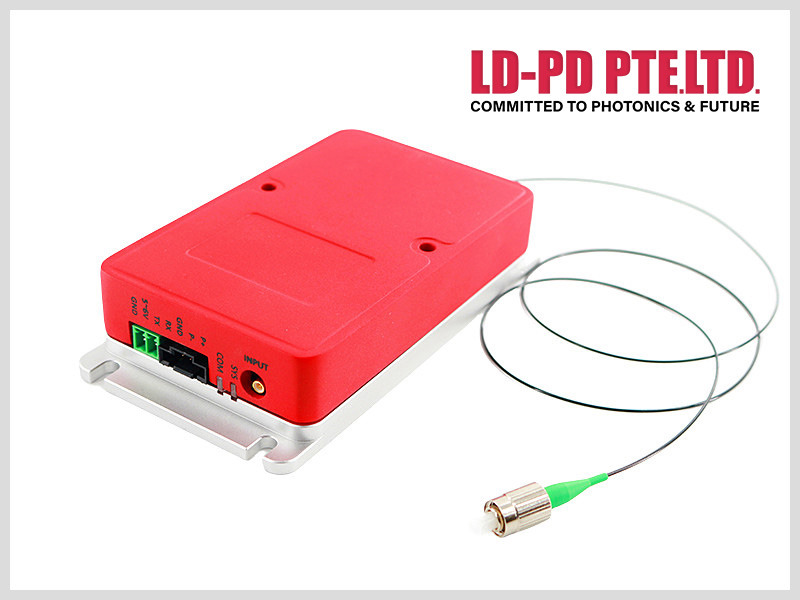

This narrow linewidth DFB laser module from LD-PD INC has excellent performance and excellent reliability (compliant with Telcordia GR-486 specification). Up to 100mW output power, very low relative intensity noise (RIN), ultra-low phase noise and narrow linewidth, high wavelength stability and low frequency jitter.
Our low noise and narrow linewidth make this semiconductor optical solution ideally suited for a variety of applications where accuracy, lifetime reliability under harsh field conditions and high resolution are critical, such as for fiber optic and solid-state lasers. Seed source, second harmonic generation (SHG), optical parametric oscillator (OPO), laser spectroscopy, lidar and other precision metrology applications.
Product model
| 1550nm 100KHz level ultra-narrow line width high power DFB module |
SCL0-DFB-1550-G-A81-L01-M0-PA | Central Wavelength 1550nm; Output Power 80mW; Narrow Linewidth < 100KHz; Tolerance ±1nm; PM Fiber; FC/APC | Central wavelength: 1550nm Output power: 80mW Linewidth: ＜100KHz |
| 1550nm 100KHz level ultra-narrow line width high power DFB module |
SCL0-DFB-1550-G-A81-L01-M0-SA | Central Wavelength 1550nm; Output Power 80mW; Narrow Linewidth < 100KHz; Tolerance ±1nm; SMF-28E; FC/APC | Central wavelength: 1550nm Output power: 80mW Linewidth: ＜100KHz |
Parameter
Characteristics
single longitudinal mode
● Ultra-low phase noise and relative intensity noise (RIN)
● Low sensitivity to vibration and noise
● Narrow linewidth (<100 kHz), long coherence length
● 1530 nm-1565 nm, ITU-T DWDM wavelength or customized
● Guaranteed no mode jump within operating life and temperature range
Wavelength tunable
● Excellent wavelength stability over lifetime and temperature range
● Excellent SMSR
● SMF or PMF pigtail options
● 0 to 70°C operating temperature
● Compliant with Telcordia GR-468 and RoHS certification
Laser Specifications
Parameter | Value | Unit |
Output Power | 10-100 | mW |
Center wavelength（ITU grid and custom） | 1535-1590,1635-1685 | nm |
Thermal wavelength tuning range | 30 | pm |
Relative intensity noise，≥500KHz | shot noise limit | dB/Hz |
Polarization extinction ratio (polarization maintaining fiber) | ≥20 | dB |
Frequency modulation bandwidth (high frequency) | DC-10 | MHz |
Operating temperature | 0 ~ +70 | ℃ |
Optical isolation | ≥40 | dB |

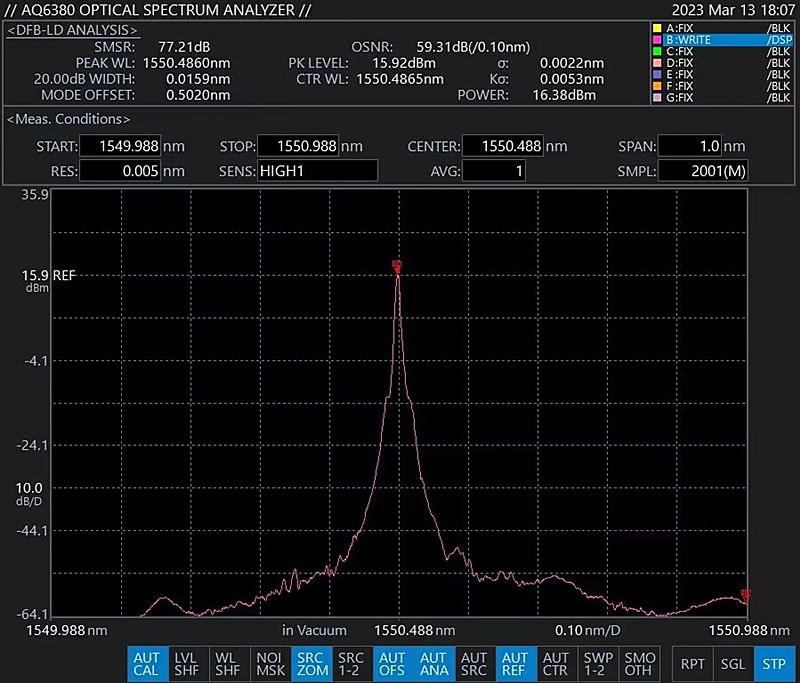

Test spectrogram

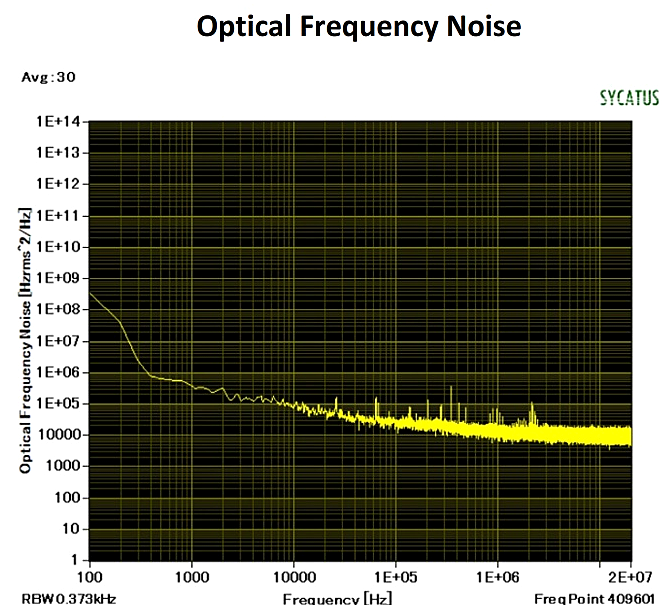

Phase noise curve

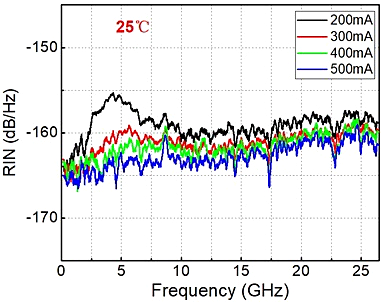

Intensity noise curve

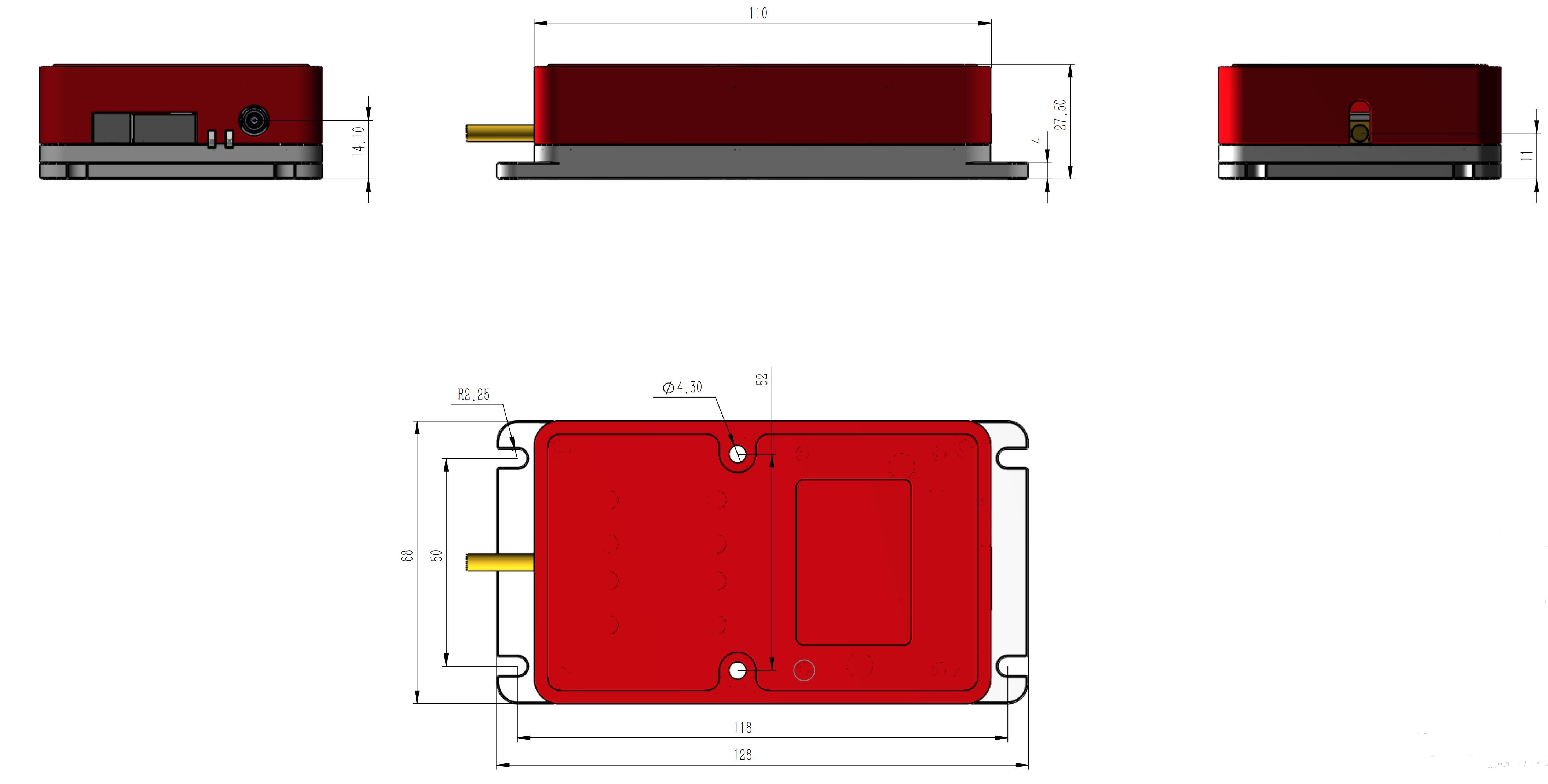

Dimension
Unit (mm)
Application
● Acoustic and seismic sensing
● Defense and Security
● Oil and gas exploration and production
● Lidar and remote sensing
● Interferometric fiber optic sensing
● Metrology
● RF and Microwave Photonics
● coherent communication

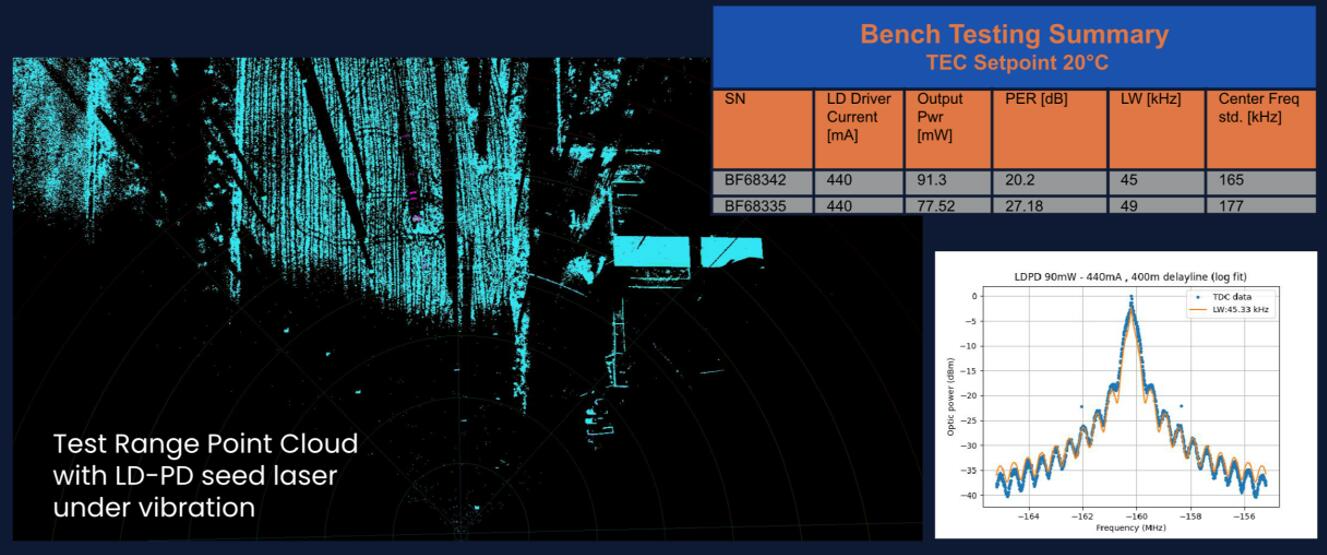

FCMW Lidar Testing
Ordering Info
SCL0-DFB-□□□□-☆-A8▽-L□□-M□-XX
□□□□: Wavelength
1018:1018nm
1530.33:1530.33nm
1550.12: 1550.12nm
*****
1700: 1700nm
1735:1735nm
1742:1742nm
☆: Output Power
A: 10mW
B: 20mW
C:30mW
D:40mW
E:50mW
F:60mW
G:80mW
H:100mW
▽: Wavelength Tolerance
1: ±1nm
2: ±2nm
3:±10nm
L□□:Linewidth
01: Grade 1 ≤100KHZ
02: Grade 2 ≤200KHZ
03: Grade 3 ≤500KHZ
04: Grade 4 ≤3000KHZ
M□:Modulation
0：CW
1:External Modulation
XX: Fiber and Connector Type
SA=SM Fiber+ FC/APC
SP=SM Fiber+ FC/PC
PP=PM Fiber+ FC/PC
PA=PM Fiber+ FC/APC
parameter | Grade 1 | Grade 2 | Grade 3 | Grade 4 | Unit |
Linewidth | ≤100 | ≤200 | ≤500 | ≤3000 | KHz |
Grade 1 （Linewidth ≤100KHZ）Table
Wavelength（nm） | Linewidth（KHZ） | Tuning Range(nm) | Power(mW) |
1535 | Typical 75KHZ | 2-3 | 80-100mW |
1540 | Typical 75KHZ | 2-3 | 80-100mW |
1545 | Typical 75KHZ | 2-3 | 80-100mW |
1550 | Typical 75KHZ | 2-3 | 80-100mW |
1555 | Typical 75KHZ | 2-3 | 80-100mW |
1560 | Typical 75KHZ | 2-3 | 80-100mW |
1565 | Typical 75KHZ | 2-3 | 80-100mW |
1570 | Typical 75KHZ | 2-3 | 80-100mW |
1575 | Typical 75KHZ | 2-3 | 80-100mW |
1580 | Typical 75KHZ | 2-3 | 80-100mW |
1585 | Typical 75KHZ | 2-3 | 80-100mW |
1590 | Typical 75KHZ | 2-3 | 80-100mW |
1635 | Typical 95KHZ | 2-3 | 80-100mW |
1640 | Typical 95KHZ | 2-3 | 80-100mW |
1650 | Typical 95KHZ | 2-3 | 80-100mW |
1660 | Typical 95KHZ | 2-3 | 80-100mW |
1670 | Typical 95KHZ | 2-3 | 80-100mW |
1680 | Typical 95KHZ | 2-3 | 80-100mW |
We can provide any narrow linewidth DFB module with center wavelength between 1535-1590nm and 1635-1685nm
Grade 2 （Linewidth≤200KHZ）Table
Wavelength（nm） | Linewidth（KHZ） | Tuning Range(nm) | Power(mW) |
1260 | Typical 170KHZ | 2-3nm | 40-60mW |
1270 | Typical 170KHZ | 2-3nm | 40-60mW |
1280 | Typical 170KHZ | 2-3nm | 40-60mW |
1290 | Typical 170KHZ | 2-3nm | 40-60mW |
1300 | Typical 170KHZ | 2-3nm | 40-60mW |
1310 | Typical 170KHZ | 2-3nm | 40-60mW |
1320 | Typical 170KHZ | 2-3nm | 40-60mW |
1520 | Typical 150KHZ | 2-3nm | 40-50mW |
1530 | Typical 150KHZ | 2-3nm | 40-50mW |
1540 | Typical 150KHZ | 2-3nm | 40-50mW |
........* | Typical 150KHZ | 2-3nm | 40-50mW |
1700 | Typical 150KHZ | 2-3nm | 40-50mW |
1735 | Typical 150KHZ | 2-3nm | 40-50mW |
1742 | Typical 150KHZ | 2-3nm | 40-50mW |
We can provide any narrow linewidth DFB module with center wavelength between 1520-1700nm
Grade 4（Linewidth ≤3MHZ）Table
Wavelength（nm） | Linewidth（MHZ） | Tuning Range(nm) | Power(mW) |
760 | Typical 3MHZ | 2-3nm | 10-20mW |
972 | Typical 3MHZ | 2-3nm | 40-60mW |
976 | Typical 3MHZ | 2-3nm | 40-60mW |
980 | Typical 3MHZ | 2-3nm | 40-60mW |
1018 | Typical 3MHZ | 2-3nm | 40-60mW |
1030 | Typical 3MHZ | 2-3nm | 40-60mW |
1038 | Typical 3MHZ | 2-3nm | 40-60mW |
1050 | Typical 3MHZ | 2-3nm | 40-60mW |
1064 | Typical 3MHZ | 2-3nm | 40-60mW |
1083 | Typical 3MHZ | 2-3nm | 40-60mW |
1120 | Typical 3MHZ | 2-3nm | 40-60mW |
...... | Typical 2MHZ | 2-3nm | 20-30mW |
1700 | Typical 2MHZ | 2-3nm | 20-30mW |
1735 | Typical 2MHZ | 2-3nm | 20-30mW |
1742 | Typical 2MHZ | 2-3nm | 20-30mW |
1814 | Typical 3MHZ | 2-3nm | 2-3mW |
1850 | Typical 3MHZ | 2-3nm | 2-3mW |
1854.1 | Typical 3MHZ | 2-3nm | 2-3mW |
1908 | Typical 3MHZ | 2-3nm | 2-3mW |
1910 | Typical 3MHZ | 2-3nm | 2-3mW |
1920 | Typical 3MHZ | 2-3nm | 2-3mW |
1940 | Typical 3MHZ | 2-3nm | 2-3mW |
1945 | Typical 3MHZ | 2-3nm | 2-3mW |
1947 | Typical 3MHZ | 2-3nm | 2-3mW |
1950 | Typical 3MHZ | 2-3nm | 2-3mW |
1960 | Typical 3MHZ | 2-3nm | 2-3mW |
1970 | Typical 3MHZ | 2-3nm | 2-3mW |
1980 | Typical 3MHZ | 2-3nm | 2-3mW |
1984 | Typical 3MHZ | 2-3nm | 2-3mW |
2000 | Typical 3MHZ | 2-3nm | 2-3mW |
2004 | Typical 3MHZ | 2-3nm | 6-8mW |
2040 | Typical 3MHZ | 2-3nm | 2-3mW |
2327 | Typical 3MHZ | 2-3nm | 2-3mW |
2330 | Typical 3MHZ | 2-3nm | 2-3mW |
Note：
1.We can provide DFB modules with any wavelength from 1018-1700nm
