DFB Light Source

The wavelength tuning range of the light source covers C-band and realizes continuous laser output of up to 96 wavelengths (ITU-T standard wavelength, wavelength interval of 50GHz). Integrated with adjustable filter and high gain chip, it has the characteristics of high output optical power, narrow linewidth and high wavelength accuracy. It is equipped with special drive and control circuit, high-definition color LCD screen, and upper computer software. Users can easily tune the wavelength accurately. It can be used in the fields of optical fiber link, DWDM, optical fiber testing, etc.

Product model

1270nm SM High stability DFB lightsource

DFB-L-1270-40-SM-M

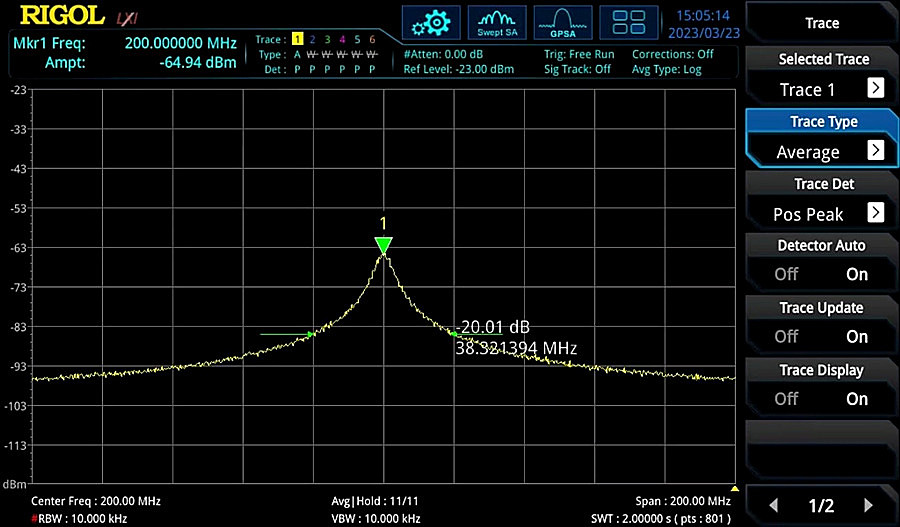

Central wavelength 1270nm, Output power 40mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, SMF-28E, FC/APC

Central wavelength: 1270nm

Output power: 40mW

Package: Module

1270nm PM High stability DFB lightsource

DFB-L-1270-40-PM-M

Central wavelength 1270nm, Output power 40mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, PM1310, FC/APC

Central wavelength: 1270nm

Output power: 40mW

Package: Module

Parameter

Features

● 2nm Tunable wavelength

● High power stability

● High SMSR

Laser Specifications

Parameters	Unit	Typ Value	Remark
Operation Wavelength	nm	1270±1

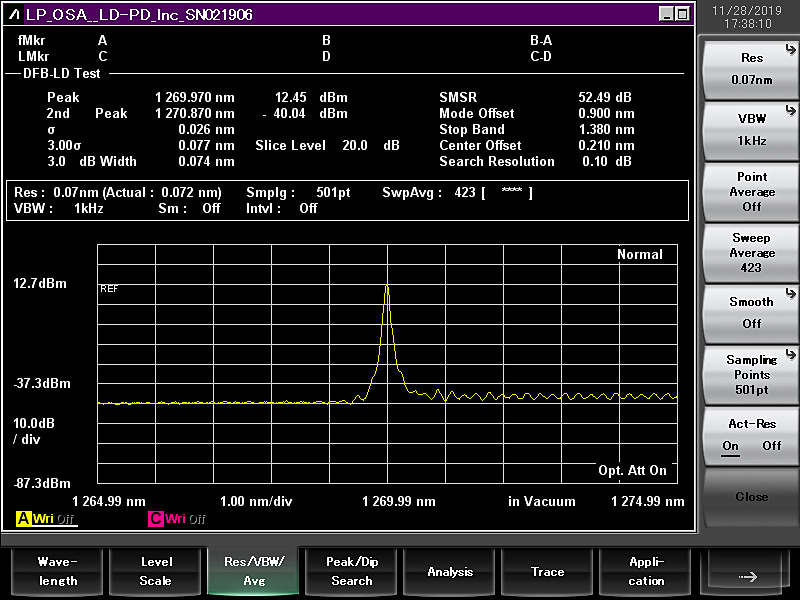

Spectrum Width	nm	≤0.1	@3dB
Output Power	mW	40

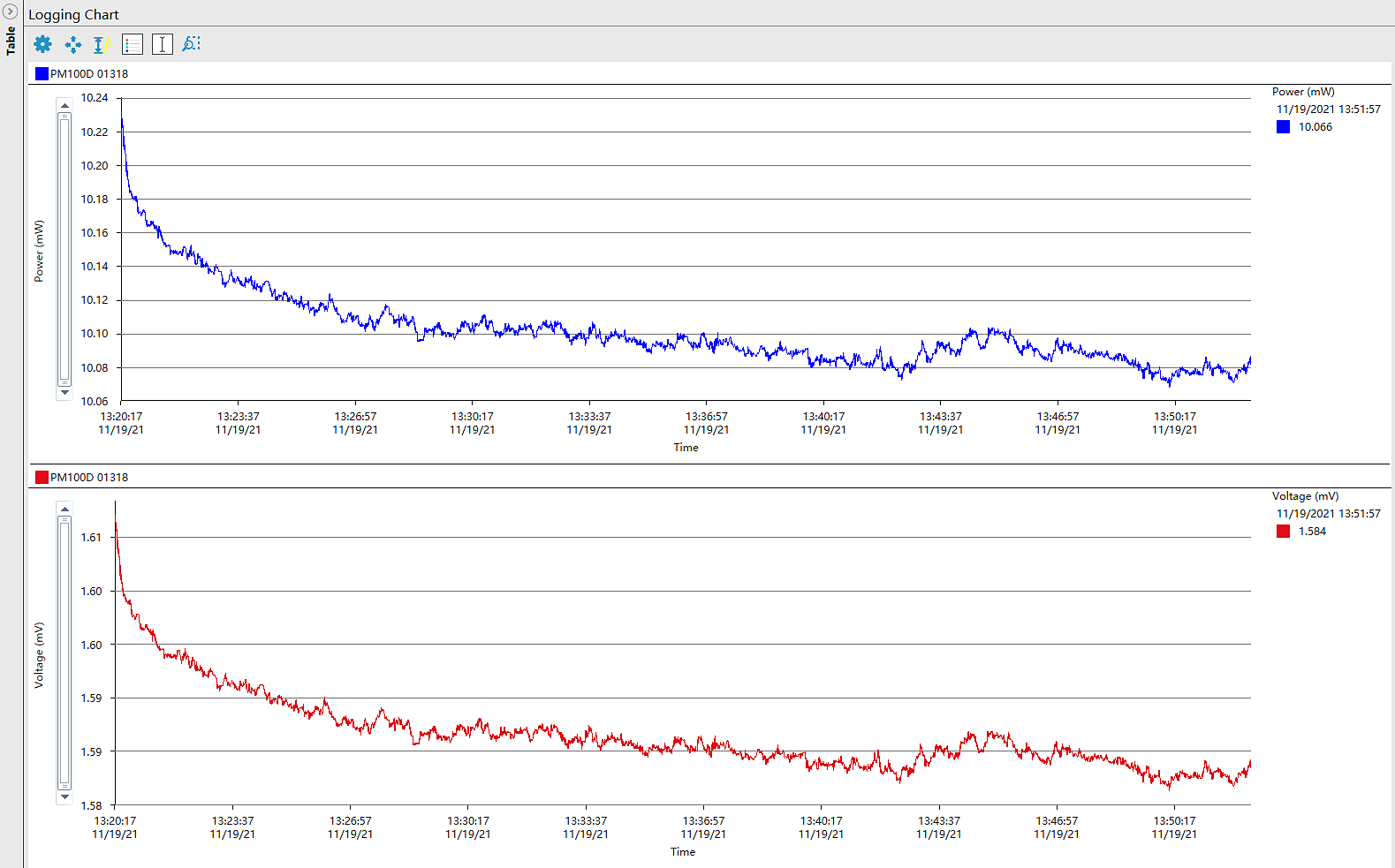

Short term Stability(15min)	dB	≤ ±0.02
Long Term Stability(8Hours)	dB	≤ ±0.05
Pigtail Type	-	SMF-28E	Optional PM1310
Connector	-	FC/APC

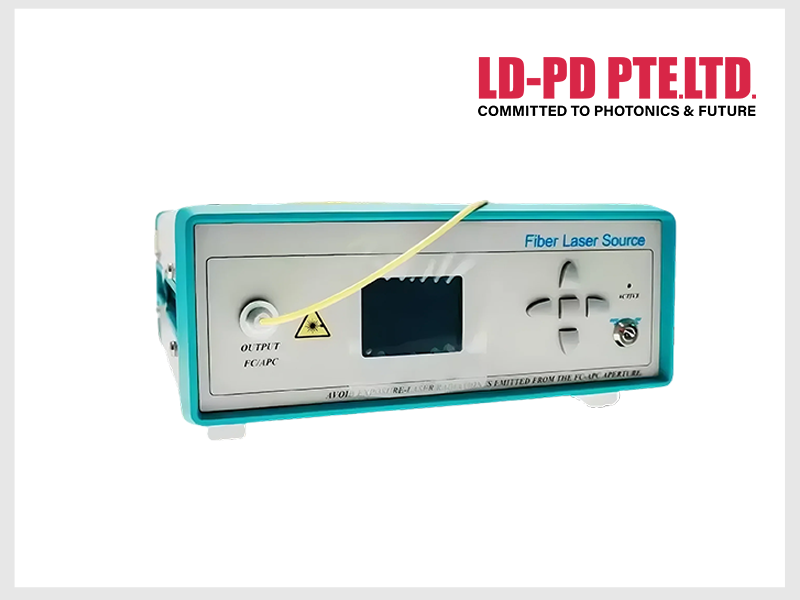

Electrical and environmental parameters	Bench Top	Modular
Control mode	button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%
