DFB Light Source

The wavelength tuning range of the light source covers C-band and realizes continuous laser output of up to 96 wavelengths (ITU-T standard wavelength, wavelength interval of 50GHz). Integrated with adjustable filter and high gain chip, it has the characteristics of high output optical power, narrow linewidth and high wavelength accuracy. It is equipped with special drive and control circuit, high-definition color LCD screen, and upper computer software. Users can easily tune the wavelength accurately. It can be used in the fields of optical fiber link, DWDM, optical fiber testing, etc.

Product model

1577nm PM High stability DFB lightsource

DFB-L-1577-30-PM-M

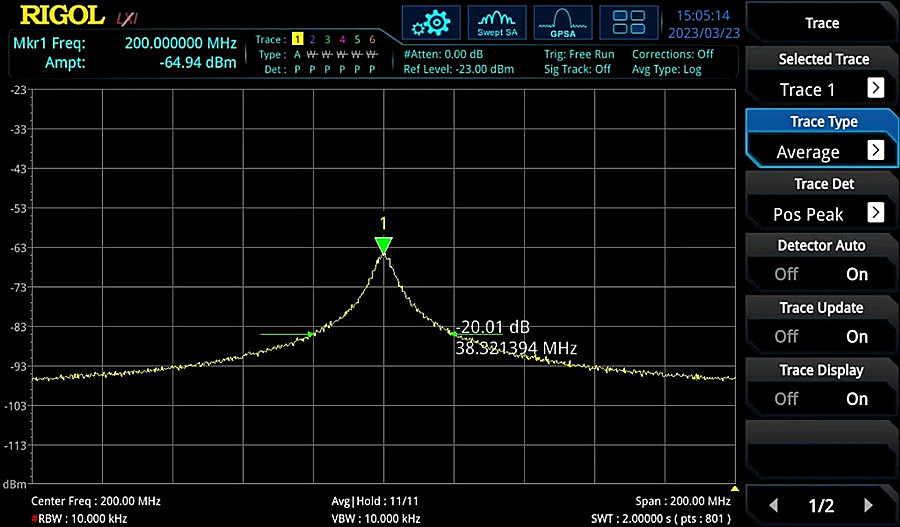

Central wavelength 1577nm, Output power 30mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, PM Fiber, FC/APC

Central wavelength: 1577nm

Output power: 30mW

Package: Module

1577nm SM High stability DFB lightsource

DFB-L-1577-30-SM-M

Central wavelength 1577nm, Output power 30mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, SMF-28E, FC/APC

Central wavelength: 1577nm

Output power: 30mW

Package: Module

Parameter

Features

● 2nm Tunable wavelength

● High power stability

● High SMSR

Laser Specifications

Electrical/Optical Characteristics (Tsub=25°C, CW bias unless stated otherwise)

Parameter	Symbol	Min	Typ	Max	Unit
Centre Wavelength	λ	1576	1577.0	1578	nm

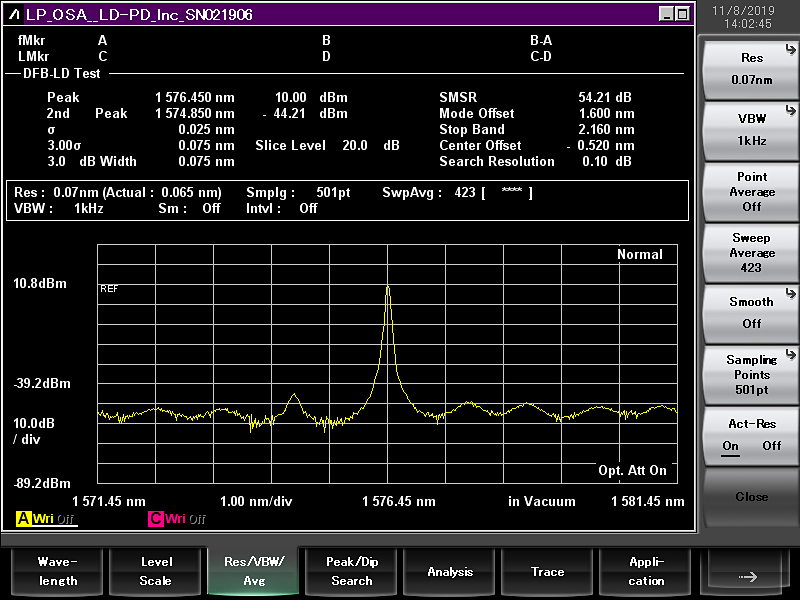

Side Mode Suppression Ratio	SMSR	30	40		dB
Threshold Current	Ith		20	30	mA
Operating Current	Iop		80	120	mA

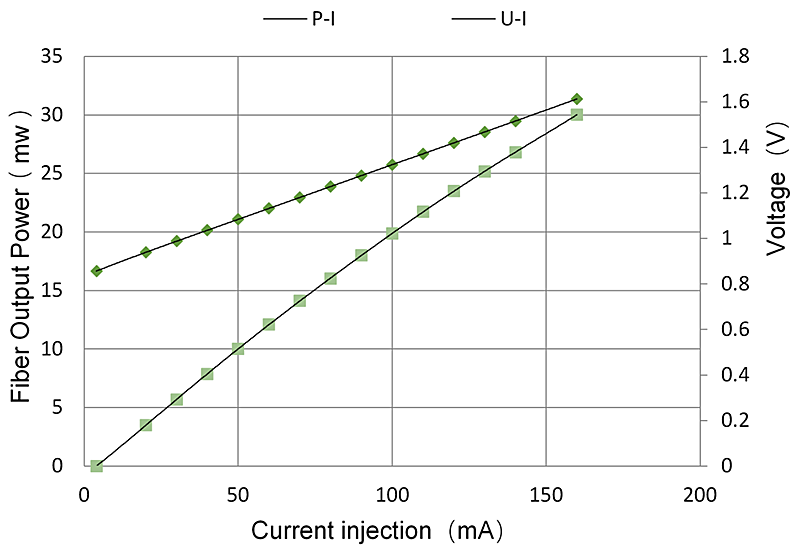

output Power	Pf	10	15	30	mW
Quantum Efficiency	η	0.08	0.12		mW/mA

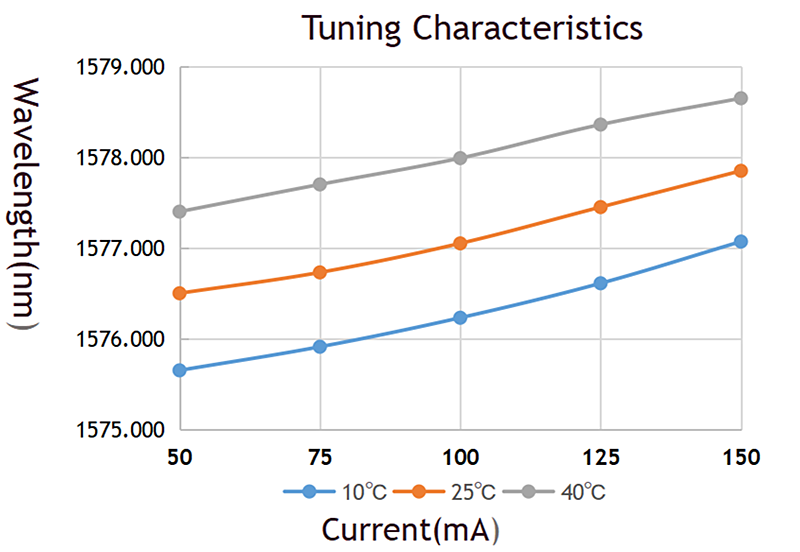

Current Tuning Coefficient	∆λ/∆I		0.015		nm/mA
Temperature Tuning Coefficient	∆λ/∆T		0.12		nm/K
Forward Voltage	Vf		1.3	2	V
Thermistor Resistance	RT	9.5	10	10.5	KΩ
Thermistor Temp. Coefficient			-4.4		%/°C
Connector	FC/APC
