MHPL-xxx high-power laser light source is based on high-performance semiconductor laser chip and 105 / 125um optical fiber coupling output. The professionally designed constant current drive and temperature control circuit ensures the safe and stable operation of the laser. Some models have wavelength locking, and the spectral stability can be better than ± 3nm. It is suitable for medical research, fiber laser pumping and other production tests. It can provide desktop or modular packaging and upper computer monitoring.

Product model

Multi Mode Fiber Coupled High Power Pump Laser

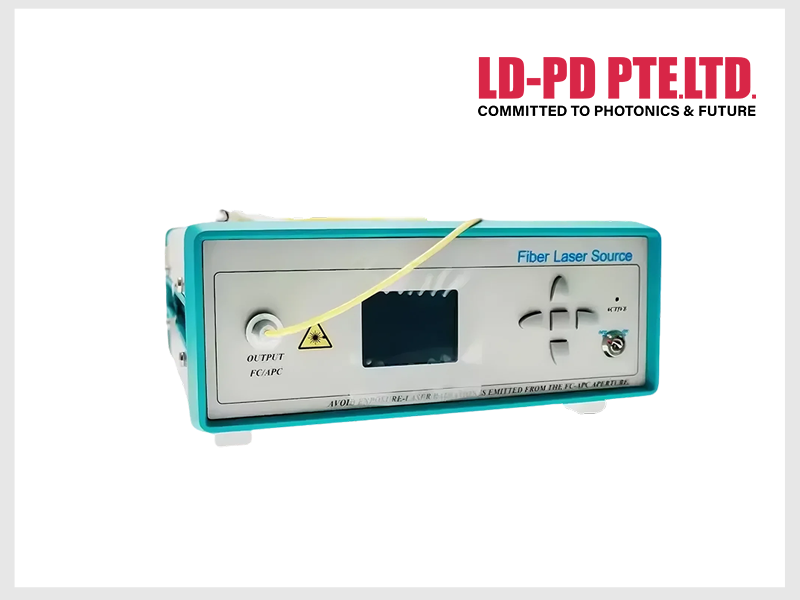

MHPL-976-5-MM-B

Central wavelength 976nm；Output power 5W；105/125μm Multimode fiber；Bench Top

Central wavelength: 976nm

Output power: 5000mW

Parameter

Features

● High output power

● Power and spectral stability

● Modular or desktop package

Specifications

Optical parameters	Unit	Type		remarks
Wavelength	nm	793/808/976	915
Wavelength accuracy	nm	±3	±10
Spectral width	nm	3	6
Working mode	-	CW		Continuous laser
Output power	W	5、10、25		Customizable
Short term stability (15 minutes)	dB	≤ ±0.02		equal≤±0.5%
Long term stability (8 hours)	dB	≤ ±0.05		equal≤±1.2%
Output pigtail type	-	105/125μm Multimode fiber，NA= 0.22
Pigtail connect type	-	Bare fiber		Optional optical fiber collimator

Electrical and environmental parameters	Bench Top	modular
Control mode	button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC,<120W	12V DC,<60W
Dimensions	260(W)×320(D)×120(H)mm	125(W)×150(D)×30(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Application

● Fiber laser pumping

● biomedical science

● Material laser processing

Ordering Info

Ordering information / model

MHPL

Wavelength (nm)

Output power (W)

Output pigtail type

Packaging form

793/808/915/976/1064

5/10/25

MM=105/125μm

Multimode fiber

B= Bench Top

M= Modular
