FP Light Source

Due to the fiber laser pumped at the 976nm, the gain fiber has a higher absorption coefficient for the pump light. Under the same pump power injection, compared with the 915nm pump, the 976nm pumping scheme is adopted. The output power of the fiber laser It will be 13% higher, and the gain fiber length required for 976nm wave pumping needs is shorter, which directly reduces the material cost, while also effectively reducing the nonlinear effect, the loss of optical efficiency, and the difficulty of thermal management.

Product model

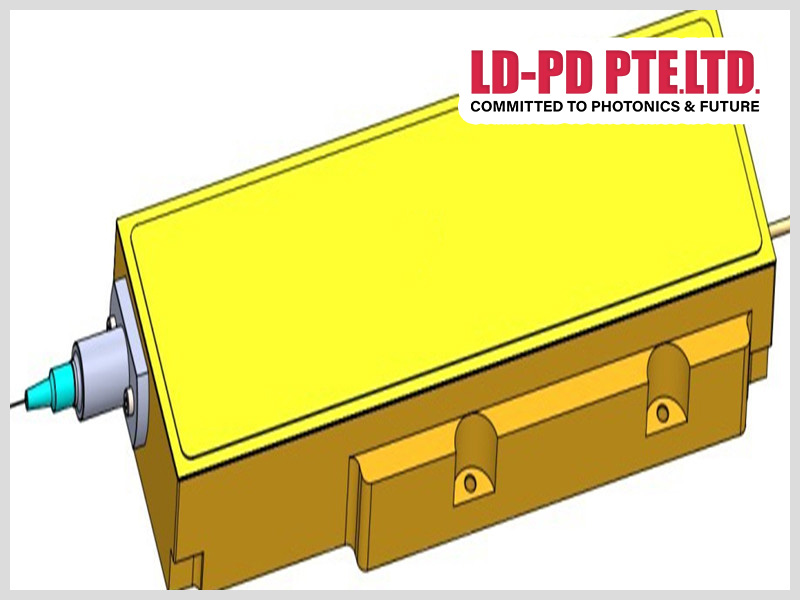

976nm High Power Fiber-coupled Semiconductor Pump Module

EB-FCP-660-220-0976-03-202

Wavelength Peak 976nm, CW Output Power 660W，Spectral Width 4.5nm, Fiber Length 160cm

Output power: 600W

Spectral Width: 4.5 nm

Parameter

Features

● Long Service Life

● High Efficiency

● High Reliability

Specifications

Optical Parameters	unit	min	typical	max
CW Output Power	W	660
Wavelength Peak	nm	973	976	979
Spectral Width(FWHM)	nm		4.5	5
NA Within 95% Power Enclosure				0.175
Wavelength Temperature Cofficient	nm/℃		0.33
Feedback Isolation	dB		30
Feedback Isolation Wavelength	nm	1030		1200
Fiber Core Diameter	um	217	220	223
Fiber Cladding Diameter	um	239	242	245
Fiber NA		0.2	0.22	0.24
Electrical Parameters
E-O Efficiency	%		50
Threshold Current	A		1.6
Operating Current	A		32	33
Operating Voltage	V		41	43
Mechanical Parameters
Fiber Length	cm	160	180
Fiber Termination			pigtail
Cooling Flow Rate/Pressure			conduction Cooling
Outline Dimensions			See Drawing
Thermal Parameters
Cooling Temperature	℃		25
Lid Temperature	℃			55
Fiber-Snout Temperature	℃			45
Fiber Temperature	℃			35
Storage Temperature	℃	-30		65
