Fabry-Perot Laser Diode

The LP-FP-830-A-A81-TO9 830m TO9 High Power laser diode made by LD-PD is a cost effective, highly coherent laser source. High power single emitter TO,output power range from 1W to 1.2W,high efficiency,long lifetime,widely used in Laser illumination, medical and other fields.

Product model

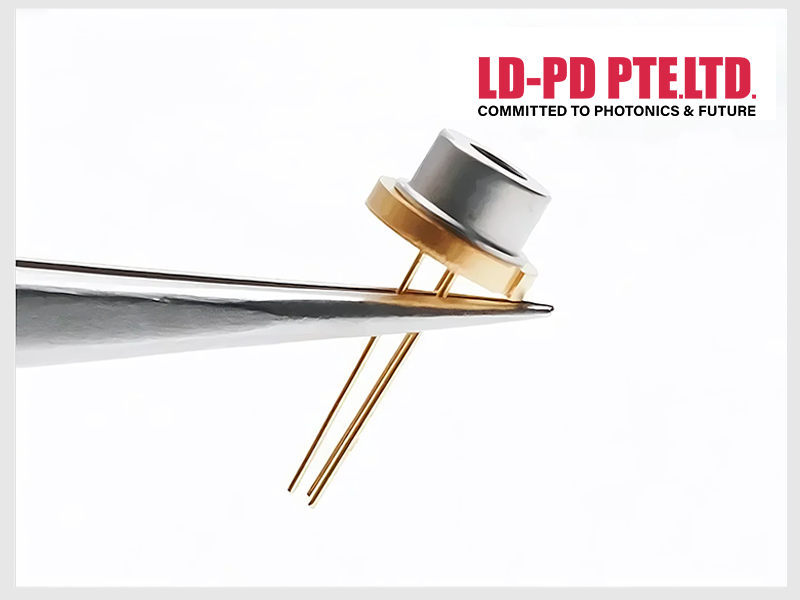

830nm TO9 High Power laser diode

LP-FP-830-A-A81-TO9

Central wavelength 830nm, output Power 1W, Spectral Width 3.5nm,Tolerance ±10nm,TO9

Central wavelength: 830nm

Output power: 1000mW

Spectral Width: 3.5 nm

Parameter

Features

● High Power

● High Reliability

● High Power Conversion Efficiency

E/O Characteristics

Electrical/Optical Characteristics(Tsub=25°C, CW bias unless stated otherwise)

TO Serial		PN#LP-FP-1-A81-W0830-TO9
Parameter	Unit	Min	Typ	Max
Optical2
Center Wavelength	nm	820	830	840
Wavelength Tolerance	nm		±10
Output Power4	W		1
Spectral Width (FWHM)	nm		3.5	4.5
Wavelength Temperature Coefficient	nm/℃		0.28
Electrical2
Power Conversion Efficiency	%	55	60
Slope Efficiency	W/A	0.98	1.05	1.15
Threshold Current	A		1.3	1.6
Operating Current	A		15.5	16.5
Operating Voltage	V		1.6	1.7
Heart Characteristics
Operating Temperature3	℃	15	25	35
Storage Temperature3	℃		0~55
Note
1. Explanation of Item Number：LP(LD-PD In Short）- TO9 （TO9 Package）–1.0（Output Power is 1W） - 0830（Center Wavelength is 830nm）- 10（Wavelength Tolerance is ±10nm）
2. Above Data Test at 25℃, Unless otherwise stated.
3. Please avoid operation and storage in the condensation enviroment. If exceed operating temperature, the device lifetime will be inpacted.
4. Lifetime reduced if exceed nominal output power.

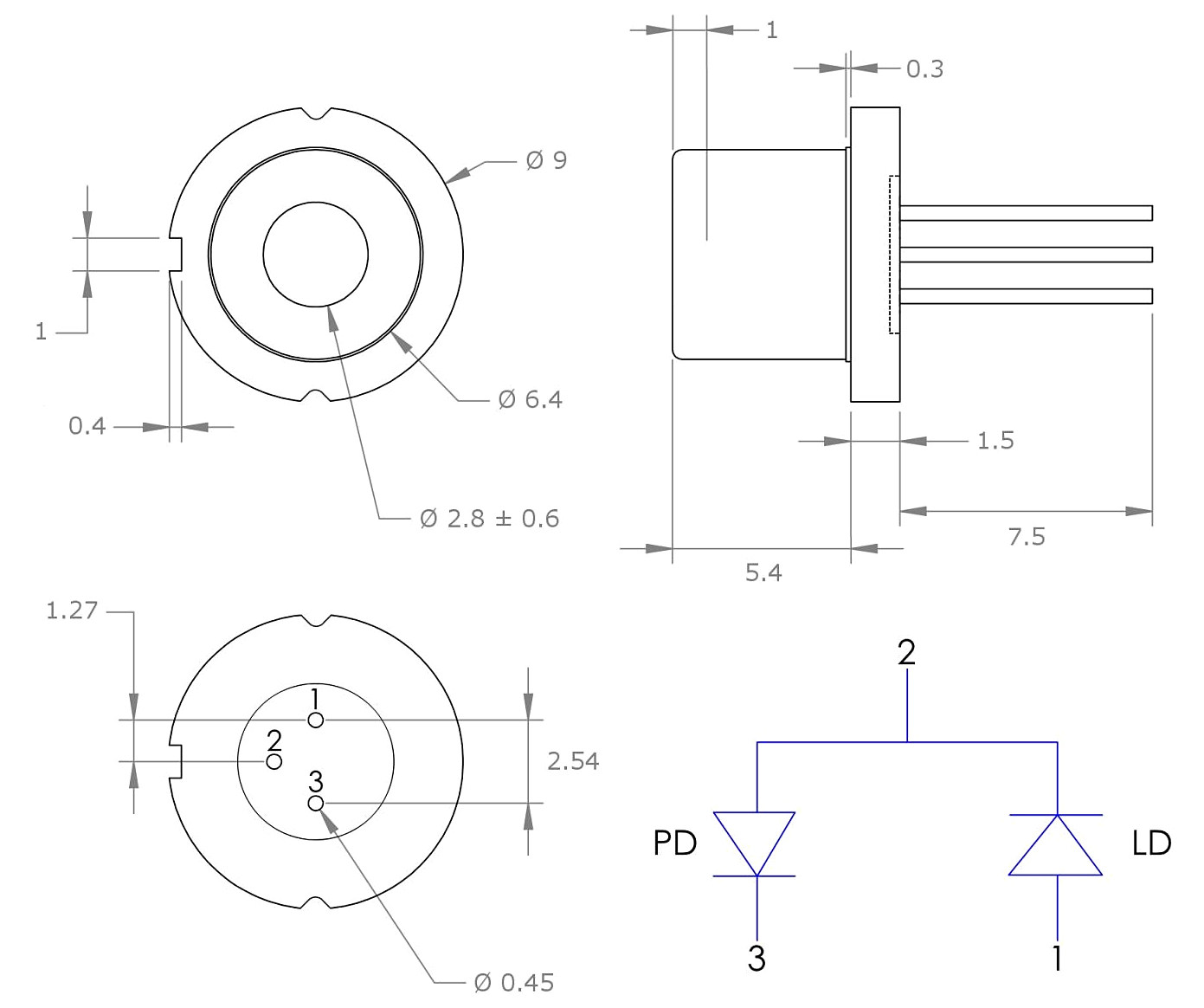

Dimensions and Pin definitions

Unit mm

Application

● Medical

● Industry Pump

Ordering Info

LP-FP-□□□□-☆-A8▽-TO9

□□□□：Wavelength

830: 830nm

915: 915nm

☆ ：Output Power

A：1W

B：2W

▽：Wavelength Tolerance

1：±10nm

2：±20nm
