The PL-FP-840-1-A81 -SA High brightness, high quality, and high reliability are the foundation of our single mode product line.LD-PD’s 840nm single mode laser modules are available with up to 70mW of continuous output power from a 14-pin butterfly packaged fiber. All chips are mounted on a 2.1mm COS within the package and come standard with an internal thermistor, TEC, and photodiode. LD-PD’s trademark laser chip design offers un-measurable degradation and long lifetimes that make our chips among the most reliable in the industry today. Our 840nm single mode line serves a broad range of applications including optical data storage, printing, laser ranging, illumination, defense, spectral analysis, and graphics.
Product model
| 840nm FP PM 14-Pin Butterfly Module Laser Diode |
PL-FP-840-1-A81-PA | Central wavelength 840nm, Output Power 30mW, Spectral Width 0.5nm, Tolerance ±1nm, with TEC, PM850, FC/APC | Central wavelength: 840nm Output power: 30mW Spectral Width: 0.5 nm |
| 840nm FP SM 14-Pin Butterfly Module Laser Diode |
PL-FP-840-1-A81-SA | Central wavelength 840nm, Output Power 30mW, Spectral Width 0.5nm, Tolerance ±1nm, with TEC, HI780, FC/APC | Central wavelength: 840nm Output power: 30mW Spectral Width: 0.5 nm |
Parameter
Features
● Optical output: 70mW
● FC-APC connector
● Efficient coupling into single mode fiber
● 14-pin butterfly package
● CW or pulsed operation
● Internal monitor PD and TEC
● SM or PM Fiber (ø0.9mm)
Laser Specifications
Electrical/Optical Characteristics (Tsub=25°C, CW bias unless stated otherwise)
Parameter | Symbol | Min | Typ | Max | Unit |
Centre Wavelength | λ | 835 | 840 | 845 | nm |
Spectral Width | Δλ | 0.1 | 0.5 | 2.0 | nm |
Threshold Current | Ith |
| 20 | 30 | mA |
Operating Current | Iop |
| 130 | 160 | mA |
Fiber output Power | Pf | 60 | 70 | 80 | mW |
PD Dark Current (VRD=5V) | Id |
|
| 0.1 | uA |
Extinction Ratio（PM VERSION） | PER | 17 | 20 |
| dB |
Coupled Fiber Type | HI780 |
Forward Voltage | Vf |
| 1.8 | 2.5 | V |
Thermistor Resistance | RT | 9.5 | 10 | 10.5 | KΩ |
Thermistor Temp. Coefficient |
|
| -4.4 |
| %/°C |
Connector | FC/APC |

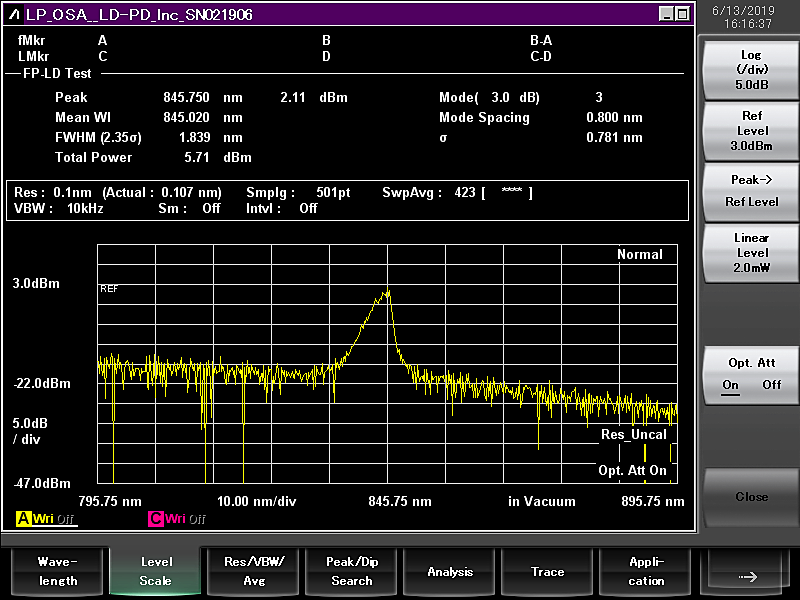

Spectrum

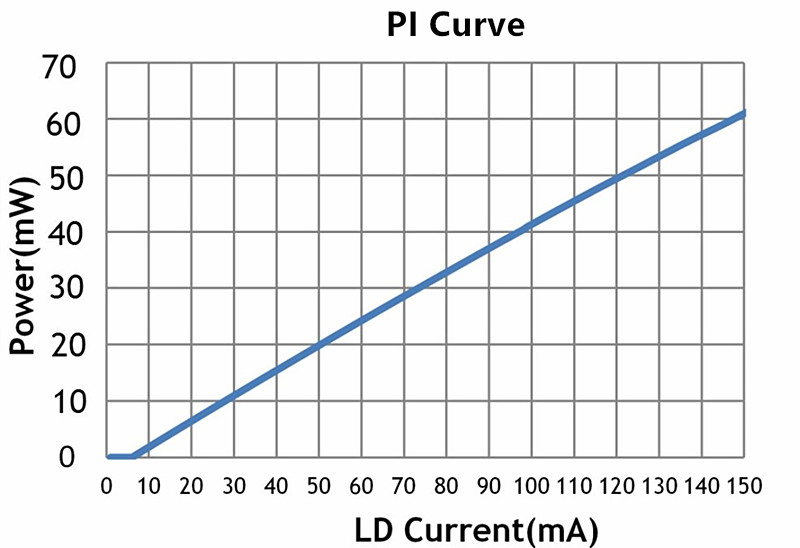

L-I Curve

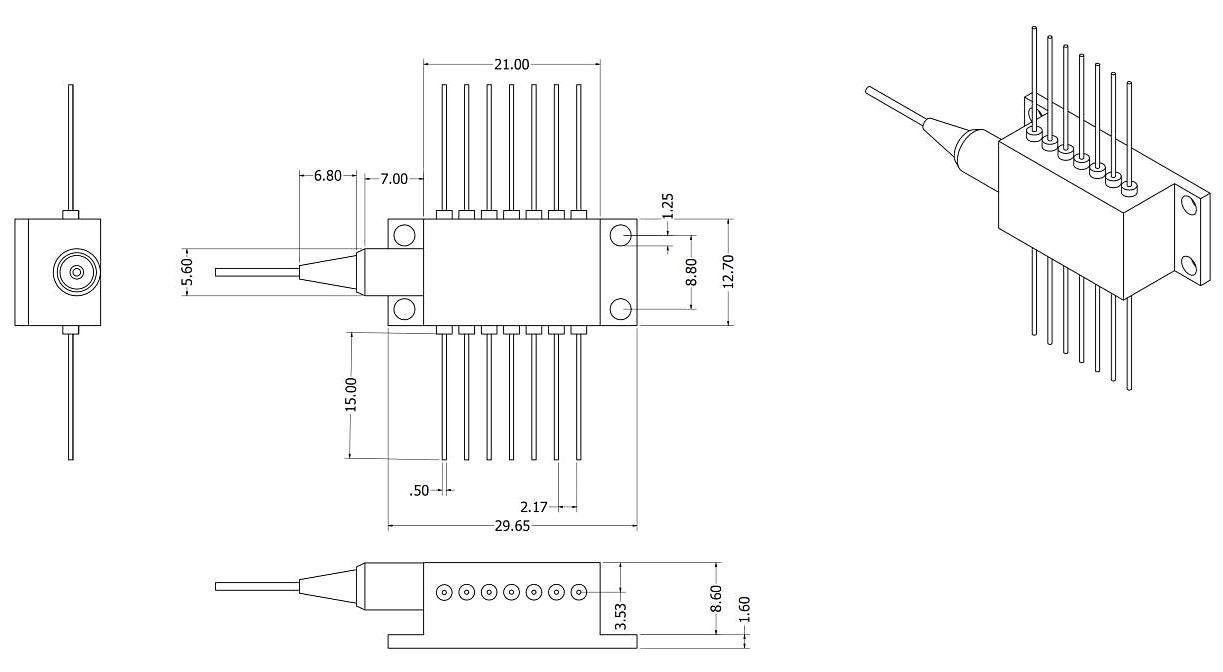

Package Size
Unit(mm)

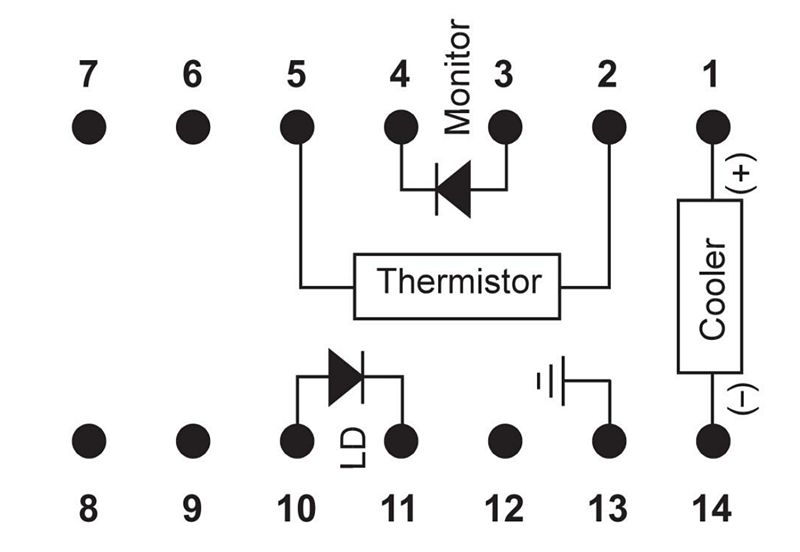

Pin definition
1 | Thermoelectric Cooler (+) | 8 | N/C |
2 | Thermistor | 9 | N/C |
3 | PD Monitor Anode (-) | 10 | Laser Anode (+) |
4 | PD Monitor Cathode (+) | 11 | Laser Cathode (–) |
5 | Thermistor | 12 | N/C |
6 | N/C | 13 | Case Ground |
7 | N/C | 14 | Thermoelectric Cooler (–) |
Absolute Maximum Ratings
Item | Unit | Min | Typ | Max |
Case Temperature | ℃ | -5 | 25 | 70 |
Chip Temperature | ℃ | +10 | 25 | 40 |
Operating Current | mA | 0 | 120 | 160 |
Forward Voltage | V | 0.8 | 1.2 | 1.8 |
TEC Current | A | - | 1.2 | 1.4 |
Reverse Voltage（LD） | V | - | - | 1.8 |
Reverse Voltage(PD) | V | - | - | 10 |
Application
● Printing
● Optical Data Storage
● Spectral Analysis
● Graphics
● Laser Ranging
● Illumination
● Defense
Ordering Info
PL-FP-□□□□-☆-A8▽-XX
□□□□: Wavelength
405: 405nm
633: 633nm
680: 680nm
850: 850nm
*****
1550: 1550nm
☆: Output Power
1: 30mW
2: 70mW
▽: Wavelength Tolerance
1: ±1nm
2: ±2nm
XX: Fiber and Connector Type
SA=SMF-28E+ FC/APC
SP=SMF-28E+ FC/PC
PP=PM Fiber+ FC/PC
PA=PM Fiber+ FC/APC
