532 nm Green Solid State Laser

CNI offers the diverse of 532 nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20 W available. For Q-switched operating mode lasers, the high power laser series is up to 500 W available, and high energy laser series is up to 1000 mJ available.

532 nm High Stability Laser Series

High stability 532 nm laser, housed in compact packages, are the good choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:
Confocal microscopy
Laser medical treatment
Scientific experiment
Laser lighting show
Optical instrument		Optogenetics

Specifications:

Model	Operating mode	Output power	Power stability	M² factor	Data sheets
MGL-U-532 Ultra compact	CW	1~1500 mW	<1%	<1.2
MGL-DS-532 Integrated electronics	CW	1~150 mW	<1%	<1.2 (<1.1 optional)
MGL-S-532-SM SM Fiber output laser	CW	1~150 mW	<1%	/
MGL-S-532 Good seal IP67!	CW	1~300 mW	<1%	<1.2 (<1.1 optional)
MGL-FN-532	CW	300~4000 mW	<1%	<1.2 (<1.1 optional)
MGL-F-532 Fan cooling and heat sink	CW	1~2500 mW	<1%	<1.1
MGL-N-532 Fan cooling and heat sink	CW	2.5~5 W	<1%	<1.3
MGL-N-532-Water Water cooled	CW	1~5 W	<1%	<1.3
MGL-V-532	CW	5~15 W	<1%	<1.2
MGL-V-532-HQ Power variable with good beam	CW	5~15 W	<1%	<1.2
MGL-W-532	CW	15~20 W	<1%	3~6
MGL-DA-532 Good beam quality	CW	20~25 W	<1%	<1.3
MGL-D-532	CW	20~30 W	<1%	/
MGL-Z-532	CW	30~60 W	<1%	/
MGL-III-532-AOM	High modulation up to 1 MHz	1~150 mW	<1%	<1.5
MGL-FN-532-AOM	High modulation up to 1 MHz	150~1000 mW	<1%	<1.5
MGL-N-532-AOM	High modulation up to 1 MHz	1000~4000 mW	<1%	1.5~3

532 nm Low Noise Laser Series

High performance CW, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.003 nm. Housed in compact packages, are the good choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Specifications:

Model	Output power (mW)	Noise of amplitude (rms, 20Hz-20MHz)	M² factor	Spectral line width (nm)	Data sheets
MLL-U-532-SM SM Fiber output laser	1~200	<0.5%	/	<0.003
MLL-S-532 Good seal IP67!	1~300	<1%	<1.2 (<1.1 optional)	<0.1
MLL-U-532	300~1500	<0.5%	<1.2	<0.003
MLL-FN-532	1000~2500	<0.5%	<1.2 (<1.1 optional)	<0.1 (<0.003 @1.5 W)
MLL-F-532 Fan cooling and heat sink	1~2500	<1%	<1.1	<0.1 (<0.003 @1.5 W)
MLL-N-532 Fan cooling and heat sink	2.5~5 W	<1%	<1.3	<0.1 (<0.01 @2.5 W)
MLL-V-532 Water cooled	3~10 W	<1%	<1.2	<0.15
MLL-W-532	10~20 W	<1%	<3.0	<0.1 (<0.01 @5 W)

532 nm Single Longitudinal Mode Laser Series

High performance CW, single longitudinal mode, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.00001 nm. Housed in compact packages, are the good choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Specifications:

Model	Operating mode	Output power (mW)	Fiber coupling options	AOM option	Data sheets
MSL-U-532 Ultra compact	CW	1~1000	SM/ PM/ MM	yes
MSL-S-532 Good seal IP67	CW	1~100	SM/ PM/ MM	yes
MSL-DS-532 Integrated electronics	CW	1~100	SM/ PM/ MM	yes
MSL-R-532	CW	1~10W	MM	/
MSL-III-532-AOM	High modulation up to 1MHz	1~30	SM/ PM/ MM	/
MSL-FN-532-AOM	High modulation up to 1MHz	30~200	SM/ PM/ MM	/
MSL-AO-532	Q- switched	1~100uJ@1Hz~1kHz	MM	/

Options & Accessories

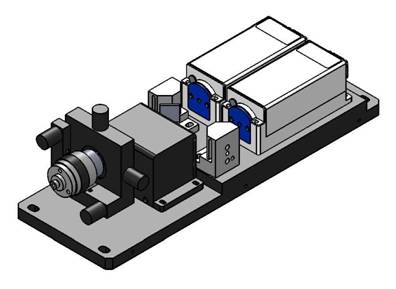

Modulation up to 1 MHz	Fixed SM/PM Fiber Coupling	2-in-1 laser and fiber connector	Heatsink TC-01
