532 nm Q-switched Laser Series

CNI offer diverse of Q-switched 532 nm lasers in passively and actively modes. With pulse width in short nanosecond, and single pulse energy up to 450 mJ. Are the good choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with good material removal rates for microelectronics, materials processing, and medical device manufacturing.

Applications:
Scientific Research
Life Science & Medical
Materials Processing
Microelectronics
OEM Integration

Specifications:

Model	Single pulse energy	Repetition rate	Pulse width (ns)	Operating mode (Q-switched)	Data sheets
MPL-T-532 Ultrashort pulse ~500ps	1-10 μJ	1Hz-15 kHz	~0.5	Passively
MPL-H-532	5-50 μJ	1Hz-30 kHz	~5 (1.3 optional)	Passively
MPL-U-532	1-60 μJ	1Hz-12 kHz	~1.3 (0.6 optional)	Passively
MPL-N-532	50-125 μJ	1-15 kHz	~5	Passively
AO-N-532	1-60 μJ	1-50 kHz	~10<10 kHz	Acousto-optic
AO-S-532	1-100 μJ	0.1-50 kHz	5-10 @<10 kHz	Acousto-optic
AO-Mini-532 Water cooled optional	1-100 μJ	1-50 kHz	~7	Acousto-optic
AO-S-532-H	1-250 μJ	1Hz-70 kHz	~4.8 @10 kHz	Acousto-optic
AO-532A	1-300 μJ	20-200 kHz	~12 @30 kHz	Acousto-optic
AO-532W Water cooled	1-600 μJ	20-200 kHz	~12 @30 kHz	Acousto-optic
AO-UA-532	0.5 mJ	1-5 kHz	<15 @ 5 kHz	Acousto-optic
AO-532B	1-600 μJ	1-5 kHz	~10 @5 kHz	Acousto-optic
AO-T-532	1-600 μJ	10-100 kHz	~30 @10 kHz	Acousto-optic
AO-L-532	1-600 μJ	0.001-10 kHz	~6 @5 kHz	Acousto-optic
AO-X-532	1-670 μJ	30-100 kHz	~15 @30 kHz	Acousto-optic
AO-U-532	500 μJ-1 mJ	1-10 kHz	<15 @3 kHz	Acousto-optic
EO-XS-532	1-125 μJ	1-100 kHz	~3.5 @40 kHz	Electro-optic
EO-HS-532	1-200 μJ	15-100 kHz	~4 @50 kHz	Electro-optic
EO-S-532	1-70 μJ	1-1000 Hz	~6	Electro-optic
EO-S-532-RS	1-150 μJ	1 Hz-20 kHz	~1.3	Electro-optic
EO-532-Subnano	1-500 μJ	1-10 kHz	<1.5ns@1KHz	Electro-optic
EO-532-G M²<1.2	0.06-1.5 mJ	1 Hz-25 kHz	<8 @5 kHz	Electro-optic
EO-532-H M²<1.5	0.5-0.8mJ	1-10 kHz (fixed)	<6 @5 kHz	Electro-optic
EO-532-N	0.2-0.8 mJ	1 Hz-25 kHz	<6 @<5 kHz	Electro-optic
EO-532-D	1-2 mJ	1-5 kHz	<10@5KHz	Electro-optic
DPS-532-Subnano	0.5 mJ	1 kHz	<1	Passively
DPS-532-Pico	2-10 W	0.1-10 MHz	<50 ps	Electro-optic
DPS-532-H M²<1.5	1-10 mJ	1-1000 Hz	<4	Electro-optic
DPS-532-E Narrow pulse width	1.5-4 mJ	1-50 Hz	<4	Electro-optic
DPS-532-A	1-5 mJ	1-10 Hz	<10	Electro-optic / Passively
DPS-532-B	5-15 mJ	1-10 Hz	<10	Electro-optic
DPS-532-BS-D	15-50 mJ	1-20 Hz	<10	Electro-optic
DPS-532-Q High rep.rate	2-20 mJ @1-1000 Hz	1-1000 Hz	~10	Electro-optic
DPS-532-J Harsh condition	1-20 mJ	1-20 Hz	~10	Electro-optic
DPS-532-G Water cooled	30-150 mJ	100 Hz	<10	Electro-optic
HPL-532-QT Diamond cutting	1-13W	5-10 kHz	~150 @10 kHz	Acousto-optic
HPL-532-Q	2-3 mJ @10 kHz	10-20 kHz	~100 @10 kHz	Acousto-optic
HPL-532-QM	1-6 mJ @15 kHz	10-20 kHz	~100 @15 kHz	Acousto-optic
HPL-532-QL	7-13 mJ @15 kHz	15 kHz	~100 @15 kHz	Acousto-optic
LPS-532-A Water to air cooled	30-100 mJ	1-10 Hz	~10	Electro-optic
LPS-532-S	30-150 mJ	1-20 Hz	~10	Electro-optic
LPS-532-L	200-450 mJ	1-10 Hz	~10	Electro-optic

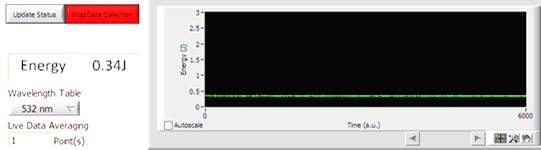

Features of 532 nm Q-switched laser: sample laser SN 15051490

Energy stability 1.48%	Jitter 1.156 ns, pulse width 9.502 ns

532 nm OEM Laser Module 532 nm Green Solid State Laser
