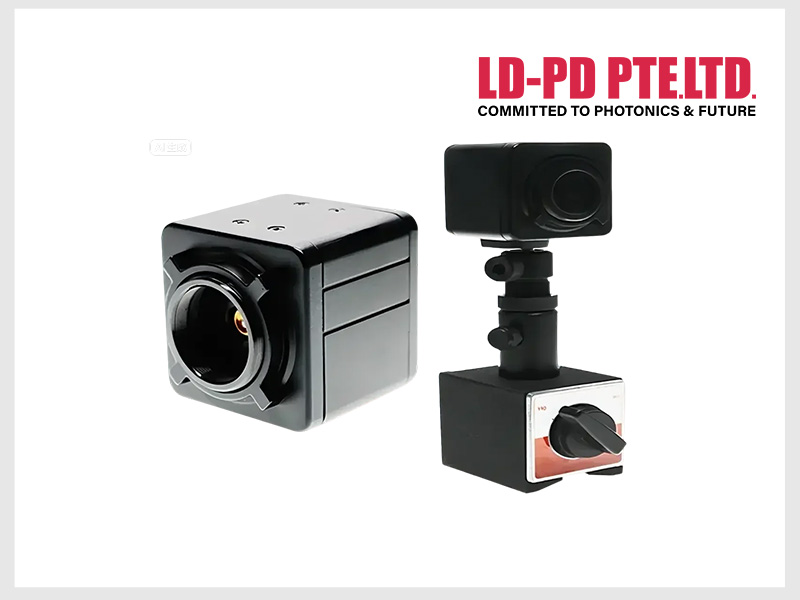

PDA-M-20A6B4G-INGaAS photodetector is a rated bandwidth, fixed gain photodetector used for detecting optical signals. The optical signal is input from the photoelectric sensor surface, and the output is in the form of voltage through BNC. This product can measure the optical signal in the wavelength range of 800nm to 1700nm. Refer to appendix table for specific performance parameter data. The housing of the LD-PD photodetector has inch 1/4"-20 threaded mounting holes, which can be easily installed and fixed. The housing part also comes with two different sizes of threaded adapters, which are suitable for industrial and scientific research applications, it can be easily adapted to external optical components, such as filters, attenuators, lenses, FC fiber adapters, etc. This product includes a plastic dust cover. Please refer to the third chapter for specific installation. Each photodetector is equipped with a linear DC power supply with an output of 9V, and the rated input voltage of this DC power supply is 220VAC/50Hz.
Product model
| 140MHz InGaAs Amplifier Photodetector |
PDA10A8B4G-NIR | Spectral Response: 800-1700nm; Bandwidth 140MHz; Active diameter 1mm; Rise time 2.5ns; Material InGaAs | Response wavelength: 800-1700nm Bandwidth: 140MHz |
| 25MHz InGaAs Amplifier Photodetector |
PDA05A7B4G-NIR | Spectral Response: 800-1700nm; Bandwidth 25MHz; Active diameter 0.5mm; Rise time 14ns; Material InGaAs | Response wavelength: 800-1700nm Bandwidth: 25MHz |
| 12MHz InGaAs Amplifier Photodetector |
PDA10A7B4G-NIR | Spectral Response: 800-1700nm; Bandwidth 12MHz; Active diameter 1mm; Rise time 29ns; Material InGaAs | Response wavelength: 800-1700nm Bandwidth: 12MHz |
| 5MHz InGaAs Amplifier Photodetector |
PDA20A6B4G-NIR | Spectral Response: 800-1700nm; Bandwidth 5MHz; Active diameter 2mm; Rise time 70ns; Material InGaAs | Response wavelength: 800-1700nm Bandwidth: 5MHz |
| 2MHz InGaAs Amplifier Photodetector |
PDA30A6B4G-NIR | Spectral Response: 800-1700nm; Bandwidth 2MHz; Active diameter 3mm; Rise time 175ns; Material InGaAs | Response wavelength: 800-1700nm Bandwidth: 2MHz |
Parameter
Features
General Parameters：
● Spectral Response: 800-1700nm
● Material: InGaAs
● Bandwidth (Hz): 5 MHz
Product Characteristics:
● Low noise, less than ±l mV
● The overshoot is small, and the overshoot voltage is less than 2.5%.
● Gain stability: gain error is less than 1%
● Dark bias voltage output noise: less than 1 mV (rms)
Specifications
PN# | PDA10A8B4G-NIR | PDA05A7B4G-NIR | PDA10A7B4G-NIR | PDA20A6B4G-NIR | PDA30A6B4G-NIR |
Wavelength | 800 - 1700 nm | 800 - 1700 nm | 800 - 1700 nm | 800 - 1700 nm | 800 - 1700 nm |
Bandwidth | DC - 140MHz | DC - 25MHz | DC - 12MHz | DC - 5MHz | DC - 2MHz |
Rise time | 2.5 nS | 14 nS | 29 nS | 70 nS | 175 nS |
Gain | Hi-Z load | 1*104 V/A | 1.2*104 V/A | 1*104 V/A | 1*104 V/A | 1*104 V/A |
50Ω load | 5*103 V/A | 6*103 V/A | 5*103 V/A | 5*103 V/A | 5*103 V/A |
Output Noise (RMS) | 760µV .typ | 1mV .typ | 800µV .typ | 1.3mV .typ | 800µV .typ |
NEP | 4.8*10-12 W/√HZ | 1.9*10-11 W/√HZ | 2.6*10-11 W/√HZ | 6.5*10-11 W/√HZ | 6.3*10-11 W/√HZ |
Active diameter | ф1 mm | ф0.5 mm | ф1 mm | ф2 mm | ф3 mm |
Operating temperature | 10-50℃ | 10-50℃ | 10-50℃ | 10-50℃ | 10-50℃ |
Supply Voltage | ±9V | ±9V | ±9V | ±9V | ±9V |

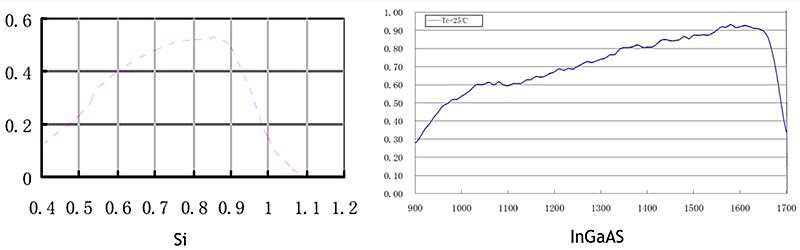

Spectral Sensitivity

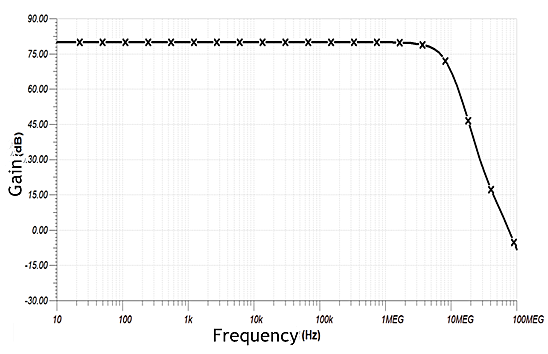

AC Transmission Characteristics

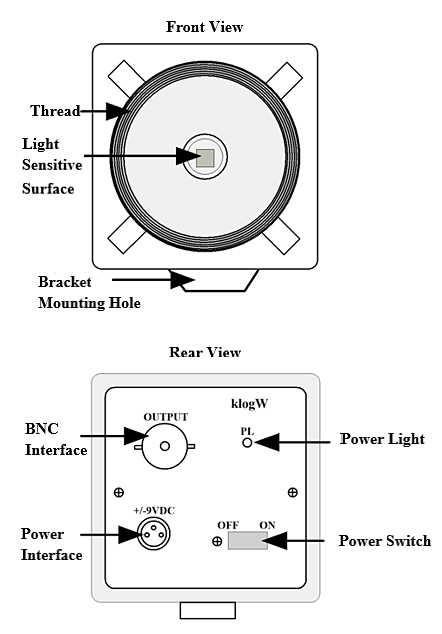

Appearance and Installation
Test Case:
Test light source:
PN：PL-DFB-9672.4-B-A81-PA
SN：DO3431e-q2-Bo2-A19

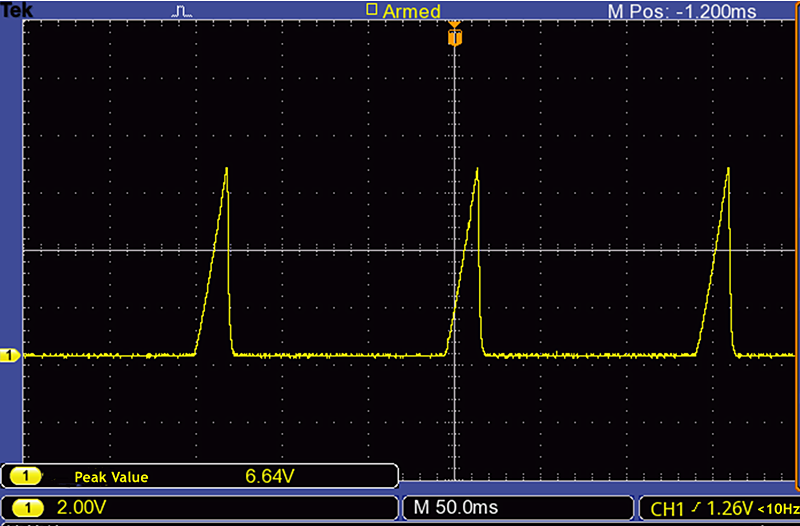

Test conditions: 25℃, laser current scanning for 15-23mA, detector output as shown in the following figure.
This detector has high detection accuracy at 972nm, and can also detect weak light (tens of microwatts).

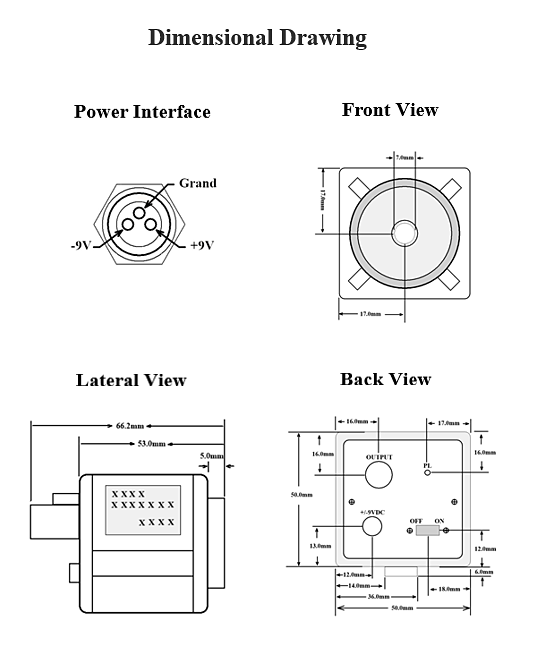

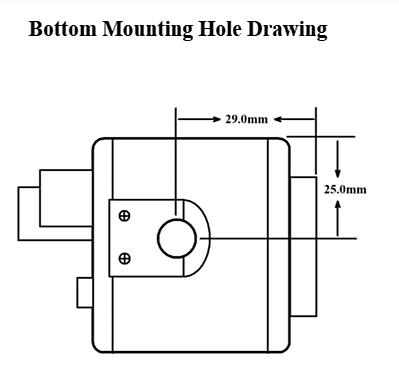

Outline Diagram and Die Dimensions
Application
● Display panel detection
● Stroboscopic analysis of LED lighting
● Measurement of flicker frequency and power of toy light
● Gas analysis
Product model
PDA10A8B4G-NIRResponse wavelength: 800-1700nm
Bandwidth: 140MHz
PDA05A7B4G-NIRResponse wavelength: 800-1700nm
Bandwidth: 25MHz
PDA10A7B4G-NIRResponse wavelength: 800-1700nm
Bandwidth: 12MHz
PDA20A6B4G-NIRResponse wavelength: 800-1700nm
Bandwidth: 5MHz
PDA30A6B4G-NIRResponse wavelength: 800-1700nm
Bandwidth: 2MHz
