InGaAs PD Module

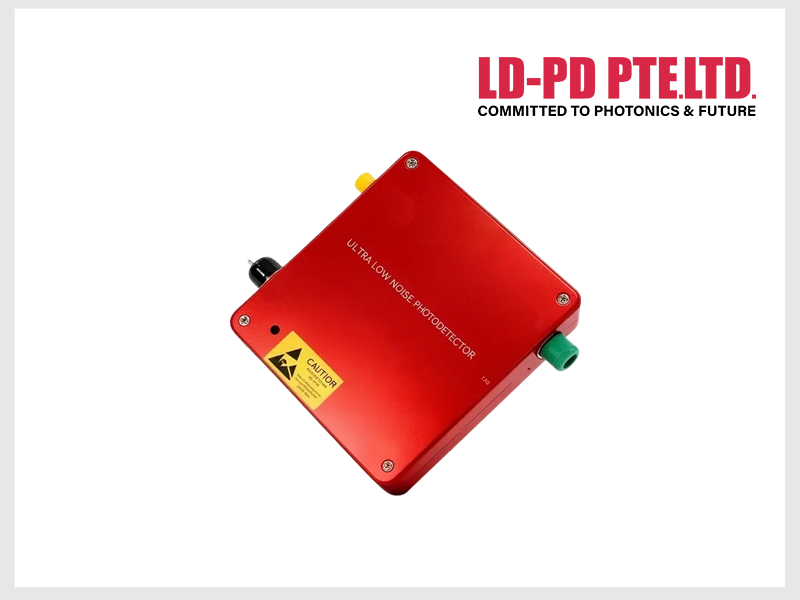

The ultra-low noise Photodetector module integrates ultra-low noise analog PIN detector, low noise broadband transimpedance amplifier and ultra-low noise isolation power supply, and the output signal is not affected by the external power supply. This module is particularly prominent in background noise . Under the same parameters, its background noise is about one third of that of conventional modules, which well meets customers' requirements for smaller signal detection and higher signal-to-noise ratio.

Product model

5GHz InGaAs Ultra-Low Noise Photodetector

UPD-5G-A

Response wavelength 800-1700nm, Bandwidth 5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 5GHz

2.5GHz InGaAs Ultra-Low Noise Photodetector

UPD-2.5G-A

Response wavelngth 800-1700nm, Bandwidth 2.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2GHz InGaAs Ultra-Low Noise Photodetector

UPD-2G-A

Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs Ultra-Low Noise Photodetector

UPD-1.5G-A

Response wavelength 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1.2GHz InGaAs Ultra-Low Noise Photodetector

UPD-1.2G-A

Response wavelngth 800-1700nm, Bandwidth 1.2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.2GHz

1GHz InGaAs Ultra-Low Noise Photodetector

UPD-1G-A

Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs Ultra-Low Noise Photodetector

UPD-800M-A

Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs Ultra-Low Noise Photodetector

UPD-500M-A

Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs Ultra-Low Noise Photodetector

UPD-400M-A

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Ultra-Low Noise Photodetector

UPD-300M-A

Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Ultra-Low Noise Photodetector

UPD-200M-A

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs Ultra-Low Noise Photodetector

UPD-100M-A

Response wavelength 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise

● High Bandwidth

● High Transimpedance Gain

● Compact Structure

● Built-in low noise isolation power supply

Specifications

Product Model

UPD-100M-A

UPD-200M-A

UPD-300M-A

UPD-400M-A

UPD-500M-A

UPD-800M-A

UPD-1G-A

UPD-1.2G-A

UPD-1.5G-A

UPD-2G-A

UPD-2.5G-A

UPD-5G-A

Unit

Detector

InGaAs

Wavelength

800~1700

nm

Bandwidth

100M

200M

300M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

5G

Hz

Detector Responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

20K

15K

30K

30K

30K

30K

30K

30K

6K

V/W

Saturated Input Optical Power

140

140

140

210

280

140

140

140

420

140

140

700

μW

NEP

2.2

2.2

2.2

2.7

3.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3

pW/Sqrt(Hz)

Output Impedance

50

50

50

50

50

50

50

50

50

50

50

50

Ω

Output Coupling Mode

DC/AC

DC/AC

DC/AC

DC/AC

DC

AC

AC

AC

AC

AC

AC

AC

Supply Voltage

5

5

5

5

5

12

12

12

12

12

12

12

V

Supply Current

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.3

A

Optical Input

FC/APC（or Free Space ）

FC/APC

Radio Frequency Output

SMA

SMA

Shape Size

65*50*20

65*50*25

80*90*25

mm

Test Result

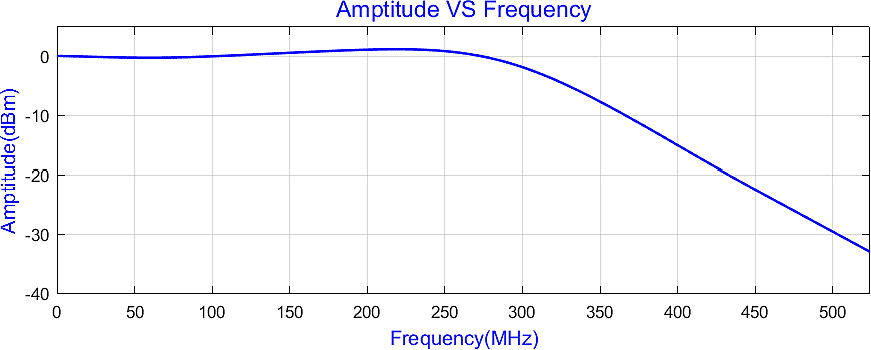

Bandwidth curve of 300MHz Ultra-Low Noise Photodetector

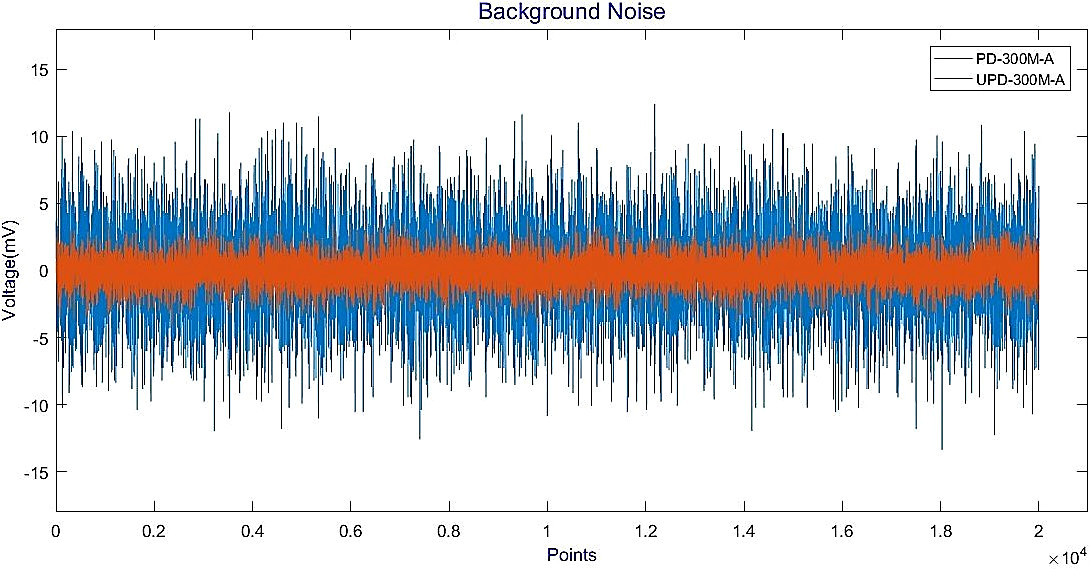

Bottom noise contrast between UPD and PD

Application

● Optical Fiber Sensing

● Optical Fiber Communication

● Laser Ranging

● Spectrometry
