InGaAs PD Module

InGaAs photodetector consists of two matched ultra-low noise analog photodiodes, a low noise broadband transimpedance amplifier and Ultra Low Noise power supply. Due to high gain, high sensitivity, high bandwidth, low noise, and high common mode rejection ratio, the high speed and low noise balance photo detector can effectively reduce the commonmode noise, and improve the signal-to-noise ratio of the system.

Product model

5GHz InGaAs Detector Module

PD-5G-A

Response wavelength 800-1700nm, Bandwidth 5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 5GHz

2.5GHz InGaAs Detector Module

PD-2.5G-A

Response wavelength 800-1700nm, Bandwidth 2.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2.0GHz InGaAs Detector Module

PD-2G-A

Response wavelength 800-1700nm, Bandwidth 2.0G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs Detector Module

PD-1.5G-A

Response wavelngth 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

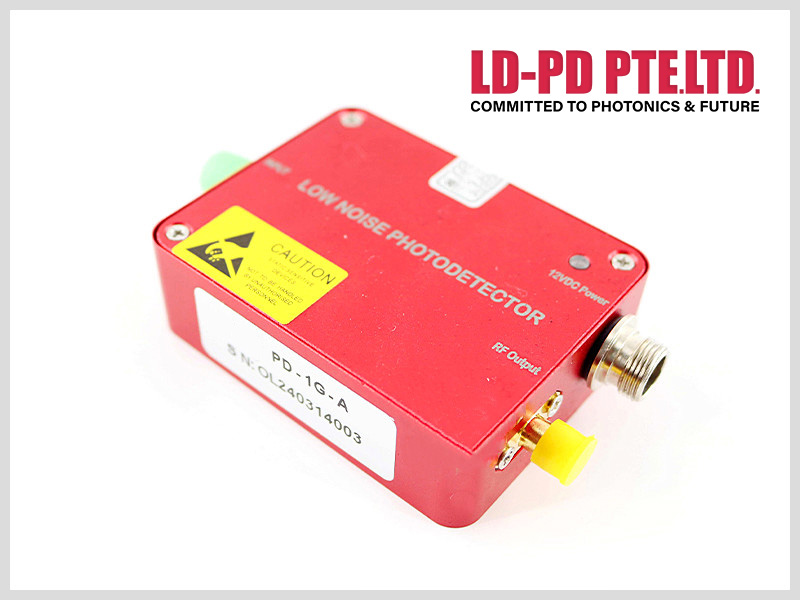

1GHz InGaAs Detector Module

PD-1G-A

Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs Detector Module

PD-800M-A

Response wavelength 800-1700nm, Bandwidth 800M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs Detector Module

PD-500M-A

Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs Detector Module

PD-400M-A

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Detector Module

PD-300M-A

Response wavelength 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Detector Module

PD-200M-A

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC;

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100M InGaAs Detector Module

PD-100M-A

Response wavelngth 800-1700nm, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC; Module

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise

● High Bandwidth

● High Transimpedance Gain

● Compact Structure

● Low noise isolation power supply

Specifications

Product Model

PD-100M-A

PD-200M-A

PD-300M-A

PD-400M-A

PD-500M-A

PD-800M-A

PD-1G-A

PD-1.5G-A

PD-2G-A

PD-2.5G-A

PD-5G-A

Unit

Detector

InGaAs

Wavelength

800~1700

nm

Bandwidth

100M

200M

300M

400M

500M

800M

1G

1.5G

2G

2.5G

5G

Hz

Detector Responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

10K

5K

30K

30K

20K

15K

15K

3K

V/A

Saturated Input Optical Power

140

140

140

420

840

140

140

210

280

280

1400

μW

NEP

5

5

5

7

7

9

9

9

9

9

9

pW/Sqrt(Hz)

Output Impedance

50

50

50

50

50

50

50

50

50

50

50

Ω

Output Coupling Mode

DC/AC

DC/AC

DC/AC

DC/AC

DC/AC

AC

AC

AC

AC

AC

AC

Supply Voltage

5

5

5

5

5

12

12

12

12

12

12

V

Supply Current

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

A

Optical Input

FC/APC（or Freedom Space ）

Radio Frequency Output

SMA

Shape Size

65*50*20

75*55*25

mm

Test Result

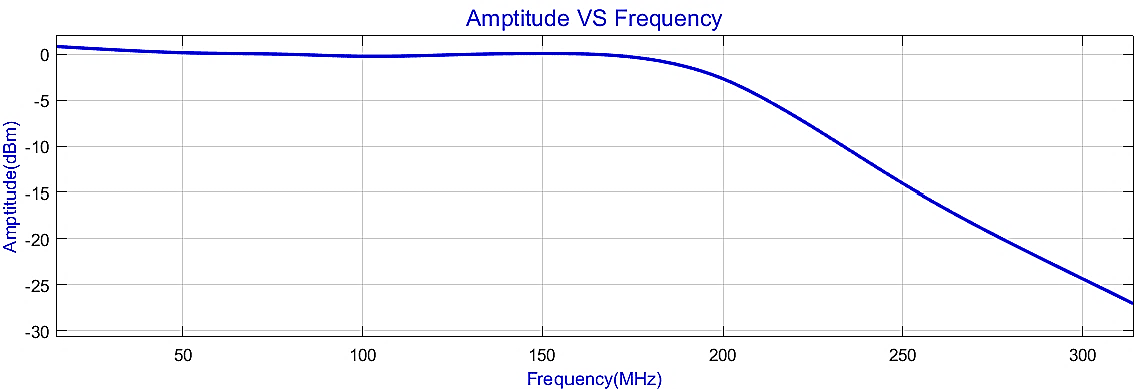

Bandwidth curve of 200MHz detector

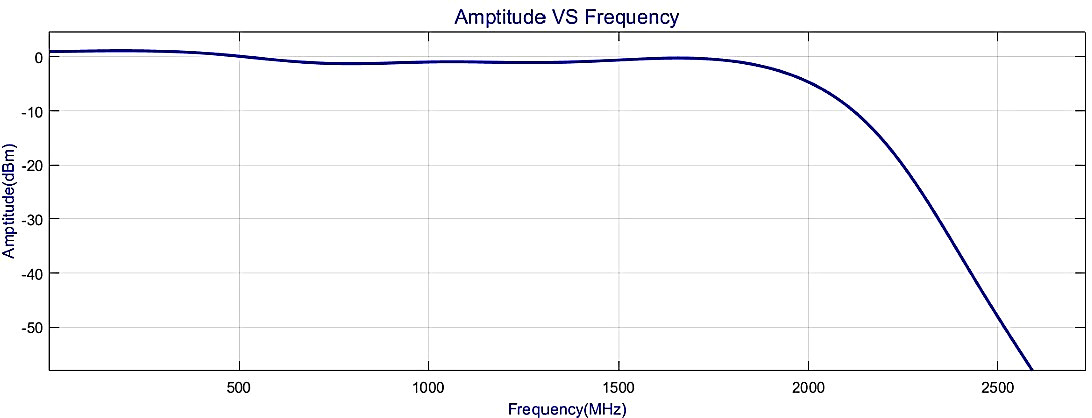

Bandwidth curve of 2GHz detector

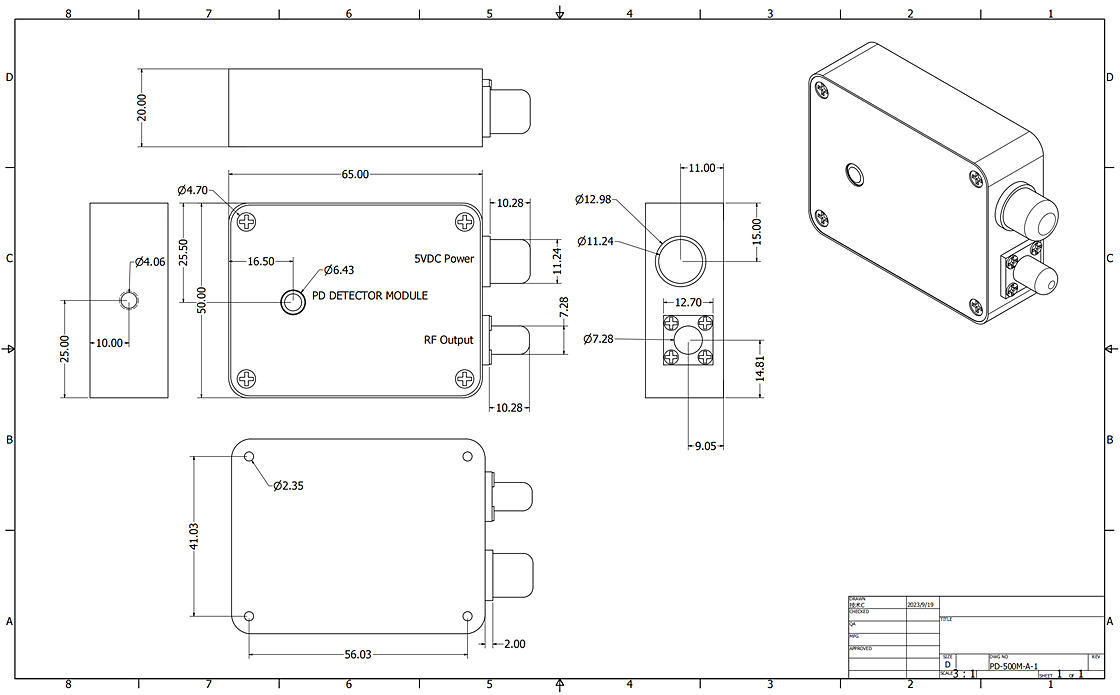

Package Size

Unit（mm）

Application

● Optical Fiber Sensing

● Optical Fiber Communication

● Laser Ranging

● Spectrometry
