The infrared extended InGaAs amplified photodetector has a sensitive range of 800nm~2600nm, 8 levels of adjustable gain, can realize quantitative photoelectric conversion, and has a wide dynamic range. It is suitable for various optoelectronic development scenarios, has excellent performance, and is cost-effective. It provides omnidirectional technical support and is often used in near- and mid-infrared light measurement.
Product model
| 800-2600nm Infrared Extended InGaAs Amplified Photodetector |
C3A-2600LAE | Spectral Response 800-2600nm; Response Time Constant 25ns; Gain Range 1.51kV/A～4.75MV/A | Response wavelength: 800-2600nm |
Parameter
Features
● The photosensitive range covers 800nm~2600nm, which is often used for near-mid-infrared light measurement
● Amplified detector, 8-level adjustable gain, quantitative photoelectric conversion
● Wide dynamic range, suitable for various infrared photoelectric development scenarios
● Excellent performance, high cost performance, all-round technical support
● Provide non-standard customized services
Specifications
Parameter | Specifications |
Wavelength Range | 800-2600nm 800-2200nm |
Response Time Constant | 25ns |
Gain Range | 1.51kV/A～4.75MV/A;0.75kV/A～2.38MV/A |
Signal Amplitude | 0～10V;0～5V |
Gain Adjustment Method | 0～70dB, 10dB per level, 8 levels in total |
NEP | 1mm×1mm; 2mm×2mm |
Photosensitive Surface Depth | 0.13" (3.3 mm) |
Detector Net Weight | 0.10kg |
Operating Temperature | 10-40℃ |
Storage temperature | -20-70℃ |
Dimensions | 2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm) |

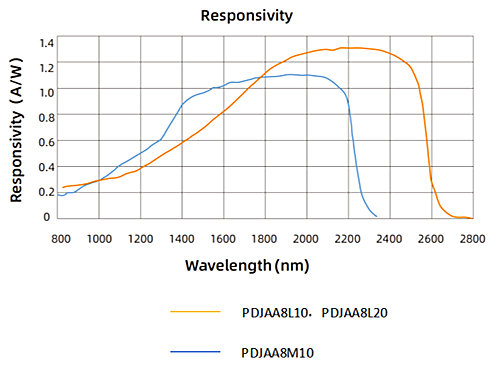

Response Curve:

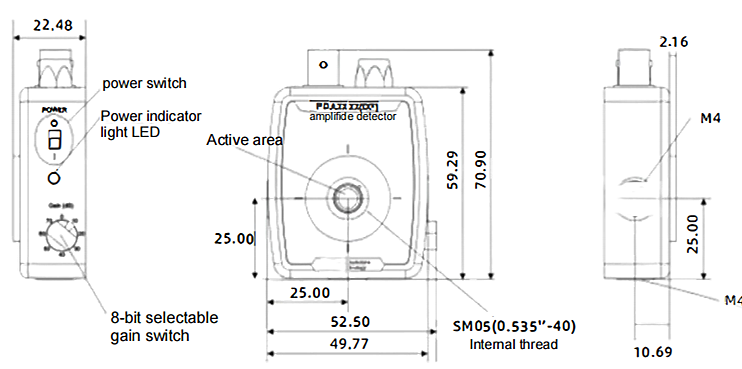

Package Size
unit(mm)
Application
● Near and mid-infrared light measurement
