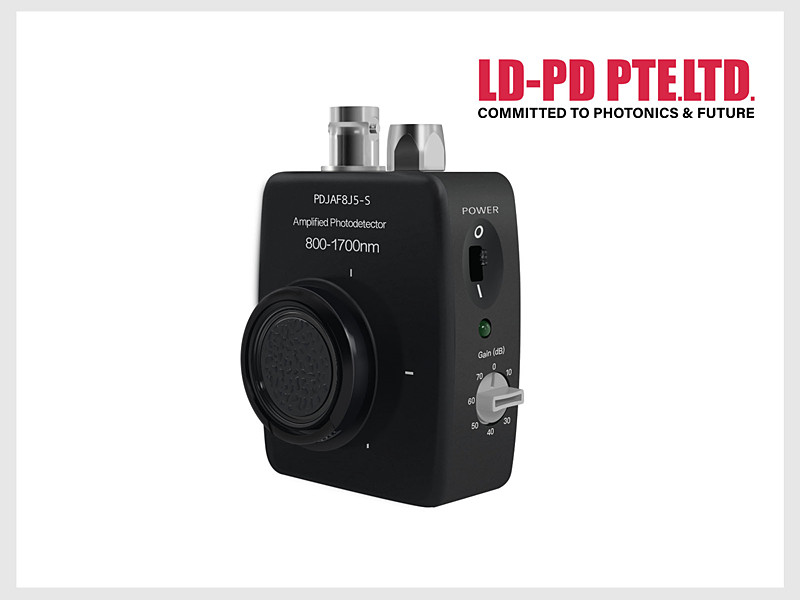

The InGaAs Amplified Photodetector has a photosensitivity range of 800nm~1700nm, fixed gain, and can achieve quantitative photoelectric conversion. It has sufficient gain while ensuring high bandwidth performance. It is suitable for the development of photoelectric detection applications with weak light intensity and fast speed. It has excellent performance and high cost performance, provides all-round technical support, and is often used in near-infrared light measurement.
Product model
| 800-1700nm InGaAs Amplified Photodetector |
PDJAF8J5-S | Spectral Response 800-1700nm; Photosensitive size Φ0.5mm, , fixed gain 1×10¹¹V/A±10%, bandwidth 20MHz | Response wavelength: 800-1700nm Active area: 0.5mm Bandwidth: 20Hz |
Parameter
Features
● Sensing range of 800nm to 1700nm, often used in near-infrared light measurements
● Amplified detector, fixed gain, quantitative photoelectric conversion
● With sufficient gain
● At the same time, it guarantees high bandwidth performance and is suitable for the development of photoelectric detection applications with weak light intensity and fast speed
● Excellent performance, high cost performance, and comprehensive technical support
● Provide non-standard customization services
Key Parameter
Parameters | Value |
Wavelength range | 800-1700nm | 900-2600nm |
Photosensitive size | Φ0.5mm | Φ150um | Φ0.5mm | Φ2.0mm | Φ1.0mm |
Bandwidth range | DC～150MHz | DC～380MHz | DC～20Hz | DC～5MHz | DC～25MHz |
Gain | Hi-Z Load:10kV/A； 50Ω Load:5kV/A | Hi-Z Load: 5×104V/A； 50Ω Load:2.5×104V/A | 1×1011V/A±10% | Hi-Z Load:500kV/A； 50Ω Load: 175kV/A | Hi-Z Load: 1×104V/A； 50Ω Load:5×103V/A |
Signal Amplitude | Hi-Z Load: 0～10V； 50Ω Load: 0～5V | Hi-Z Load: 0～10V； 50Ω Load: 0～5V | 0~10V | Hi-Z Load:0～10V； 50Ω Load:0~3.5V | Hi-Z Load: 0～10V； 50Ω Load: 0～5V |
NEP | 1.2×10-11W/Hz1/2 | 1.0 × 10-13W/Hz1/2 | 2×10-14W/Hz1/2 | 2.2×10-11W/Hz1/2 | 1.1×10-11W/Hz1/2 |
Sensitive Surface depth | 0.13" (3.3 mm) | 0.16" (4.1 mm) | 0.07" (1.8 mm) | 0.15" (3.7 mm) | 0.09" (2.2mm) |
Operating temperature | 10-40℃ | 10-50℃ |
Storage temperature | -20-70℃ | -25-70℃ |
Detector Net Weight | 0.10kg | 0.06kg | 0.10kg |
Appearance Dimensions | 2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.9 mm X 22.5 mm) | 2.79" X 1.96" X 0.8" (70.9 mm X 49.9 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm) |
Power Interface | Power supply | Power Switch | Signal Interface | Mounting Interface | Optical Interface |
LUMBERG R SMV3 FEMA LE | LDS12B(DP), ±12 VDC regulated linear power supply, 6W, 220VAC | Sliding Switch With LED Indicator | BNC Female socket | M4×2 | SM1× 1 SM0.5 × 1 |

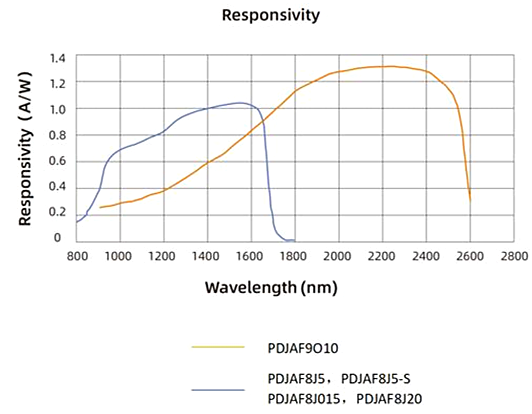

Responsivity Curve

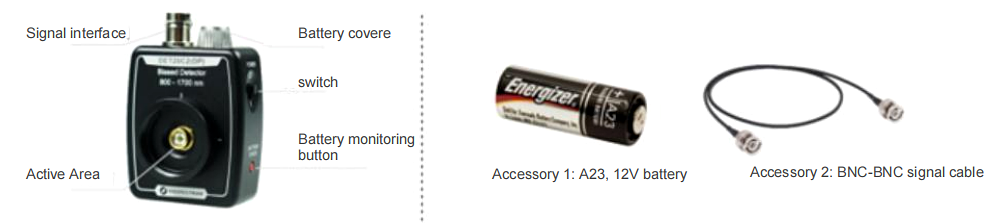

Product Configurations：
Attachment 1: Optional Configuration Table
Silicon-based amplified photodetector | Optional Configurations |
Product Name | Material | Type | Features | Wavelength Range Sensitive Area | Reserved Optional Configurations |
PD: "Photodetector" | J: InGaAs | A: Amplified Type | F: Fixed gain | 8J5：800-1700nm，Φ0.5mm | -s: 800-1700nm, Φ0.5mm for extremely weak light measurement |
|
|
|
| 8J015：800-1700nm，Φ150um |
|
|
|
|
| 8J20： 800-1700nm，Φ2.0mm |
|
|
|
|
| 9O10：900-2600nm，Φ1.0mm |
|
Attachment 2: Model and Part Number Cross-reference Table
Model | Part Number | Specs |
PDJAF8J5 | A80153440 | 800-1700nm InGaAs Amplified Photodetector, Photosensitive Area Φ0.5mm, Fixed gain 10kV/A, Bandwidth Range DC ～150MHz, Fast low-light measurement |
PDJAF8J5-S | A80153441 | 800-1700nm InGaAs Amplified Photodetector, Photosensitive Area Φ0.5mm, Fixed gain 1x1011V/A±10%, Bandwidth Range DC ～20MHz, Extremely weak light measurement |
PDJAF8J015 | A80153442 | 800-1700nm InGaAs Amplified Photodetector, Photosensitive Area Φ150mm, Fixed gain 5x104V/A, Bandwidth Range DC～380MHz, Fast low-light measurement |
PDJAF8J20 | A80153443 | 800-1700nm InGaAs Amplified Photodetector, Photosensitive Area Φ2.0mm, Fixed gain 500kV/A , Bandwidth Range DC ～5MHz, Large target surface |
PDJAF9O10 | A80153444 | 900-2600nm InGaAs Amplified Photodetector, Photosensitive Area Φ1.0mm, Fixed gain 1x104V/A, Bandwidth Range DC ～25kHz, Infrared extension |

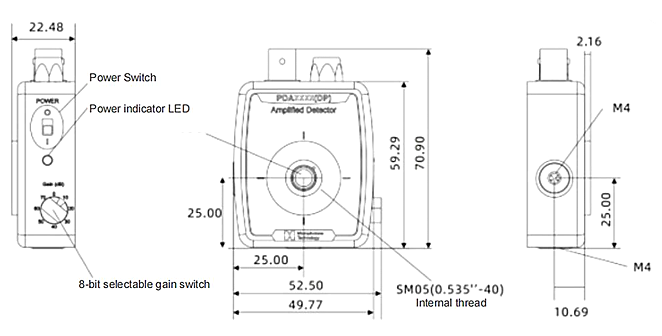

Dimension
Unit (mm)
Application
● Near-infrared light measurement
