The InGaAs amplified photodetector has a sensitive range of 800nm~1700nm, fixed gain, and can achieve quantitative photoelectric conversion. It has sufficient gain while ensuring high bandwidth performance. It is suitable for the development of photoelectric detection applications with weak light intensity and fast speed. It has excellent performance and high cost performance. It provides omnidirectional technical support and is often used in near-infrared light measurement.
Product model
| 800-1700nm InGaAs Amplified Photodetector-Fixed Gain [PDF] [RFQ] |
PDJAF8J5-S | Spectral Response 800-1700nm; Photosensitive size Φ0.5mm, , fixed gain 1×10¹¹V/A±10%, bandwidth 20MHz | Response wavelength: 800-1700nm Active area: 0.5mm Bandwidth: 20MHz Lead Time: 3-4 weeks |
Parameter
Features
● Sensing range of 800nm to 1700nm, often used in near-infrared light measurements
● Amplified detector, fixed gain, quantitative photoelectric conversion
● With sufficient gain
● At the same time, it guarantees high bandwidth performance and is suitable for the development of photoelectric detection applications with weak light intensity and fast speed
● Excellent performance, high cost performance, and comprehensive technical support
● Provide non-standard customization services
Key Parameter
Parameters | Value |
Wavelength range | 800-1700nm | 900-2600nm |
Photosensitive size | Φ0.5mm | Φ150um | Φ0.5mm | Φ2.0mm | Φ1.0mm |
Bandwidth range | DC～150MHz | DC～380MHz | DC～20MHz | DC～5MHz | DC～25MHz |
Gain | Hi-Z Load:10kV/A； 50Ω Load:5kV/A | Hi-Z Load: 5×104V/A； 50Ω Load:2.5×104V/A | 1×1011V/A±10% | Hi-Z Load:500kV/A； 50Ω Load: 175kV/A | Hi-Z Load: 1×104V/A； 50Ω Load:5×103V/A |
Signal Amplitude | Hi-Z Load: 0～10V； 50Ω Load: 0～5V | Hi-Z Load: 0～10V； 50Ω Load: 0～5V | 0~10V | Hi-Z Load:0～10V； 50Ω Load:0~3.5V | Hi-Z Load: 0～10V； 50Ω Load: 0～5V |
NEP | 1.2×10-11W/Hz1/2 | 1.0 × 10-13W/Hz1/2 | 2×10-14W/Hz1/2 | 2.2×10-11W/Hz1/2 | 1.1×10-11W/Hz1/2 |
Sensitive Surface depth | 0.13" (3.3 mm) | 0.16" (4.1 mm) | 0.07" (1.8 mm) | 0.15" (3.7 mm) | 0.09" (2.2mm) |
Operating temperature | 10-40℃ | 10-50℃ |
Storage temperature | -20-70℃ | -25-70℃ |
Detector Net Weight | 0.10kg | 0.06kg | 0.10kg |
Appearance Dimensions | 2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.9 mm X 22.5 mm) | 2.79" X 1.96" X 0.8" (70.9 mm X 49.9 mm X 22.5 mm) | 2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm) |
Power Interface | Power supply | Power Switch | Signal Interface | Mounting Interface | Optical Interface |
LUMBERG R SMV3 FEMA LE | LDS12B(DP), ±12 VDC regulated linear power supply, 6W, 220VAC | Sliding Switch With LED Indicator | BNC Female socket | M4×2 | SM1×1 SM0.5 ×1 |

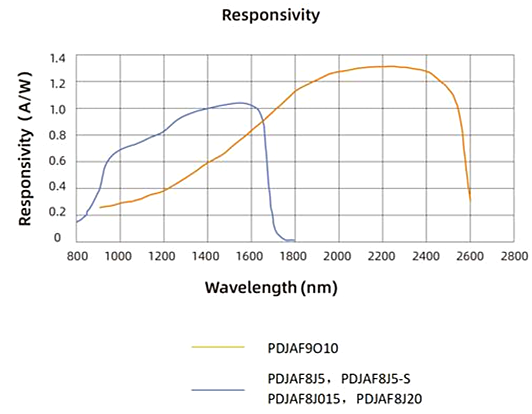

Responsivity Curve

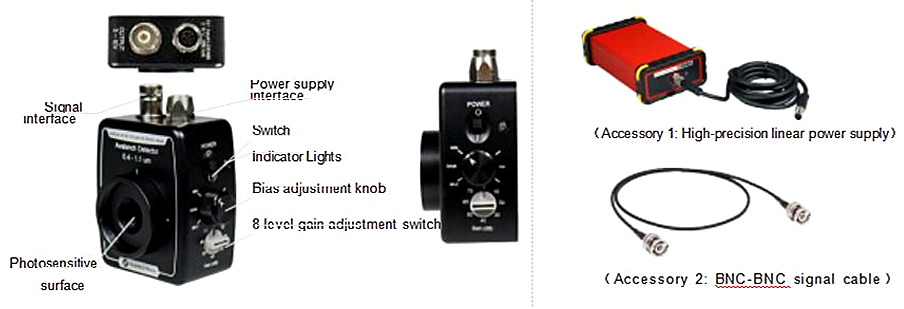

Dimension
Application
● Near-infrared light measurement
Product model

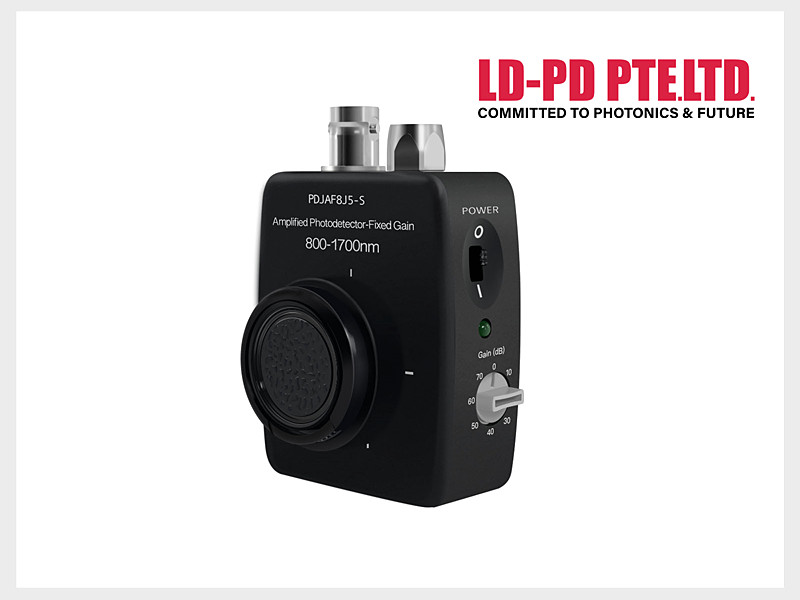

PDJAF8J5-SResponse wavelength: 800-1700nm
Active area: 0.5mm
Bandwidth: 20MHz
Lead Time: 3-4 weeks
Parameter
● Sensing range of 800nm to 1700nm, often used in near-infrared light measurements
● Amplified detector, fixed gain, quantitative photoelectric conversion
● With sufficient gain
● At the same time, it guarantees high bandwidth performance and is suitable for the development of photoelectric detection applications with weak light intensity and fast speed
● Excellent performance, high cost performance, and comprehensive technical support
● Provide non-standard customization services
Parameters
Value
Wavelength range
800-1700nm
900-2600nm
Photosensitive size
Φ0.5mm
Φ150um
Φ0.5mm
Φ2.0mm
Φ1.0mm
Bandwidth range
DC～150MHz
DC～380MHz
DC～20MHz
DC～5MHz
DC～25MHz
Gain
Hi-Z Load:10kV/A；
50Ω Load:5kV/A
Hi-Z Load: 5×104V/A；
50Ω Load:2.5×104V/A
1×1011V/A±10%
Hi-Z Load:500kV/A；
50Ω Load: 175kV/A
Hi-Z Load: 1×104V/A；
50Ω Load:5×103V/A
Signal Amplitude
Hi-Z Load: 0～10V；
50Ω Load: 0～5V
Hi-Z Load: 0～10V；
50Ω Load: 0～5V
0~10V
Hi-Z Load:0～10V；
50Ω Load:0~3.5V
Hi-Z Load: 0～10V；
50Ω Load: 0～5V
NEP
1.2×10-11W/Hz1/2
1.0 × 10-13W/Hz1/2
2×10-14W/Hz1/2
2.2×10-11W/Hz1/2
1.1×10-11W/Hz1/2
Sensitive Surface depth
0.13" (3.3 mm)
0.16" (4.1 mm)
0.07" (1.8 mm)
0.15" (3.7 mm)
0.09" (2.2mm)
Operating temperature
10-40℃
10-50℃
Storage temperature
-20-70℃
-25-70℃
Detector Net Weight
0.10kg
0.06kg
0.10kg
Appearance Dimensions
2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm)
2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm)
2.79" X 1.96" X 0.89" (70.9 mm X 49.9 mm X 22.5 mm)
2.79" X 1.96" X 0.8" (70.9 mm X 49.9 mm X 22.5 mm)
2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm)
Power Interface
Power supply
Power Switch
Signal Interface
Mounting Interface
Optical Interface
LUMBERG R SMV3 FEMA LE
LDS12B(DP), ±12 VDC regulated linear power supply, 6W, 220VAC
Sliding Switch
With LED Indicator
BNC Female socket
M4×2
SM1×1
SM0.5 ×1
Responsivity Curve
● Near-infrared light measurement
