Our InGaAs detectors have a sensitivity range of 800nm~1700nm and are commonly used for near-infrared light measurement; amplified detectors with 8 levels of adjustable gain and quantitative photoelectric conversion; wide dynamic range, suitable for various optoelectronic development scenarios, and widely used; the same model as THORLABS, seamlessly compatible, with more target surface sizes to choose from; excellent performance, high cost performance, and all-round technical support; non-standard customization services are provided.

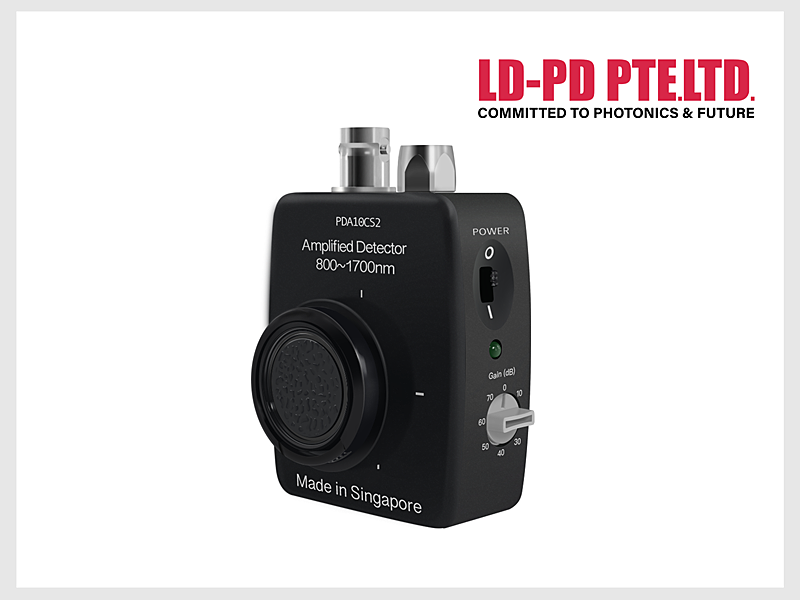

Product model
| 800~1700nm InGaAs Adjustable GAIN |
PDA10CS2 | Spectrum response range 800~1700nm, Active area φ1 .omm, Bandwidth range DC~13MHz, Response time constant 10ns | Response wavelength: 800-1700nm Active area: 1mm |
Parameter
Features
● InGaAs detector, with a sensitivity range of 800nm~1700nm, is commonly used for near-infrared light measurement;
● Amplified detector, 8-level adjustable gain, quantitative photoelectric conversion;
● Wide dynamic range, suitable for various optoelectronic development scenarios, widely used;
● Excellent performance, high cost performance, all-round technical support;
● Provide non-standard customized services.
Key Parameter
Common parameters
PN# | PDA10CS2(DP) | PDA20CS2(DP) | PDA30CS2(DP) | PDA50CS2(DP) | PDA80CS2(DP) | PDA100CS2(DP) |
Spectrum response range | 800~1700nm |
Active area | Φ1 .omm | Φ2.0mm | Φ3.0mm | Φ5.0mm | Φ8.0mm | Φ10.0mm |
Response time constant | 10ns | 25ns | 120ns | 300ns | 650ns | 1200ns |
Bandwidth range | DC~13MHz | DC~11MHz | DC~4MHz | DC~1MHz | DC~100KHz | DC~10KHz |
Gain range | Hi-Z load ：1.51kV/A～4.75MV/A；50Ω load：0.75kV/A~2.38 MV/A |
Signal amplitude | Hi-Z load：0～ 10V；50Ω load：0～ 5V |
Gain adjustment method | Rotary gear adjustment: 0~70dB, 10dB per gear, 8 gears in total. Bandwidth is inversely proportional to gain. |
Active area depth | 0.13" (3.3 mm) |
Detector net weight | 0.10kg |
Operating temperature | 10～40℃ |
Storage temperature | -20～ 70℃ |
Appearance size | 2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm) |
NEP | 6.1x10-11~2.28x10-12 W/Hz1/2 | 4.6x10-11~2.24x10-12 W/Hz1/2 | 3.8x10-11~2.17x10-12 W/Hz1/2 | 2.2x10-11~2.01x10-12 W/Hz1/2 | 1.5x10-11~1.57x 10-12 W/Hz1/2 | – |
Power supply interface | Power switch | Signal interface | Gain adjustment | Strut interface | Optical interface |
LUMBERG RSMV3 FEMALE | Slide switch with LED indicator | BNC female socket | 8-position knob | M4 X 2 | SM1 X1 SM0.5 X 1 |
Eight-level Quantitatively Adjustable Gain Parameters
0dB | 10dB | 20dB | 30dB |
Gain (Hi-Z) | 1.51X103V/A | Gain (Hi-Z) | 4.75X103V/A | Gain (Hi-Z) | 1.5X104V/A | Gain (Hi-Z) | 4.75X104V/A |
Gain (50Ω) | 0.75X103V/A | Gain (50Ω) | 2.38X103V/A | Gain (50Ω) | 0.75X104V/A | Gain (50Ω) | 2.38X104V/A |
Bandwidth (BW) | 12MHz | Bandwidth (BW) | 1.6MHz | Bandwidth (BW) | 1MHz | Bandwidth (BW) | 260kHz |
Noise (RMS) | 258μV | Noise (RMS) | 192μV | Noise (RMS) | 207μV | Noise (RMS) | 211μV |
40dB | 50dB | 60dB | 70dB |
Gain (Hi-Z) | 1.51X105V/A | Gain (Hi-Z) | 4.75X105V/A | Gain (Hi-Z) | 1.5X106V/A | Gain (Hi-Z) | 4.75X106V/A |
Gain (50Ω) | 0.75X105V/A | Gain (50Ω) | 2.38X105V/A | Gain (50Ω) | 0.75X106V/A | Gain (50Ω) | 2.38X106V/A |
Bandwidth (BW) | 90KHz | Bandwidth (BW) | 28KHz | Bandwidth (BW) | 9kHz | Bandwidth (BW) | 3kHz |
Noise (RMS) | 214μV | Noise (RMS) | 234μV | Noise (RMS) | 277μV | Noise (RMS) | 388μV |
Signal bias | ±8mV(Typ.) ，±12mV(Max) |

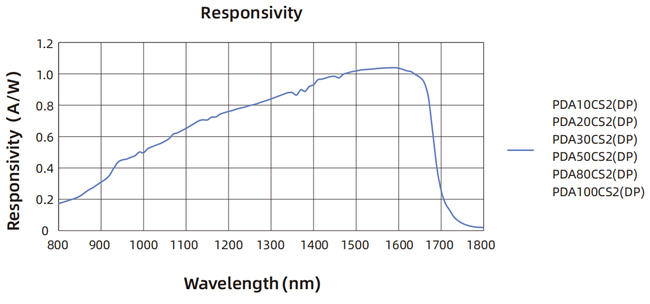

Response curve

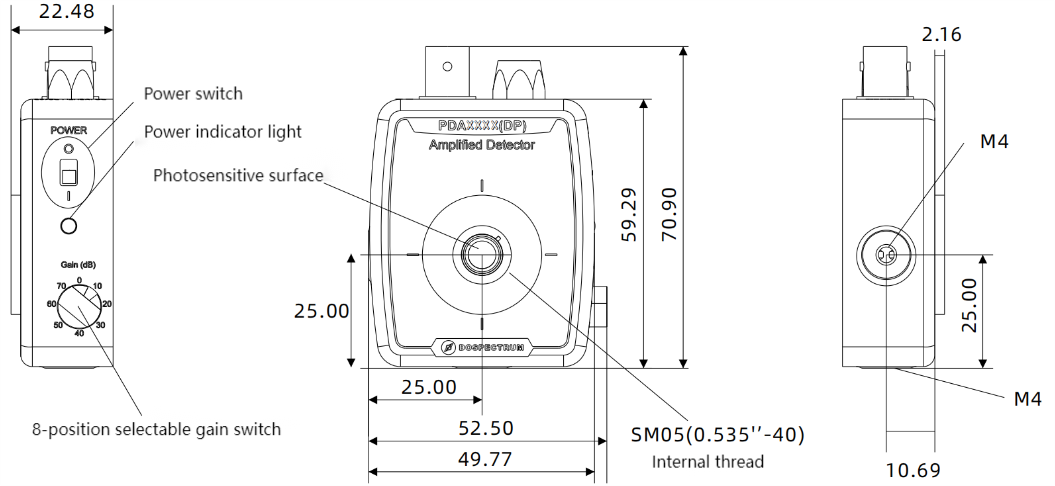

Dimension

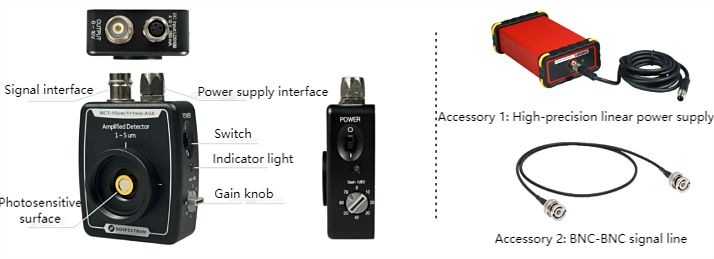

Product Configuration
Application
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
Ordering Info
PN# | Spectrum response range | Active area | Gain range | Characteristic |
PDA10CS2 | 800~1700nm | φ1 .omm | 0 to 70dB, 8-step quantized adjustable gain | Solebo-equivalent model |
PDA20CS2 | φ2 .omm |
PDA30CS2 | φ3.0mm | Extra-large target surface |
PDA50CS2 | φ5.0mm |
PDA80CS2 | φ8 .omm |
PDA100CS2 | φ10.0mm |
