LD-PD InGaAs detectors have a sensitivity range of 800~1700nm and are commonly used for visible and infrared light measurements; biased detectors have extremely low noise, fast response, no gain, and low cost, making them suitable for conventional photoelectric detection applications. Large target area detection; excellent performance, high cost performance, all-round technical support, and non-standard customization services.

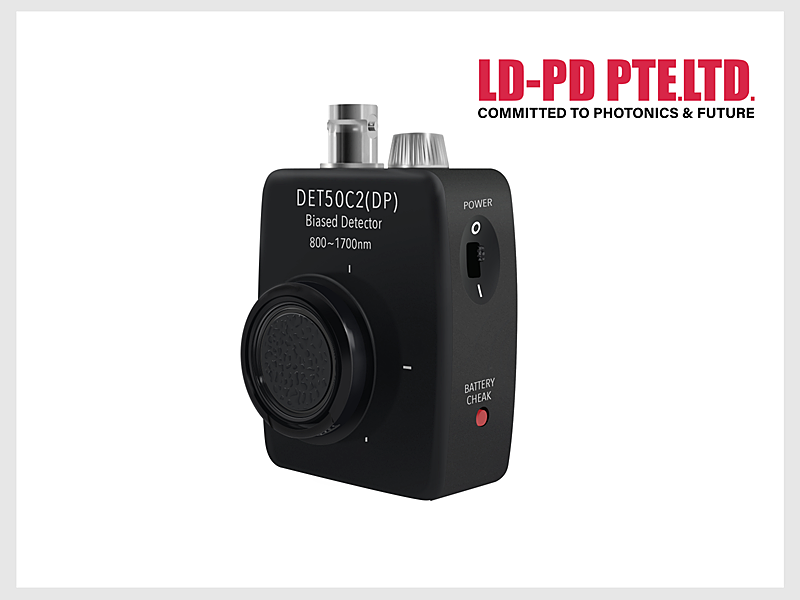

Product model
| 800~1700nm InGaAs Biased Conventional |
DET50C2(DP) | Spectrum response range 800~1700nm, Sensitive size Φ5mm, Bandwidth 1.2MHz | Response wavelength: 800-1700nm Bandwidth: 1.2MHz |
Parameter
Features
● InGaAs detector, with a sensitivity range of 800nm~1700nm, is commonly used for near-infrared light measurement;
● Biased detector, extremely low noise, fast response, no gain; low cost, suitable for conventional photoelectric detection applications;
● Large target area detection;
● Excellent performance, high cost performance, all-round technical support;
Specifications
PN# | DET50C2(DP) | DET80C2(DP) | DET100C2(DP) |
Sensitive range | 800~1700nm |
Sensitive size | Φ5mm | Φ8mm | Φ10mm |
Bandwidth | 1.2MHz |
| 0.035MHz |
Rise time (@50Ω) | 300ns |
| 10us |
Dark current | 10nA(Typ.) | 15nA(Typ.) | 20nA(Typ.) |
Junction capacitance | 2nF(Typ.) | 5nF(Typ.) | 8nF(Typ.) |
Bias voltage | 0~2V |
Output current | 0~5mA |
Photosensitive surface depth | 0. 07" (1.7 mm) |
Detector net weight | 0.1kg |
Operating temperature | -40～ 85℃ |
Storage temperature | -20~80℃ |
Appearance size | 2.79" x 1.96" x 0.89" (70.9 mm X 49.8 mm x 22.5 mm) |
Battery | Power switch | Signal interface | Battery Monitoring | Support rod interface | Optical interface |
A23, 12VDC, 40mAh | Slide switch | BNC female socket | Momentary Push Buttons | M4 x 2 | SM1 x 1 SM0.5 x 1 |

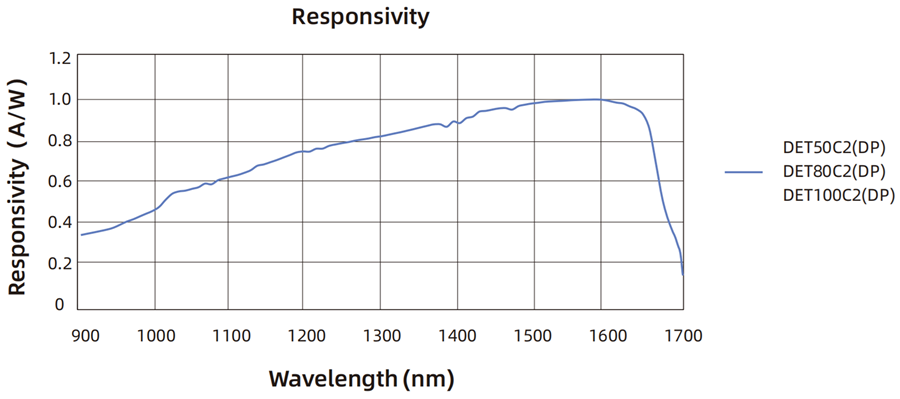

Spectral response curve

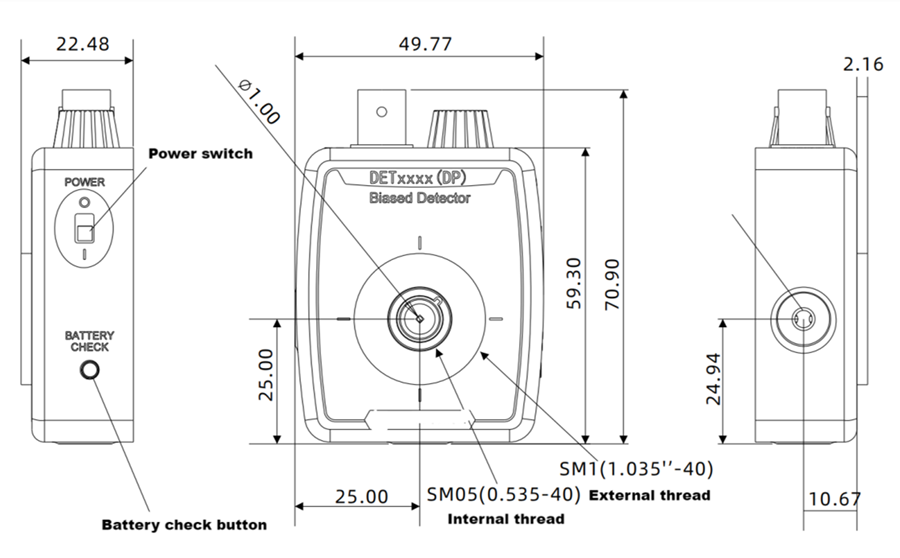

Dimension
Accessories Instructions
Application
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
Ordering Info
PN# | Spectrum response range | Active area | Rise time | Bandwidth | Characteristic |
DET50C2(DP) | 800~ 1700nm | φ5mm | 300ns | 1.2MHz | Large target area detection |
DET100C2(DP) | φ10mm | 10us | 0.035MHz |
LD-PD InGaAs detectors have a sensitivity range of 800~1700nm and are commonly used for visible and infrared light measurements; biased detectors have extremely low noise, fast response, no gain, and low cost, making them suitable for conventional photoelectric detection applications. Large target area detection; excellent performance, high cost performance, all-round technical support, and non-standard customization services.
Product model
DET50C2(DP)Response wavelength: 800-1700nm
Bandwidth: 1.2MHz
Parameter
● InGaAs detector, with a sensitivity range of 800nm~1700nm, is commonly used for near-infrared light measurement;
● Biased detector, extremely low noise, fast response, no gain; low cost, suitable for conventional photoelectric detection applications;
● Large target area detection;
● Excellent performance, high cost performance, all-round technical support;
PN#
DET50C2(DP)
DET80C2(DP)
DET100C2(DP)
Sensitive range
800~1700nm
Sensitive size
Φ5mm
Φ8mm
Φ10mm
Bandwidth
1.2MHz
0.035MHz
Rise time (@50Ω)
300ns
10us
Dark current
10nA(Typ.)
15nA(Typ.)
20nA(Typ.)
Junction capacitance
2nF(Typ.)
5nF(Typ.)
8nF(Typ.)
Bias voltage
0~2V
Output current
0~5mA
Photosensitive surface depth
0. 07" (1.7 mm)
Detector net weight
0.1kg
Operating temperature
-40～ 85℃
Storage temperature
-20~80℃
Appearance size
2.79" x 1.96" x 0.89" (70.9 mm X 49.8 mm x 22.5 mm)
Battery
Power switch
Signal interface
Battery Monitoring
Support rod interface
Optical interface
A23, 12VDC, 40mAh
Slide switch
BNC female socket
Momentary Push Buttons
M4 x 2
SM1 x 1
SM0.5 x 1
Spectral response curve

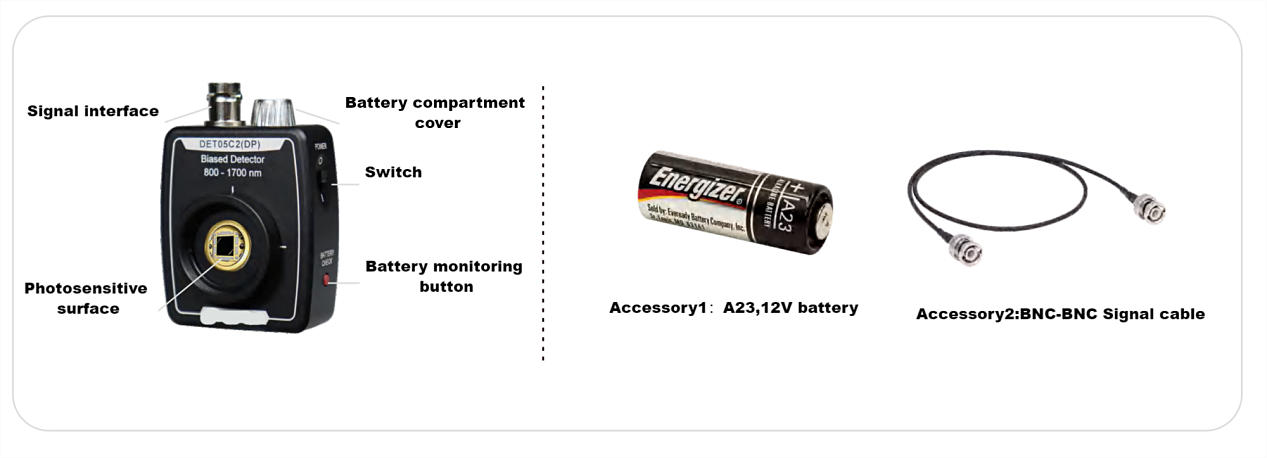

Accessories Instructions
