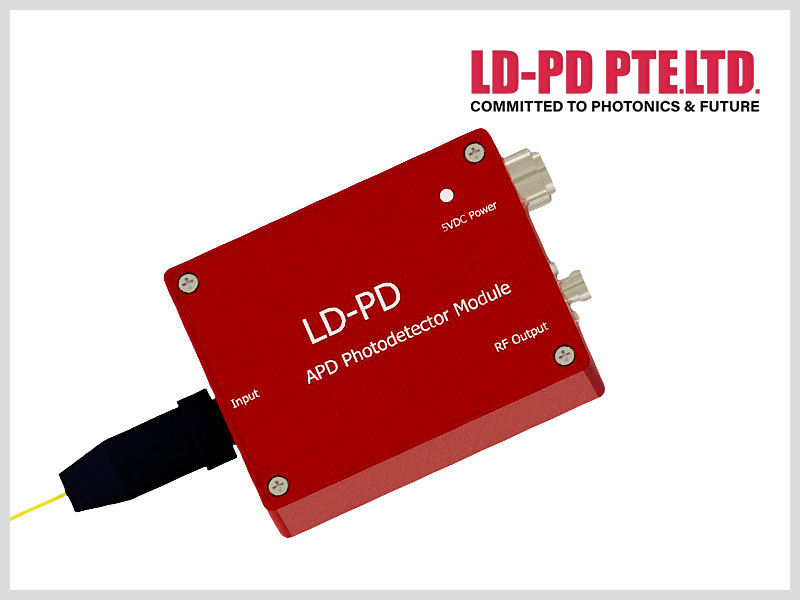

High-speed and low-noise avalanche photoelectric balance detection module integrates low-noise APD detector, low-noise broadband transimpedance amplifier, ultra- low noise isolation power supply, high-voltage power supply; isolation power supply ensures that the output signal is not affected by external power supply; APD temperature compensation improves the stability of detection module. Avalanche photodetectors are characterized by high gain, high sensitivity, high bandwidth and low noise.
Product model
| 5GHz InGaAs APD Photodetector |
APD-5G-A | Response wavelngth 800-1700nm, Bandwidth 5GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 5GHz |
| 2.5GHz InGaAs APD Photodetector |
APD-2.5G-A | Response wavelngth 800-1700nm, Bandwidth 2.5GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 2.5GHz |
| 2GHz InGaAs APD Photodetector |
APD-2G-A | Response wavelngth 800-1700nm, Bandwidth 2GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 2GHz |
| 1.5GHz InGaAs APD Photodetector |
APD-1.5G-A | Response wavelngth 800-1700nm, Bandwidth 1.5GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 1.5GHz |
| 1.2GHz InGaAs APD Photodetector |
APD-1.2G-A | Response wavelngth 800-1700nm, Bandwidth 1.2GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 1.2GHz |
| 1GHz InGaAs APD Photodetector |
APD-1G-A | Response wavelngth 800-1700nm, Bandwidth 1GHz, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 1GHz |
| 800MHz InGaAs APD Photodetector |
APD-800M-A | Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 800MHz |
| 500MHz InGaAs APD Photodetector |
APD-500M-A | Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 500MHz |
| 400MHz InGaAs APD Photodetector |
APD-400M-A | Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 400MHz |
| 300MHz InGaAs APD Photodetector |
APD-300M-A | Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 300MHz |
| 200MHz InGaAs APD Photodetector |
APD-200M-A | Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 200MHz |
| 100MHz InGaAs APD Photodetector |
APD-100M-A | Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 9V/W, Optical Input FC/APC | Response wavelength: 800-1700nm Bandwidth: 100MHz |
Parameter
Features
● Low Noise and High Gain
● Built-in high voltage power supply
● Temperature compensation
● Compact structure
● Built-in low noise isolation power supply
Specifications
Product Model | APD-100M-A | APD-200M-A | APD-300M-A | APD-400M-A | APD-500M-A | APD-800M-A | APD-1G-A | APD-1.2G-A | APD-1.5G-A | APD-2G-A | APD-2.5G-A | APD-5G-A | unit |
Detector | InGaAs |
|
Wavelength | 800~1700 | nm |
Bandwidth | 100M | 200M | 300M | 400M | 500M | 800M | 1G | 1.2G | 1.5G | 2G | 2.5G | 5G | Hz |
Detector Responsivity | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | V/W |
Transimpedance Gain | 300K | 300K | 300K | 100K | 50K | 300K | 300K | 300K | 200K | 150K | 150K | 30K | V/W |
Saturated Input Optical Power | 13 | 13 | 13 | 39 | 78 | 13 | 13 | 13 | 20 | 26 | 26 | 78 | uW |
NEP | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | pW/√(Hz) |
Output Impedance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | Ω |
Output Coupling Mode | DC/AC | DC/AC | DC/AC | DC/AC | DC | AC | AC | AC | AC | AC | AC | AC |
|
Supply Voltage | 5 | 5 | 5 | 5 | 5 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | V |
Supply Current | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | 0.5(max) | A |
Optical Input | FC/APC（or Free Space） | FC/APC |
|
Radio Frequency Output | SMA | SMA |
|
Shape Size | 65*50*20 | 65*50*25 | 80*90*25 | mm |
Test Result

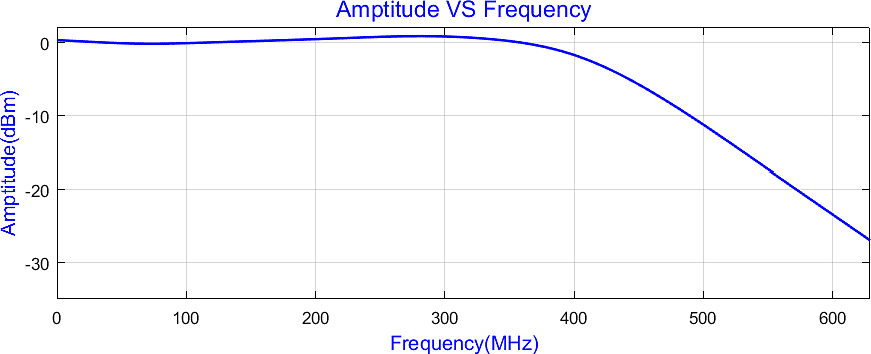

Bandwidth curve of 400MHz Detector

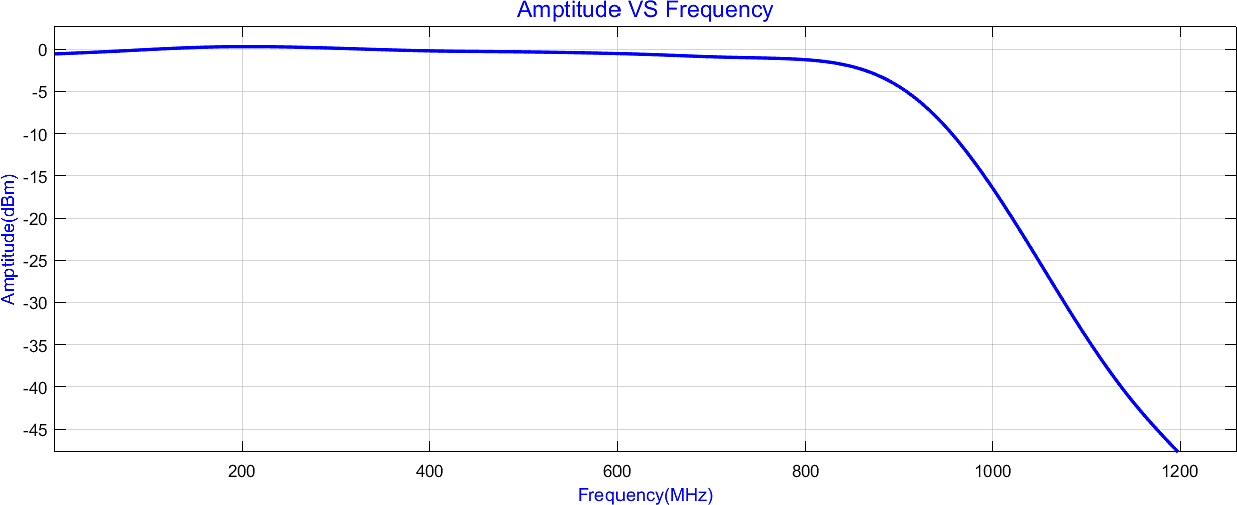

Bandwidth curve of 800MHz Detector

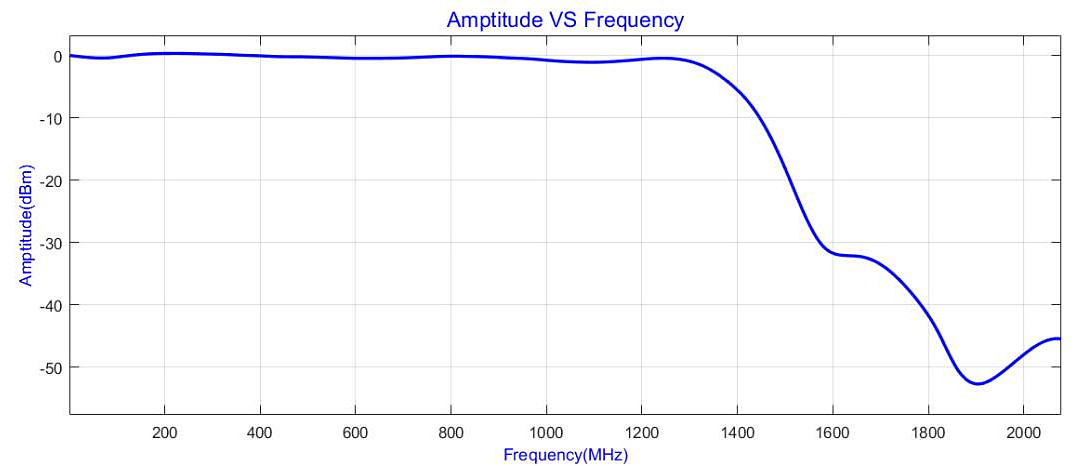

Bandwidth curve of 1400MHz Detector
Application
● Optical Fiber Sensing
● Optical Fiber Communication
● Laser Ranging
● Spectrometry
