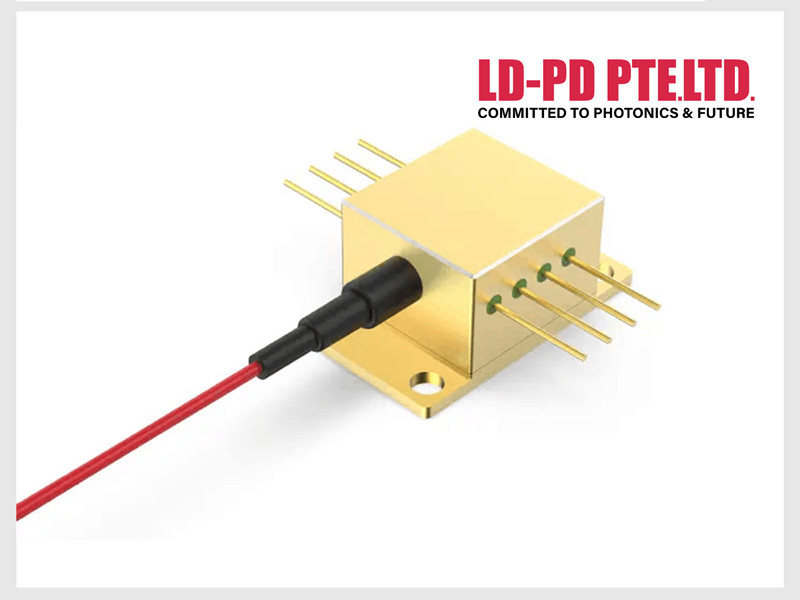

The SPD6522Q is a InGaAs SPAD detector module，Operating wavelength 0.95μm～1.65μm,Designed for single photon detection applications, Internally integrated three-stage cooler,Butterfly-shaped hermetic packaged module with pigtail.
Product model
| InGaAs SPAD detector module |
SPD6522Q-SM-FC/UPC(1.0m) | Operating wavelength 950nm ~ 1650nm; Material InGaAs, Responsivity 8A/W@1550nm,Butterfly-shaped hermetic packaged module with pigtail. | Response wavelength: 950-1650nm Material: InGaAs |
Parameter
Key Parameter
Main Optoelectronic Indicators
1. Linear mode parameters
Parameters | Test conditions（unless otherwise specified，TC =25±5℃) | Min | Max | Unit |
Effective detection surface diameter d | — | 25 | — | μm |
Spectral response range | — | 950 | 1650 | nm |
Reverse breakdown voltage VBR | IR=10 μA ，Φe=0 | 60 | 85 | V |
Responsivity Re | Φe=1μW，VR=(VBR-1)V, λ=1550 nm±50 nm | 8 |
| A/W |
Dark current ID | VDC =(VBR-1) V，Φe=0 |
| 1 | nA |
Capacitance Ctot | VDC =(VBR-1) V，f=1MHz | — | 0.2 | pF |
Breakdown voltage temperature coefficient η | TC =-45～+30℃ , IR =10μA，φe=0 | 0.10 | 0.2 | V/℃ |
2. Geiger Mode Parameters
Parameters | Test Conditions | Min | Max | Unit |
Single photon detection efficiency PDE | TA = -40±5℃, μ=1, fg = 1.0 GHz, fP = 500 kHz, DCR ≤ 2.5 kHz ，λ = 1.55μm | 10 |
| % |
Dark count rate DCR | TA = -40±5℃, fg = 1.0GHz， SPDE = 10%±0.5 % ，λ = 1.55μm |
| 2.5 | kHz |
After pulse probability APP (500 ns) | TA = -40±5℃, μ=1, fg = 1.0GHz, fP = 500 kHz, DCR ≤ 3.0 kHz, SPDE = 10% ，λ = 1.55μm |
| 4 | %
|
Time jitter TJ | SPDE=10% |
| 300 | ps |
Note: λ is the incident light wavelength, Tₐ is the test temperature value, μ is the average number of photons per pulse, fg is the gating signal frequency, and fₚ is the optical pulse signal frequency.
Absolute Maximum Ratings and Recommended Operating Conditions
Item | Parameter | Rating |
Absolute Maximum Ratings | 1 | Storage temperatureTSTG | -50℃~+85℃ |
2 | Operating environment temperatureTC | -50℃~60℃ |
3 | Soldering temperatureTsld（time） | 260℃（10s） |
4 | Reverse DC bias voltage VDC | VBR+5 V |
5 | Input optical powerφe（continuous） | 1 mW |
6 | Forward currentIF（continuous） | 200 μA |
7 | Electrostatic discharge sensitivityESD | ≥300 V |
8 | Pigtail pulling force | 3.0 N |
9 | TEC voltage | 11.9 V |
10 | TEC current | 0.8 A |
No. | Parameters | Rated value |
Recommended working conditions | 1 | APD chip operating temperature Tth | -50℃～-30℃ |
| 2 | Reverse DC bias voltage VDC | VBR+1V～VBR+5V |
Typical characteristic curve
Figure 1 Photocurrent and dark current curves

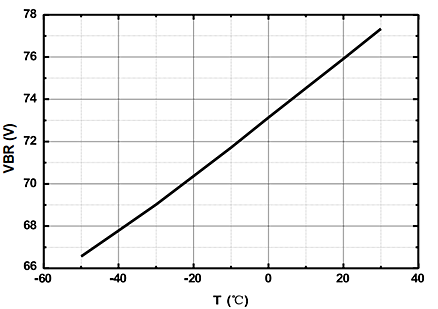

Figure 2 Breakdown voltage temperature coefficient
Dimensions and Pin definitions
Package Outline,Dimensions
Unit: mm

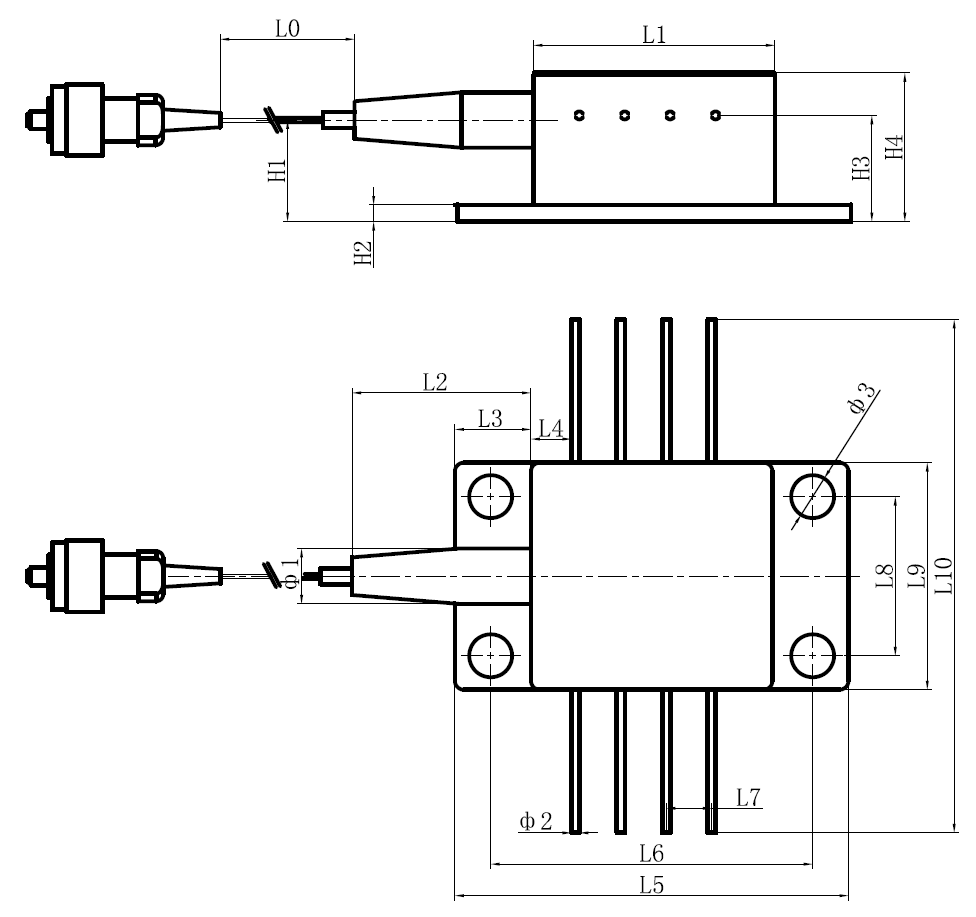

Figure 2 Product Outline
Product dimensions see Table 2
Symbol | Min. | Nominal | Max. | Symbol | Min. | Nominal | Max. | Symbol | Min. | Nominal | Max. |
H1 | 6.0 | - | 6.6 | L2 | 10.0 | - | 30.0 | L8 | 8.6 | - | 9.2 |
H2 | 0.8 | - | 1.2 | L3 | 4.0 | - | 4.6 | L9 | 12.4 | - | 13.0 |
H3 | 6.1 | - | 6.6 | L4 | 2.1 | - | 2.5 | L10 | 28.4 | - | 29.0 |
H4 | 9.1 | - | 10.5 | L5 | 21.7 | - | 22.3 | ф1 | 3.0 | - | 6.6 |
L0 | 1000.0 | - | - | L6 | 17.8 | - | 18.2 | Ф2 | 0.35 | - | 0.50 |
L1 | 13.2 | - | 13.8 | L7 | - | 2.54 | - | Ф3 | 2.2 | - | 2.6 |
Equivalent Circuit and Pin Definitions

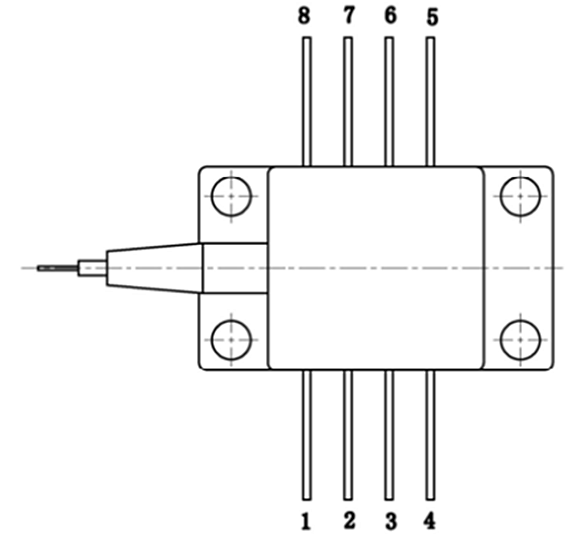

Figure 4 Pin arrangement and numbering (top view)
PIN# | Function | PIN# | Function |
1 | APD_P | 5 | TEC- |
2 | Signal Sampling Port (OUT) | 6 | R_th |
3 | NC | 7 | R_th |
4 | APD_N | 8 | TEC+ |
TEC\NTC Electrical parameters
NTC (Thermistor): RT=10 kΩ @ 25℃, β=3450,5%.
TEC (Thermoelectric Cooler): IMAX=0.8 A, VMAX=11.9 V, THMAX=200℃
Ordering Info
If there are no special requirements, the fiber interface of the SPD6522Q device is G657A2 single-mode fiber (0.9mm tight-buffered protective tube), FC/UPC connector, and fiber length 1.0m, that is, the detailed order model is SPD6522Q.

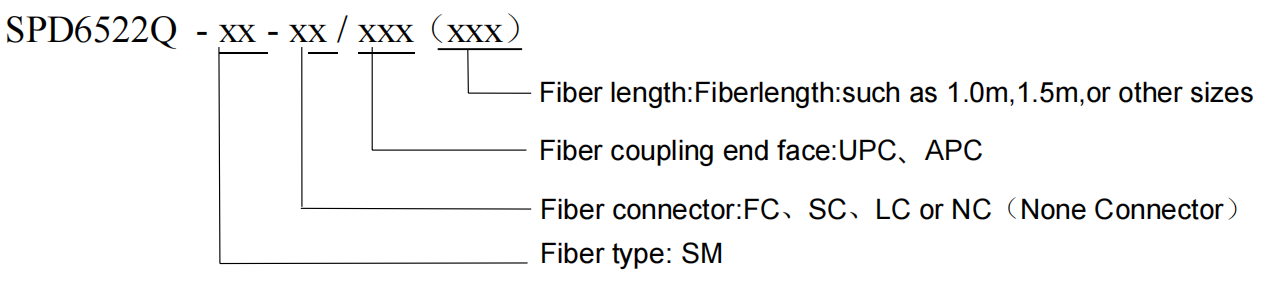

If the fiber specifications, length, connector, etc. required for the ordered product are inconsistent with this product, please follow the following format:
Note:
● The product is an electrostatic sensitive device, and ESD protection must be taken during storage and use.
● The bending radius of the product fiber is not less than 30mm. Avoid fiber breakage and contamination or damage to the connector during storage and use.
● The product requires external refrigeration. The clamping carrier used for refrigeration needs to be made of a material with good thermal conductivity, keep the cavity wall at one end of the device lead and the contact surface of the clamping carrier tightly matched, and apply thermal conductive material on the contact surface of the two.
● The product should be stored in a clean environment with ventilation and no corrosive gas at a temperature of -10~+40℃ and a relative humidity of no more than 80%.
Product model
SPD6522Q-SM-FC/UPC(1.0m)Response wavelength: 950-1650nm
Material: InGaAs
Parameter
Main Optoelectronic Indicators
1. Linear mode parameters
Parameters
Test conditions（unless otherwise specified，TC =25±5℃)
Min
Max
Unit
Effective detection surface diameter d
—
25
—
μm
Spectral response range
—
950
1650
nm
Reverse breakdown voltage VBR
IR=10 μA ，Φe=0
60
85
V
Responsivity Re
Φe=1μW，VR=(VBR-1)V, λ=1550 nm±50 nm
8
A/W
Dark current ID
VDC =(VBR-1) V，Φe=0
1
nA
Capacitance Ctot
VDC =(VBR-1) V，f=1MHz
—
0.2
pF
Breakdown voltage temperature coefficient η
TC =-45～+30℃ , IR =10μA，φe=0
0.10
0.2
V/℃
2. Geiger Mode Parameters
Parameters
Test Conditions
Min
Max
Unit
Single photon detection efficiency PDE
TA = -40±5℃, μ=1, fg = 1.0 GHz, fP = 500 kHz, DCR ≤ 2.5 kHz ，λ = 1.55μm
10
%
Dark count rate DCR
TA = -40±5℃, fg = 1.0GHz，
SPDE = 10%±0.5 % ，λ = 1.55μm
2.5
kHz
After pulse probability APP (500 ns)
TA = -40±5℃, μ=1, fg = 1.0GHz, fP = 500 kHz,
DCR ≤ 3.0 kHz, SPDE = 10% ，λ = 1.55μm
4
%
Time jitter TJ
SPDE=10%
300
ps
Note: λ is the incident light wavelength, Tₐ is the test temperature value, μ is the average number of photons per pulse, fg is the gating signal frequency, and fₚ is the optical pulse signal frequency.
