InGaAs PD Module

High speed and low noise balance photo detector consists of two matched ultra-low noise analog photodiodes, a low noise broadband transimpedance amplifier and Ultra Low Noise power supply. Due to high gain, high sensitivity, high bandwidth, low noise, and high common mode rejection ratio, the high speed and low noise balance photo detector can effectively reduce the commonmode noise, and improve the signal-to-noise ratio of the system.

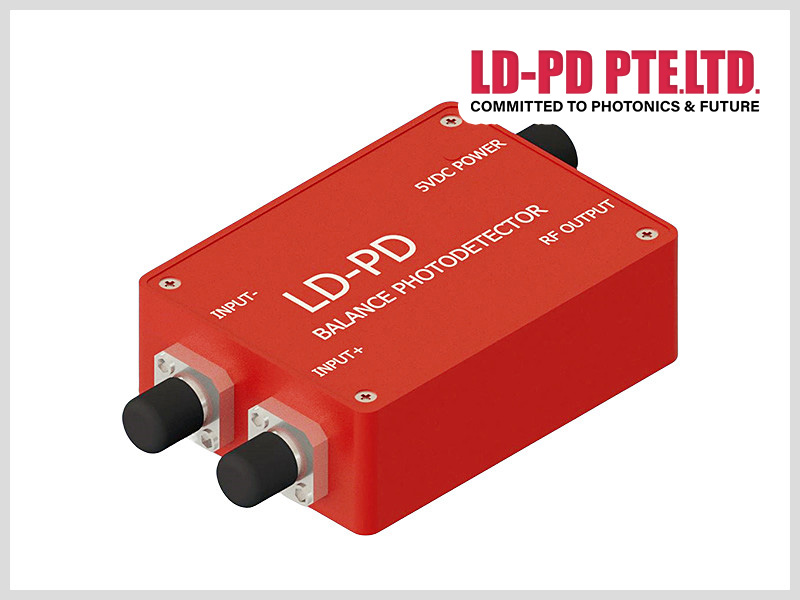

Product model

2.5GHz InGaAs Balance Photodetector

MBD-2.5G-A

Response wavelngth 800-1700nm, Bandwidth 2.5GHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2GHz InGaAs Balance Photodetector

MBD-2G-A

Response wavelngth 800-1700nm, Bandwidth 2GHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs Balance Photodetector

MBD-1.5G-A

Response wavelngth 800-1700nm, Bandwidth 1.5GHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1GHz InGaAs Balance Photodetector

MBD-1G-A

Response wavelngth 800-1700nm, Bandwidth 1GHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs Balance Photodetector

MBD-800M-A

Response wavelngth 800-1700nm, Bandwidth 800MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs Balance Photodetector

MBD-500M-A

Response wavelngth 800-1700nm, Bandwidth 500MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs Balance Photodetector

MBD-400M-A

Response wavelngth 800-1700nm, Bandwidth 400MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Balance Photodetector

MBD-300M-A

Response wavelngth 800-1700nm, Bandwidth 300MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Balance Photodetector

MBD-200M-A

Response wavelngth 800-1700nm, Bandwidth 200MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs Balance Photodetector

MBD-100M-A

Response wavelngth 800-1700nm, Bandwidth 100MHz, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise

● High Bandwidth

● High Transimpedance Gain

● Compact Structure

● Built-in low noise isolation

● power supplly

Specifications

Product Model	MBD-100M-A	MBD-200M-A	MBD-300M-A	MBD-400M-A	MBD-500M-A	MBD-800M-A	MBD-1G-A	MBD-1.5G-A	MBD-2G-A	MBD-2.5G-A	Unit
Detector Model	InGaAs
Wavelength	800~1700										nm
Bandwidth	100M	200M	300M	400M	500M	800M	1G	1.5G	2G	2.5G	Hz
Detector Responsivity	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	A/W@1550nm
Transimpedance Gain	30K	30K	30K	10K	5K	30K	30K	30K	15K	15K	V/A
Saturated Input Optical Power	140	140	140	420	840	140	140	140	280	280	μW
NEP	5	5	5	7	7	9	9	9	9	9	pW/Sqrt(Hz)
CMRR	>30	>30	>30	>30	>30	>30	>30	>30	>30	>30	dB
Output Impedance	50	50	50	50	50	50	50	50	50	50	Ω
Output Coupling Mode	DC/AC	DC/AC	DC/AC	DC/AC	DC	AC	AC	AC	AC	DC
Supply Voltage	5	5	5	5	5	12	12	12	12	12	V
Supply Current	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	A
Optical Input	FC/APC（or Free Space ）
Radio Frequency Output	SMA
Shape Size	624725					755525					mm

Test Result

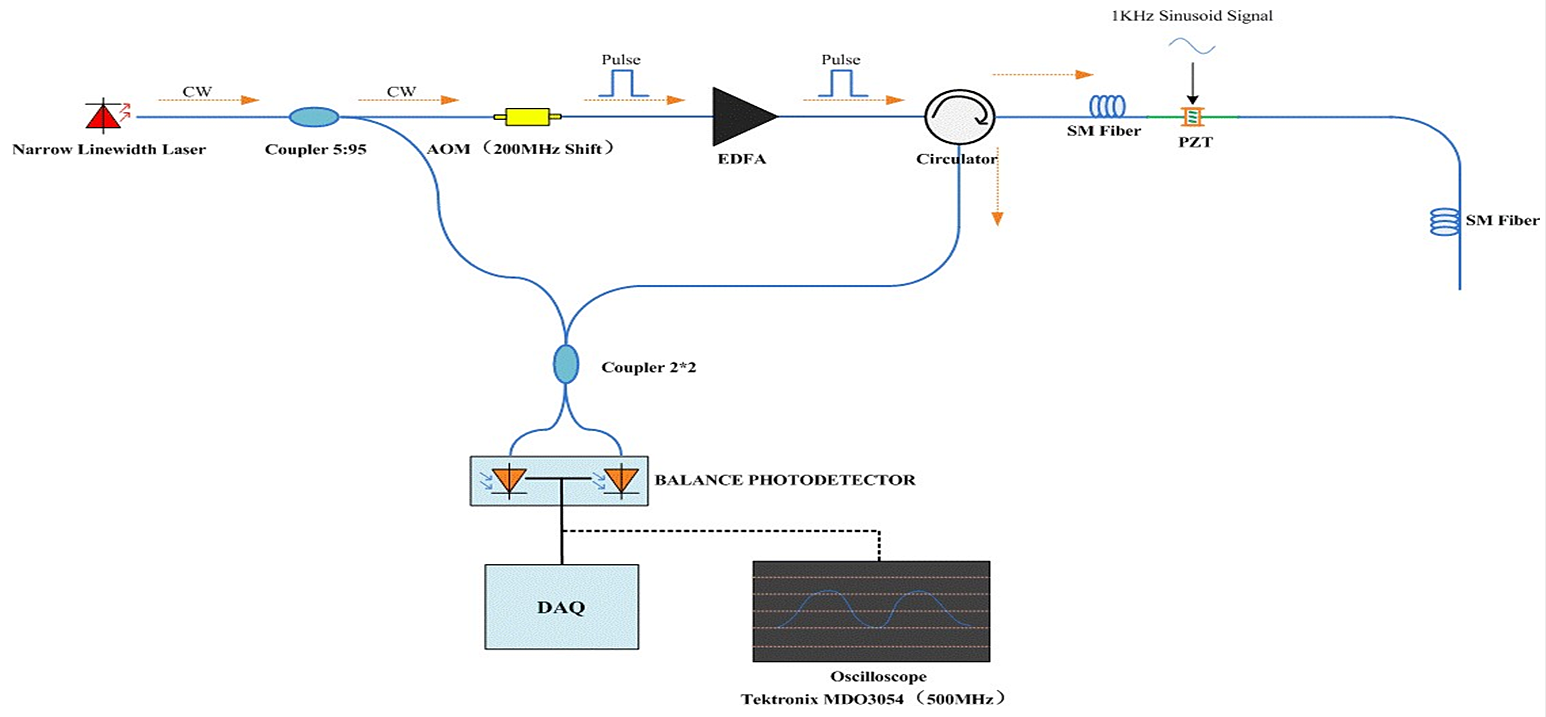

Optical path diagram of coherent detection

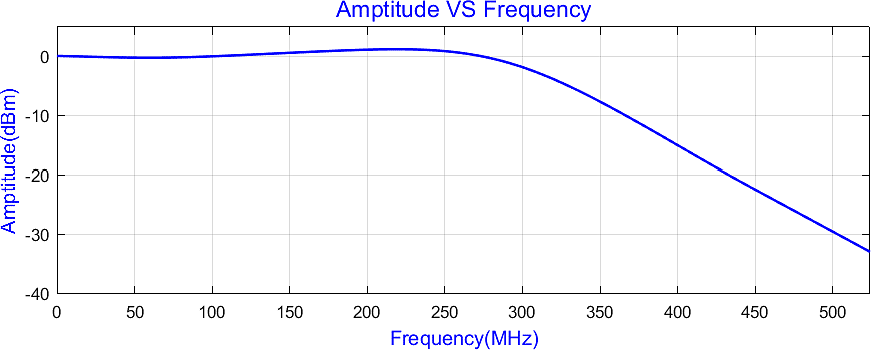

Bandwidth curve of 300MHz Balance detector

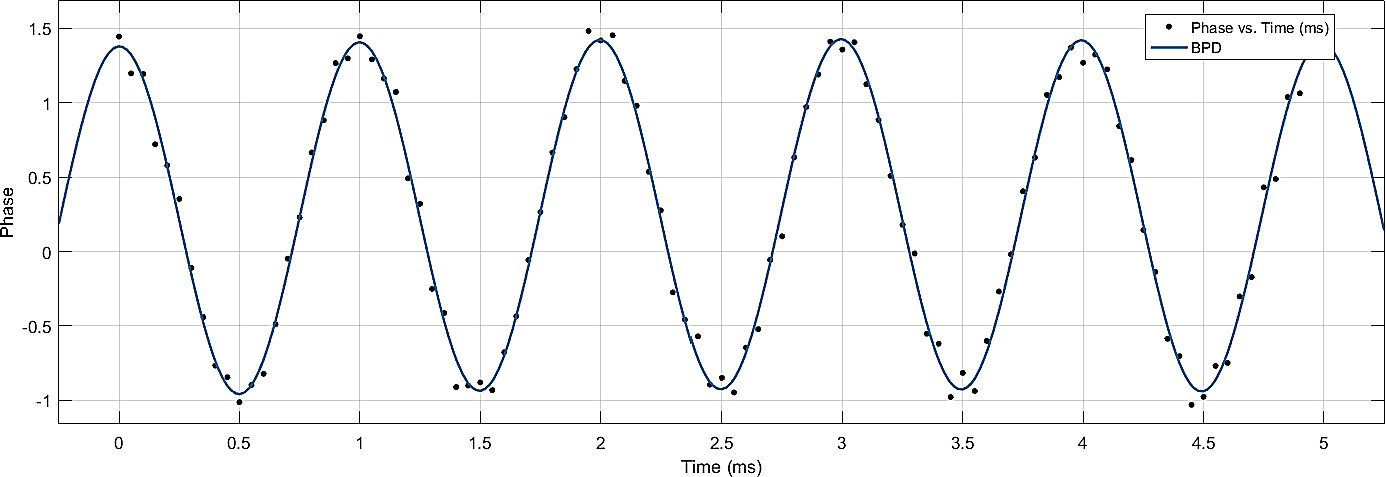

Demodulation phase of PZT vibration point on optical fiber （1KHz）

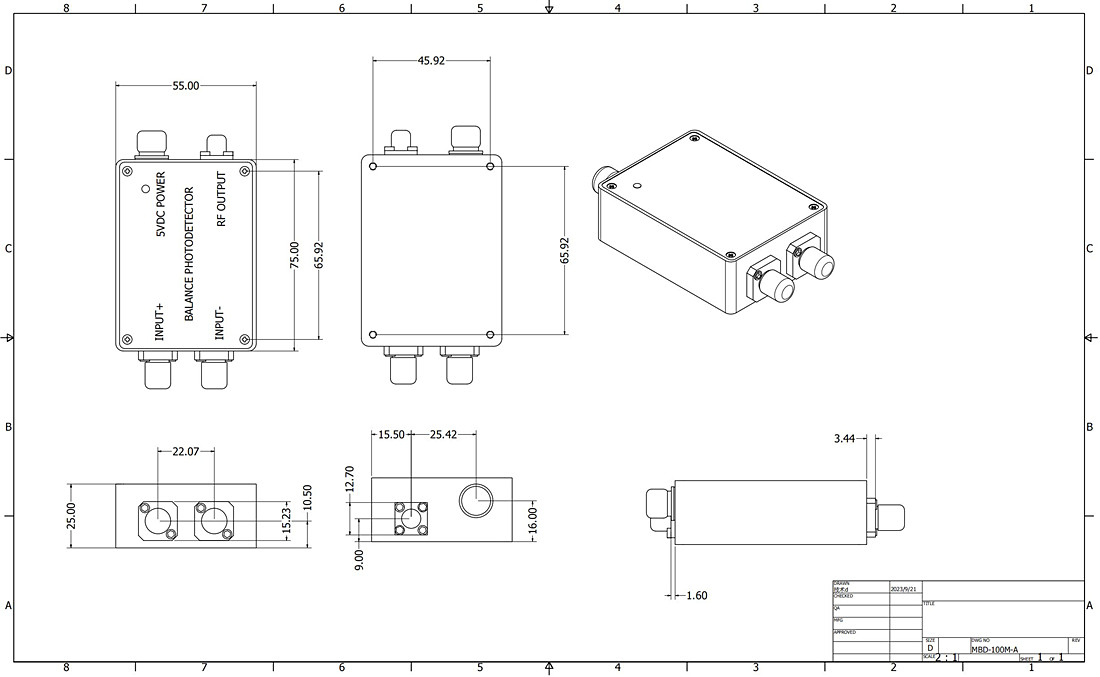

Package Size

Unit（mm）

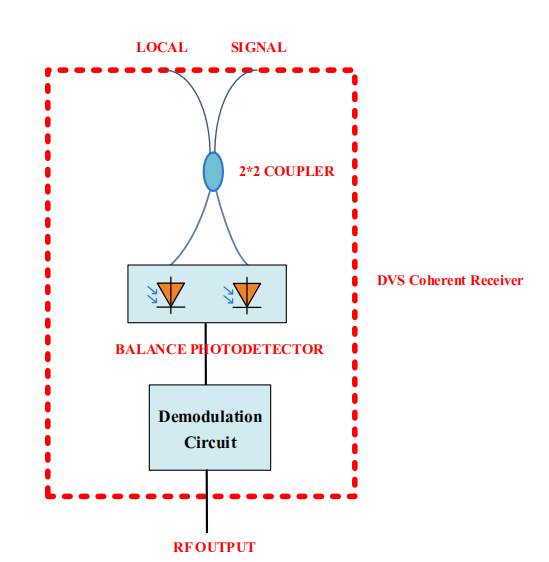

Internal block diagram of the module

Application

● Optical Fiber Sensing

● Doppler Wind Lidar

● OCT

● Laser Ranging

● Spectrometry
