InGaAs PD Module

Two matching ultra-low noise analog PIN detectors and low noise broadband transimpedance amplifiers are integrated into the butterfly packaged optoelectronic balance detector, which are powered by a single power supply. It can effectively reduce the common mode noise of the signal and improve the signal-to-noise ratio of the system. The detector has both the performance of the original module and the advantages of small size, light weight and low power consumption, and is particularly suitable for module and system integration.

Notice: We only sell InGaAs Butterfly Balance Photodetector not include the driving Board.

Product model

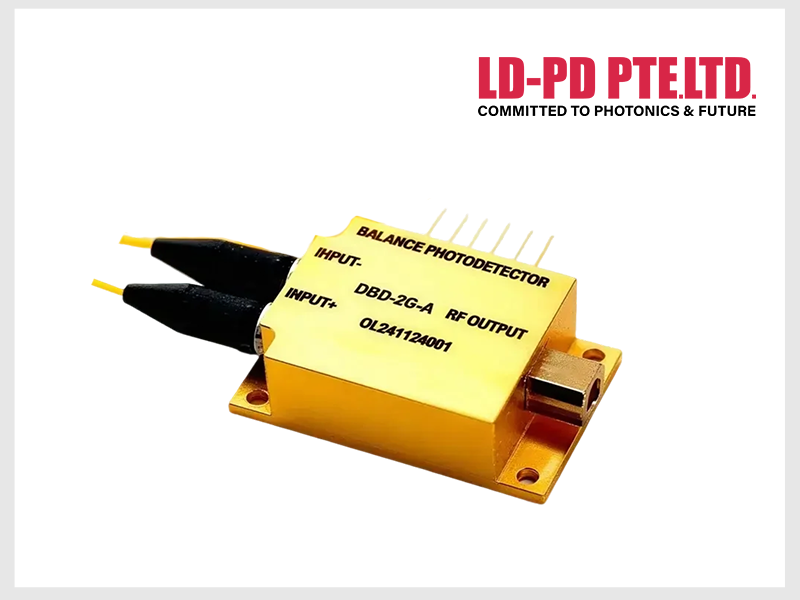

2GHz InGaAs Butterfly Balance Photodetector

DBD-2G-A

Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1GHz InGaAs Butterfly Balance Photodetector

DBD-1G-A

Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1GHz

400MHz InGaAs Butterfly Balance Photodetector

DBD-400M-A

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Butterfly Balance Photodetector

DBD-300M-A

Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Butterfly Balance Photodetector

DBD-200M-A

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs Butterfly Balance Photodetector

DBD-100M-A

Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input SM FC/APC

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise

● High Bandwidth

● High Transimpedance Gain

● Compact Structure

● Built-in low noise isolation

● Power supply

Specifications

Product Model	DBD-100M-A	DBD-200M-A	DBD-300M-A	DBD-400M-A	DBD-1G-A	DBD-2G-A	Unit
Detector Model	InGaAs
Wavelength	800~1700						nm
Bandwidth	100M	200M	300M	400M	1G	2G	Hz
Detector Responsivity	0.95	0.95	0.95	0.95	0.95	0.95	A/W@1550nm
Transimpedance Gain	30K	30K	30K	10K	30K	15K	V/A
CMRR	>30	>30	>30	>30	>30	>30	dB
Saturated Input Optical Power	130	130	130	390	130	260	μW
NEP	5	5	5	7	9	9	pW/Sqrt(Hz)
Output Impedance	50	50	50	50	50	50	Ω
Output Coupling Mode	DC/AC	DC/AC	DC/AC	DC/AC	AC	AC
Supply Voltage	5	5	5	5	12	12	V
Supply Current	0.2(max)	0.2(max)	0.2(max)	0.2(max)	0.2(max)	0.2(max)	A
Optical Input	SM FC/APC（PM choose）
Radio Frequency Output	MCX（Female）
Shape Size	252210.5						mm

Test Results

Mini-MODULE: DBD-100M-A

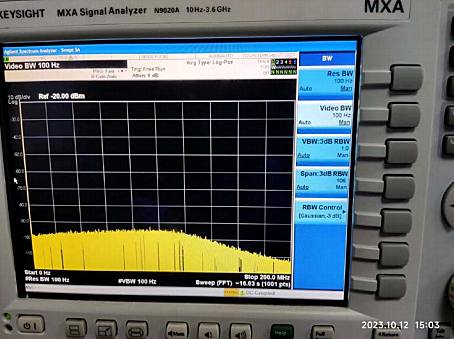

RBW=100Hz；VBW=100Hz

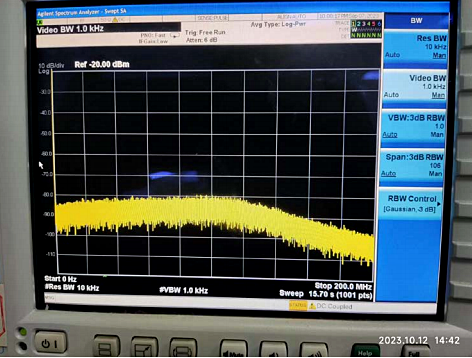

RBW=10KHz；VBW=1KHz

Application

● Optical Fiber Sensing

● Doppler Wind Lidar

● OCT

● Laser Ranging

● Spectrometry
