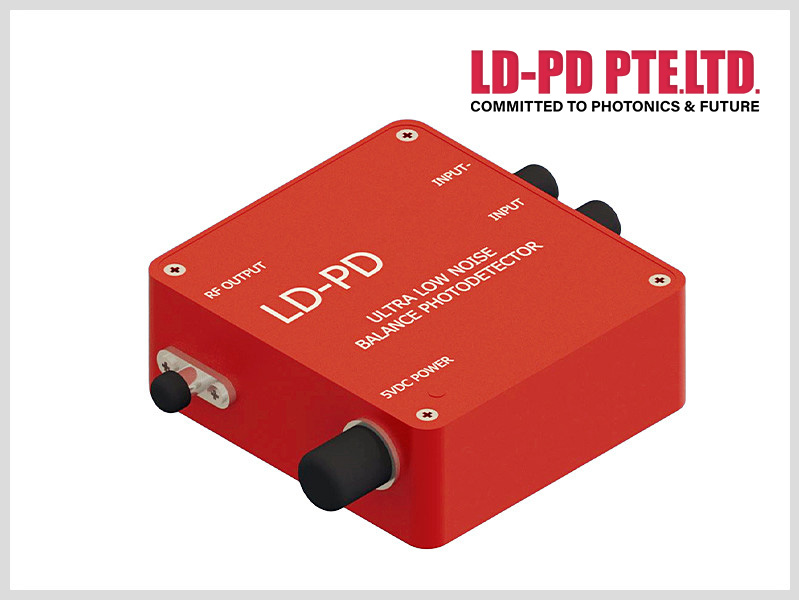

InGaAs PD Module

The UBD series ultra-low noise balance detector module is an upgraded product based on the original MBD series. Compared with the original MBD series, its background noise is significantly reduced under the same conditions of other parameters. Under the same bandwidth and gain conditions, its background noise is about one third of the MBD series module. Because of this, its sensitivity is higher and its signal to noise ratio is higher.

Product model

2.5GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-2.5G-A-FS

Response wavelngth 800-1700nm, Bandwidth 2.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-2G-A-FS

Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1.5G-A-FS

Response wavelngth 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1.2GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1.2G-A-FS

Response wavelngth 800-1700nm, Bandwidth 1.2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1.2GHz

1GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1G-A-FS

Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-800M-A-FS

Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-500M-A-FS

Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-400M-A-FS

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-300M-A-FS

Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-200M-A-FS

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-100M-A-FS

Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 100MHz

2.5GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-2.5G-A-FA

Response wavelngth 800-1700nm, Bandwidth 2.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-2G-A-FA

Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1.5G-A-FA

Response wavelngth 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1.2GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1.2G-A-FA

Response wavelngth 800-1700nm, Bandwidth 1.2G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.2GHz

1GHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-1G-A-FA

Response wavelength 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-800M-A-FA

Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-500M-A-FA

Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-400M-A-FA

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-300M-A-FA

Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-200M-A-FA

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs Ultra-Low Noise Balance Photodetector

UBD-100M-A-FA

Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 0.95A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise

● High Bandwidth

● High Transimpedance Gain

● Compact Structure

● Built-in low noise isolation

● power supply

Specifications

Product Model

UBD-100M-A

UBD-200M-A

UBD-300M-A

UBD-400M-A

UBD-500M-A

UBD-800M-A

UBD-1G-A

UBD-1.2G-A

UBD-1.5G-A

UBD-2G-A

UBD-2.5G-A

Unit

Detector Model

InGaAs

Wavelength

800~1700

nm

Bandwidth

100M

200M

300M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

Hz

Detector Responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

20K

10K

30K

30K

30K

30K

30K

30K

V/W

Saturated Input Optical Power

140

140

140

210

420

140

140

140

140

140

140

μW

NEP

2.5

2.5

2.5

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

pW/Sqrt(Hz)

CMRR

>30

>30

>30

>30

>30

>30

>30

>30

>30

>30

>30

dB

Output Impedance

50

50

50

50

50

50

50

50

50

50

50

Ω

Output Coupling Mode

DC/AC

DC/AC

DC/AC

DC/AC

DC

AC

AC

AC

AC

AC

AC

Supply Voltage

5

5

5

5

5

12

12

12

12

12

12

V

Supply Current

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

A

Optical Input

FC/APC（or Free Space ）

Radio Frequency Output

SMA

Shape Size

65*70*25

80*90*25

A

Test Result

Bandwidth curve of 200MHz Ultra-Low Noise Balance Detector

Bottom noise contrast between UBD and MBD

Package Size

Unit (mm)

$KGKC[K58372}1B[)]36K{_K.jpg$

Application

● Optical Fiber Sensing

● Doppler Wind Lidar

● OCT

● Laser Ranging

● Spectrometry
