InGaAs PD Module

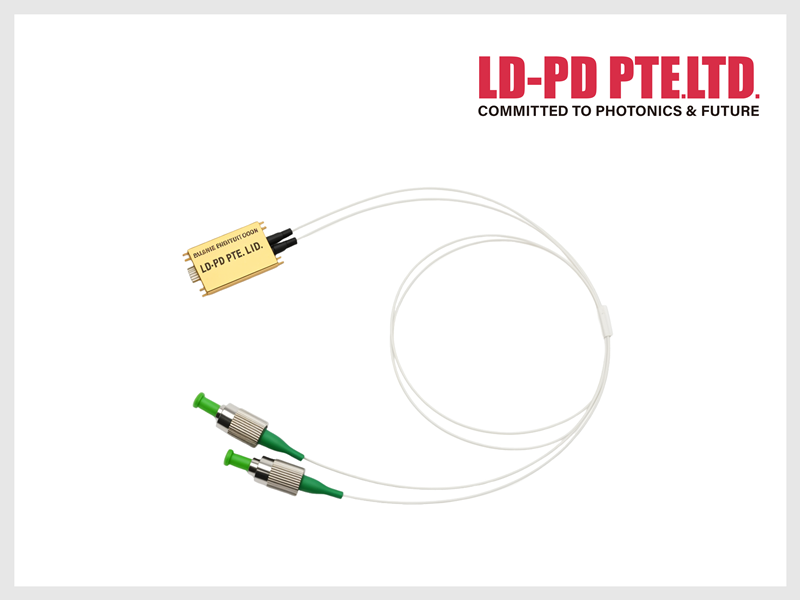

The Mini-Package Balanced Photodetector integrates two matched ultra-low noise analog PIN detectors with a low-noise broadband transimpedance amplifier. It effectively reduces common-mode noise in signals and improves the signal-to-noise ratio of the system. Characterized by its smaller size and lighter weight, this detector is particularly suitable for circuit board integration.

Product model

2GHz Mini-Package Balanced Photodetector

CBD-2G-A

Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1GHz Mini-Package Balanced Photodetector

CBD-1G-A

Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 1GHz

500MHz Mini-Package Balanced Photodetector

CBD-500M-A

Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz Mini-Package Balanced Photodetector

CBD-400M-A

Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz Mini-Package Balanced Photodetector

CBD-300M-A

Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz Mini-Package Balanced Photodetector

CBD-200M-A

Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz Mini-Package Balanced Photodetector

CBD-100M-A

Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector response 0.95A/W@1550nm, FC/APC pigtail

Response wavelength: 800-1700nm

Bandwidth: 100MHz

Parameter

Features

● Low Noise: Designed for high-sensitivity signal detection.

● High Gain: Provides strong signal amplification.

● High Bandwidth: Supports high-speed data acquisition.

● Ultra-Small Size: Ideal for space-constrained applications.

Key Parameter

Parameter	CBD-100M-A	CBD-200M-A	CBD-300M-A	CBD-400M-A	CBD-500M-A	CBD-1G-A	CBD-2G-A	Unit
Detector Type	InGaAs
Wavelength	800 ~ 1700nm
Bandwidth	100M	200M	300M	400M	500M	1G	2G	Hz
Responsivity	0.95	0.95	0.95	0.95	0.95	0.95	0.95	A/W @1550nm
Transimpedance Gain	30K	30K	30K	10K	5K	30K	15K	V/A
CMRR	>30							dB
Max Input Power	130	130	130	390	780	130	260	µW
NEP	5	5	5	7	7	9	9	pW/Sqrt(Hz)
Output Impedance	50	50	50	50	50	50	50	Ohm
Coupling Mode	DC/AC	DC/AC	DC/AC	DC/AC	DC/AC	AC	AC	-
Supply Voltage	±5V					±10		V
Max Supply Current	±5V@0.1					﹢10V@0.15；﹣10V@0.02		A
Dimensions	15.5245.1
Input	FC/APC Pigtail（SM\PM\Hi1060 Optional）

Dimension

Mini-Package Balanced Photodetector2.png

Mini-Package Balanced Photodetector3.png

Pin Defination

PIN NUMBER	VALUE
1	GND
2	RF OUTPUT
3	GND
4	VEE
5	GND
6	VCC

Application

● Distributed Fiber Optic Sensing

● Laser LiDAR

● Optical Coherent Analysis

● Optical Spectrum Measurement

● Nanosecond Laser Pulse Detection
