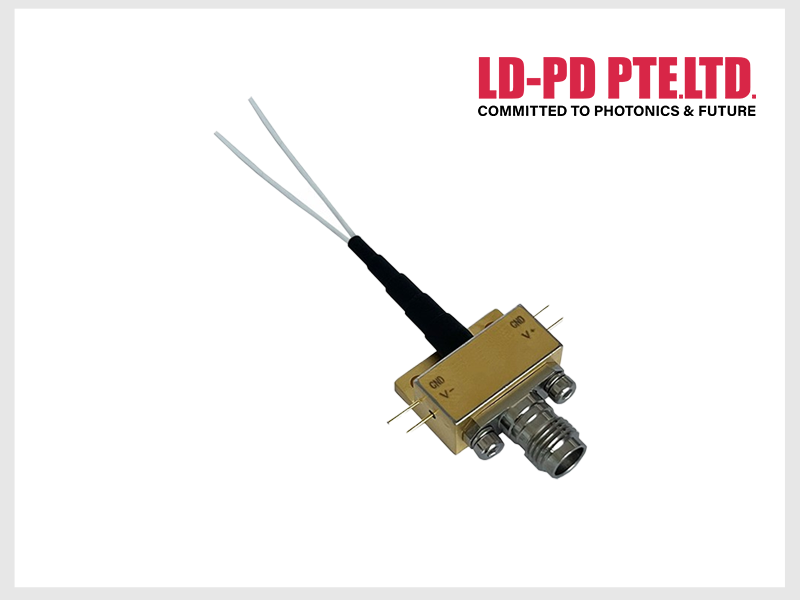

The BPD10 is "push-pull" InGaAs photodiodes with each photodiode capable of handling high optical power up to +14 dBm. High Common Mode Rejection Ratio (CMRR) and low Polarization Dependent Loss (PDL) make these devices ideal for both digital and analog applications. The broad wavelength response of these photodiodes allows for multiple wavelength usage.
Product model
| Balanced InGaAs Photodiodes to 10 GHz |
BPD-10G-A | Response wavelngth 1100-1565nm, Bandwidth 10G, Material InGaAs, Detector response 0.85A/W@1550nm | Response wavelength: 1100-1565nm Bandwidth: 10GHz |
Parameter
Features
● Lowest PDL (typical 0.05 dB)
● Normalized CMRR exceeds 30 dB
● Useable spectral wavelength range of 800-1650 nm
● Improves sensitivity by canceling DC portion of RIN and ASE noise
● High optical power handling InGaAs PIN photodiodes
● Small form-factor fiber-pigtailed package
● Improved reliability for high optical power handling
● One device for multiple wavelengths reduces operational and inventory cost
● OIP3 exceeding + 40dBm for highly linear option
Specifications
Product Specifications (Unless otherwise specified, all tests are conducted at 25°C)
Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
Operating Wavelength | λ |
| 1100 | 1310/1550 | 1565 | nm |
Responsivity | R | Vpd+ = +5 V, Vpd− = −5 V, Popt = 0 dBm, λ = 1550 nm | 0.8 | 0.85 |
| A/W |
Responsivity Uniformity | Rimb |
|
| 0.2 |
|
|
Dark Current | Id | Vpd+ = +5 V, Vpd− = −5 V |
| 20 |
| nA |
3 dB Bandwidth | BW | Vpd+ = +5 V, Vpd− = −5 V, Popt = 0 dBm, λ = 1550 nm | 10 |
|
| GHz |
Common Mode Rejection Ratio | CMRR |
|
| 25 |
| dB |
Saturation Optical Power | Psat | Vpd+ = +5 V, Vpd− = −5 V, λ = 1550 nm |
| 10 |
| dBm |
Return Loss | RL | λ = 1550 nm |
| 25 |
| dB |
Maximum Absolute Ratings
Parameter | Symbol | Rating | Unit |
Optical Power | Ps | 13 | dBm |
Forward Voltage | Vr | 10 | V |
Operating Temperature | Top | -40 ~ +70 | °C |
Storage Temperature | Tstg | -40 ~ +85 | °C |
Soldering Temperature | Tp | 260 (10s) | °C |
Minimum Fiber Bending Radius | Rfiber | 20 | mm |
Dimension
Custom sizes and pins are available upon request, with the minimum size being 16*16*8mm (with pigtails, pins, and mounting details ).
Application
● DPSK/DQPSK: Differential Phase/Polarization Shift Keying or Differential Quadrature Phase Shift Keying
● High Dynamic Range, Analog RF Links over Fiber
● Rapid Doppler-shift LIDAR measurements
● Coherent Lightwave Systems
● Brillouin Scattering - OTDR
● Test and Measurement
Product model
BPD-10G-AResponse wavelength: 1100-1565nm
Bandwidth: 10GHz
Parameter
● Lowest PDL (typical 0.05 dB)
● Normalized CMRR exceeds 30 dB
● Useable spectral wavelength range of 800-1650 nm
● Improves sensitivity by canceling DC portion of RIN and ASE noise
● High optical power handling InGaAs PIN photodiodes
● Small form-factor fiber-pigtailed package
● Improved reliability for high optical power handling
● One device for multiple wavelengths reduces operational and inventory cost
● OIP3 exceeding + 40dBm for highly linear option
Product Specifications (Unless otherwise specified, all tests are conducted at 25°C)
Parameter
Symbol
Test Condition
Min
Typ
Max
Unit
Operating Wavelength
λ
1100
1310/1550
1565
nm
Responsivity
R
Vpd+ = +5 V, Vpd− = −5 V,
Popt = 0 dBm, λ = 1550 nm
0.8
0.85
A/W
Responsivity Uniformity
Rimb
0.2
Dark Current
Id
Vpd+ = +5 V, Vpd− = −5 V
20
nA
3 dB Bandwidth
BW
Vpd+ = +5 V, Vpd− = −5 V,
Popt = 0 dBm, λ = 1550 nm
10
GHz
Common Mode Rejection Ratio
CMRR
25
dB
Saturation Optical Power
Psat
Vpd+ = +5 V, Vpd− = −5 V,
λ = 1550 nm
10
dBm
Return Loss
RL
λ = 1550 nm
25
dB
Maximum Absolute Ratings
Parameter
Symbol
Rating
Unit
Optical Power
Ps
13
dBm
Forward Voltage
Vr
10
V
Operating Temperature
Top
-40 ~ +70
°C
Storage Temperature
Tstg
-40 ~ +85
°C
Soldering Temperature
Tp
260 (10s)
°C
Minimum Fiber Bending Radius
Rfiber
20
mm
Custom sizes and pins are available upon request, with the minimum size being 16*16*8mm (with pigtails, pins, and mounting details ).
● DPSK/DQPSK: Differential Phase/Polarization Shift Keying or Differential Quadrature Phase Shift Keying
● High Dynamic Range, Analog RF Links over Fiber
● Rapid Doppler-shift LIDAR measurements
● Coherent Lightwave Systems
● Brillouin Scattering - OTDR
● Test and Measurement
