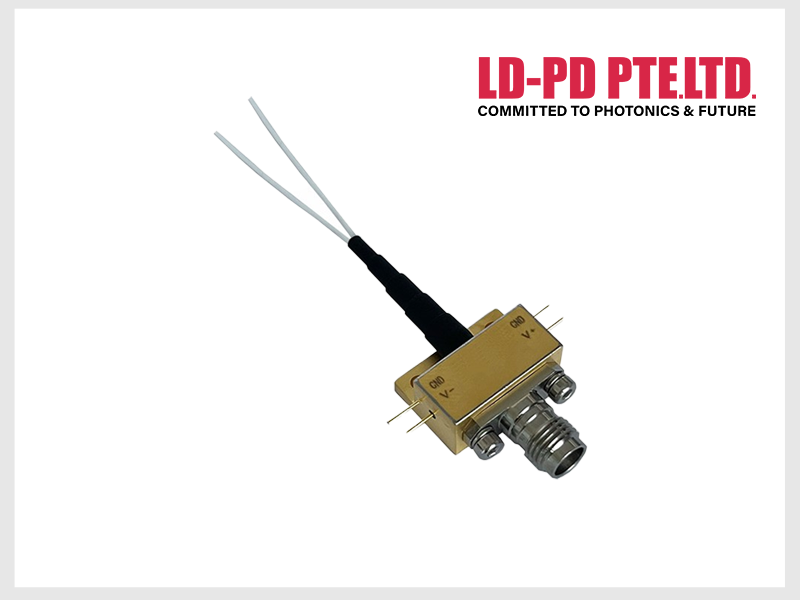

The BPD25 is "push-pull" InGaAs photodiodes with each photodiode capable of handling high optical power up to +14 dBm. High Common Mode Rejection Ratio (CMRR) and low Polarization Dependent Loss (PDL) make these devices ideal for both digital and analog applications. The broad wavelength response of these photodiodes allows for multiple wavelength usage.
Product model
| Balanced InGaAs Photodiodes to 25 GHz |
BPD-25G-A | Response wavelngth 1100-1565nm, Bandwidth 25G, Material InGaAs, Detector response 0.7A/W@1550nm | Response wavelength: 1100-1565nm Bandwidth: 25GHz |
Parameter
Features
● Lowest PDL (typical 0.05 dB)
● Normalized CMRR exceeds 30 dB
● Useable spectral wavelength range of 800-1650 nm
● Improves sensitivity by canceling DC portion of RIN and ASE noise
● High optical power handling InGaAs PIN photodiodes
● Small form-factor fiber-pigtailed package
● Improved reliability for high optical power handling
● One device for multiple wavelengths reduces operational and inventory cost
● OIP3 exceeding + 40dBm for highly linear option
Specifications
Product Specifications (Unless otherwise specified, all tests are conducted at 25°C)
Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
Operating Temperature | T0 |
| 0 |
| 75 | ℃ |
Storage Temperature | Ts |
| -40 |
| 85 | ℃ |
Operating Wavelength | λ |
|
| 1550 |
| nm |
Bias Voltage | Vb |
| 3 | 5 |
| V |
Photosensitive Diameter | Ф |
|
| 20 |
| μm |
Saturation Optical Power | Ps | λ = 1550 nm, Vb = 5 V | 9 | 10 |
| dBm |
Responsivity | R | λ = 1550 nm, Vb = 5 V |
| 0.7 |
| A/W |
Responsivity Imbalance | Imb |
|
| 1.50% |
|
|
Dark Current | Id | Vb = 5 V |
| 5 | 10 | nA |
3 dB Bandwidth | BW | Ps,o = 0 dBm, Vb = 5 V | 25 | 26 |
| GHz |
Common Mode Rejection Ratio | CMRR | Ps,o = 0 dBm, Vb = 5 V | 18 | 20 |
| dB |
Maximum Absolute Ratings
Parameter | Symbol | Rating | Unit |
Optical Power | Ps | 13 | dBm |
Forward Voltage | Vr | 10 | V |
Operating Temperature | Top | -40 ~ +70 | °C |
Storage Temperature | Tstg | -40 ~ +85 | °C |
Soldering Temperature | Tp | 260 (10s) | °C |
Minimum Fiber Bending Radius | Rfiber | 20 | mm |
Dimension
Custom sizes and pins are available upon request, with the minimum size being 16*16*8mm (with pigtails, pins, and mounting details ).
Application
● DPSK/DQPSK: Differential Phase/Polarization Shift Keying or Differential Quadrature Phase Shift Keying
● High Dynamic Range, Analog RF Links over Fiber
● Rapid Doppler-shift LIDAR measurements
● Coherent Lightwave Systems
● Brillouin Scattering - OTDR
● Test and Measurement
