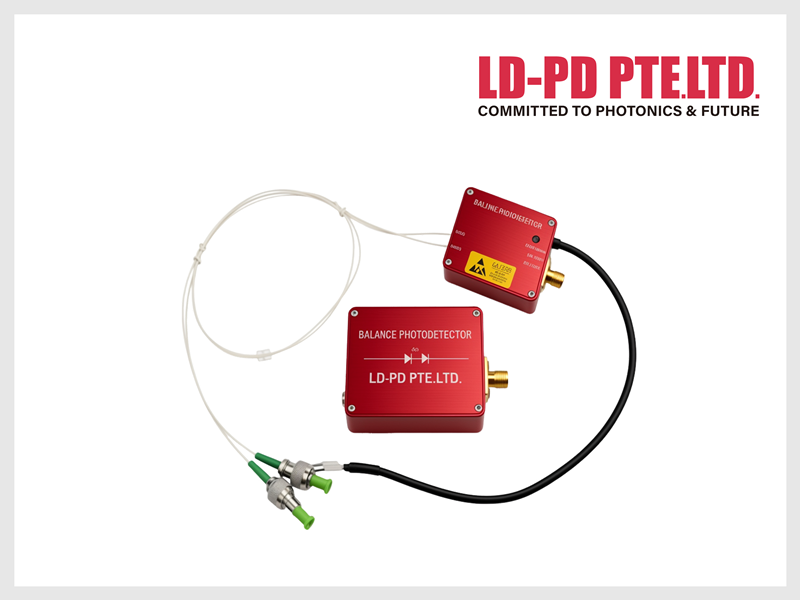

The 1310nm Band OCT Balanced Photodetector integrates two matched low-noise analog InGaAs PIN detectors specifically optimized for the 1300nm wavelength range. This device combines a low-noise broadband transimpedance amplifier (TIA) with an ultra-low-noise power supply. By utilizing unique detector packaging technology, the SBD series effectively suppresses spectral noise caused by multiple reflections, delivering superior imaging results for 1300nm Swept-Source OCT applications.
Product model
| 2GHz 1310nm OCT Balanced Photodetector |
LBD-2G-A13 | Response wavelngth 800-1700nm, Bandwidth 2GHz, Material InGaAs, Detector response 0.95A/W@1310nm, FC/APC pigtail | Response wavelength: 800-1700nm Bandwidth: 2GHz |
| 1GHz 1310nm OCT Balanced Photodetector |
LBD-1G-A13 | Response wavelngth 800-1700nm, Bandwidth 1GHz, Material InGaAs, Detector response 0.95A/W@1310nm, FC/APC pigtail | Response wavelength: 800-1700nm Bandwidth: 1GHz |
| 400MHz 1310nm OCT Balanced Photodetector |
LBD-400M-A13 | Response wavelngth 800-1700nm, Bandwidth 400MHz, Material InGaAs, Detector response 0.95A/W@1310nm, FC/APC pigtail | Response wavelength: 800-1700nm Bandwidth: 400MHz |
| 200MHz 1310nm OCT Balanced Photodetector |
LBD-200M-A13 | Response wavelngth 800-1700nm, Bandwidth 200MHz, Material InGaAs, Detector response 0.95A/W@1310nm, FC/APC pigtail | Response wavelength: 800-1700nm Bandwidth: 200MHz |
| 100MHz 1310nm OCT Balanced Photodetector |
LBD-100M-A13 | Response wavelngth 800-1700nm, Bandwidth 100MHz, Material InGaAs, Detector response 0.95A/W@1310nm, FC/APC pigtail | Response wavelength: 800-1700nm Bandwidth: 100MHz |
Parameter
Features
● Low Noise: Optimized for high-sensitivity measurements.
● High Gain: Provides strong signal amplification for weak optical inputs.
● High Bandwidth: Supports high-speed data acquisition up to 2 GHz.
● Compact Form Factor: Small dimensions for easy system integration.
● Single Power Supply: Simplifies hardware design and power management.
Specifications
Parameter | LBD-100M-A13 | LBD-200M-A13 | LBD-400M-A13 | LBD-1G-A13 | LBD-2G-A13 | Unit |
Detector Type | InGaAs |
Wavelength | 800 ~ 1700 | - | - | - | - | nm |
Bandwidth | 100M | 200M | 400M | 1G | 2G | Hz |
Responsivity | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 | A/W@1310nm |
Transimpedance Gain | 30K | 30K | 10K | 30K | 15K | V/A |
CMRR | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | dB |
Sat. Optical Power | 140 | 140 | 420 | 140 | 280 | uW |
NEP | 5 | 5 | 7 | 9 | 9 | pW/Sqrt(Hz) |
Output Impedance | 50 | 50 | 50 | 50 | 50 | ohm |
Coupling Mode | DC/AC | DC/AC | DC/AC | AC | AC | - |
Supply Voltage | 5 | 5 | 5 | 12 | 12 | V |
Supply Current | 0.2 (max) | A |
Interface & Mechanical Details:
Optical Input: FC/APC Pigtail (SMF-28e)
RF Output: SMA Connector
Dimensions: 35 * 45 * 13 mm
Application
● Optical Coherence Tomography (OCT)
