옵틱 클라우드의 Detector -  InGaAs PD Module 제품들 입니다.

InGaAs APD Balance Photodetector

InGaAs PD Module

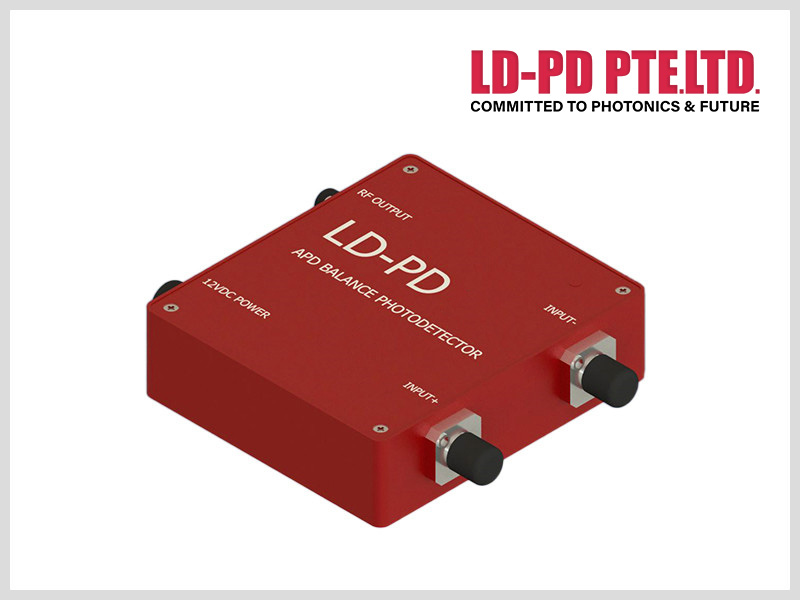

d0541a988997e.pngHigh-speed and low-noise avalanche photoelectric balance detection module integrates low-noise APD detector, low-noise broadband transconductance amplifier, ultra-low noise isolation power supply, high-voltage power supply, temperature compensation; isolation power supply ensures that the output signal is not affected by external power supply; APD temperature compensation improves the stability of detection module. Avalanche photodetector has the characteristics of high gain, high sensitivity, high bandwidth and low noise.





Product model


2GHz InGaAs APD Balance Photodetector


BAPD-2G-A-FA		Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs APD Balance Photodetector


BAPD-1.5G-A-FA		Response wavelngth 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1.2GHz InGaAs APD Balance Photodetector


BAPD-1.2G-A-FA		Response wavelngth 800-1700nm, Bandwidth 1.2G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1.2GHz

1GHz InGaAs APD Balance Photodetector


BAPD-1G-A-FA		Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs APD Balance Photodetector


BAPD-800M-A-FA		Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs APD Balance Photodetector


BAPD-500M-A-FA		Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs APD Balance Photodetector


BAPD-400M-A-FA		Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs APD Balance Photodetector


BAPD-300M-A-FA		Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs APD Balance Photodetector


BAPD-200M-A-FA		Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs APD Balance Photodetector


BAPD-100M-A-FA		Response wavelngth 800-1700nm, Bandwidth 100M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input FC/APC

Response wavelength: 800-1700nm

Bandwidth: 100MHz

2.5GHz InGaAs APD Balance Photodetector


BAPD-2.5G-A		Response wavelngth 800-1700nm, Bandwidth 2.5G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2.5GHz

2GHz InGaAs APD Balance Photodetector


BAPD-2G-A-FS		Response wavelngth 800-1700nm, Bandwidth 2G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 2GHz

1.5GHz InGaAs APD Balance Photodetector


BAPD-1.5G-A-FS		Response wavelngth 800-1700nm, Bandwidth 1.5G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1.5GHz

1.2GHz InGaAs APD Balance Photodetector


BAPD-1.2G-A-FS		Response wavelngth 800-1700nm, Bandwidth 1.2G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1.2GHz

1GHz InGaAs APD Balance Photodetector


BAPD-1G-A-FS		Response wavelngth 800-1700nm, Bandwidth 1G, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 1GHz

800MHz InGaAs APD Balance Photodetector


BAPD-800M-A-FS		Response wavelngth 800-1700nm, Bandwidth 800M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 800MHz

500MHz InGaAs APD Balance Photodetector


BAPD-500M-A-FS		Response wavelngth 800-1700nm, Bandwidth 500M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 500MHz

400MHz InGaAs APD Balance Photodetector


BAPD-400M-A-FS		Response wavelngth 800-1700nm, Bandwidth 400M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 400MHz

300MHz InGaAs APD Balance Photodetector


BAPD-300M-A-FS		Response wavelngth 800-1700nm, Bandwidth 300M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 300MHz

200MHz InGaAs APD Balance Photodetector


BAPD-200M-A-FS		Response wavelngth 800-1700nm, Bandwidth 200M, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 200MHz

100MHz InGaAs APD Balance Photodetector


BAPD-100M-A-FS		Response wavelngth 800-1700nm, Bandwidth 100MHz, Material InGaAs, Detector Responsivity 9A/W@1550nm, Optical Input Free Space

Response wavelength: 800-1700nm

Bandwidth: 100MHz



Parameter



Features

● Low Noise and High Gain

● Built-in high voltage power supply

● Temperature compensation

● Compact structure

● Built-in low noise isolation power supply



Specifications

Product Model

BAPD-100M-A

BAPD-200M-A

BAPD-300M-A

BAPD-400M-A

BAPD-500M-A

BAPD-800M-A

BAPD-1G-A

BAPD-1.2G-A

BAPD-1.5G-A

BAPD-2G-A

BAPD-2.5G-A

Unit

Detector

InGaAs


Wavelength

800~1700

nm

Bandwidth

100M

200M

300M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

Hz

Detector Responsivity

9

9

9

9

9

9

9

9

9

9

9

A/W@1550nm

Transimpedance Gain

300K

300K

300K

100K

50K

300K

300K

300K

200K

150K

150K

V/W

Saturated Input Optical Power

13

13

13

39

78

13

13

13

20

20

20

uW

CMRR

>30

>30

>30

>30

>30

>30

>30

>30

>30

>30

>30

dB

NEP

0.46

0.46

0.46

0.46

0.46

0.46

0.46

0.46

0.46

0.46

0.46

pW/√(Hz)

Output Impedance

50

50

50

50

50

50

50

50

50

50

50

Ω

Output Coupling Mode



DC/AC



DC/AC



DC/AC



DC/AC



DC



AC



AC



AC



AC



AC



AC


Supply Voltage

5

5

5

5

5

12

12

12

12

12

12

V

Supply Current

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

A

Optical Input

FC/APC(or Free Space )


Radio Frequency Output

SMA


Shape Size

80*90*25

mm


Test Result

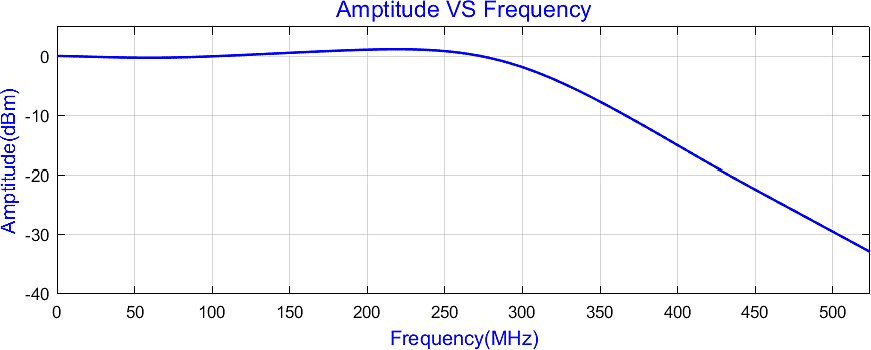

Bandwidth curve of 300MHz Detector

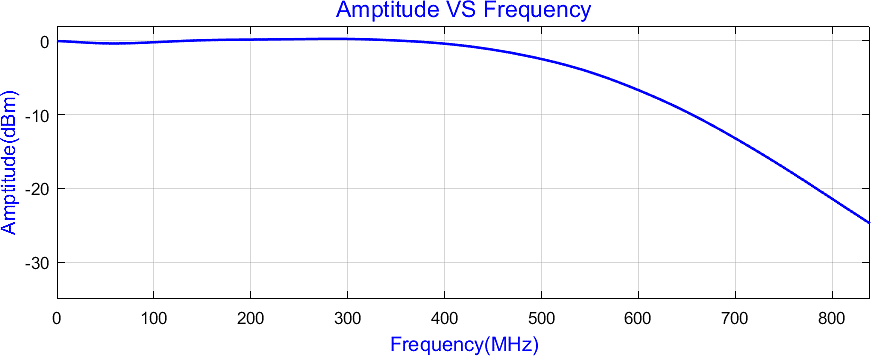

Bandwidth curve of 500MHz Detector



Application

● Optical Fiber Sensing

● Optical Fiber Communication

● Laser Ranging

● Spectrometry


1310nm OCT Balanced Photodetector
