InGaAs photodiode

This product is a high-performance photodetector that performs optical-to-electrical conversion, featuring a 3-dB bandwidth of ≥40 GHz and a responsivity of ≥0.6 A/W. It is suitable for applications in optical communications, advanced instrumentation, microwave photonics, and related technical fields.

Product model

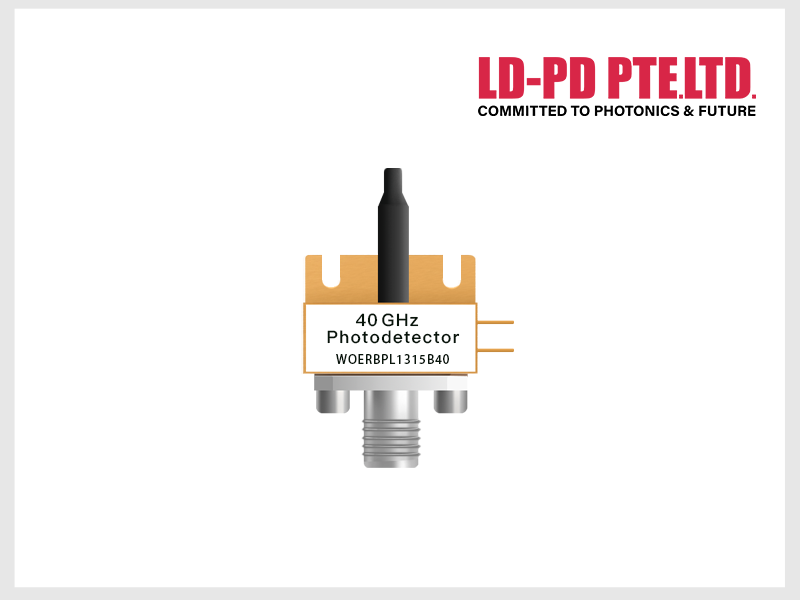

40 GHz Photodetector

WOERBPL1315B40

Response Spectrum 1260-1560nm; 3dB bandwidth ≥ 40 GHz, Reponsivity 0.6 A/W@1.55μm or 0.7 A/W@1.31μm, Material InGaAs

Response wavelength: 1260-1560nm

Material: InGaAs

Bandwidth: 40GHz

Parameter

Features

● Wide bandwidth

● High responsivity

● Low dark current

● High reliability

Specifications

Product Specifications (All tests are conducted at 25℃ unless otherwise noted)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Operating Wavelength	λ		1260	1550	1565	nm
Responsivity	R	λ = 1550 nm		0.6		A/W
Responsivity	R	λ = 1310 nm		0.7		A/W
Dark Current	Id	Vr = +4 V		10		nA

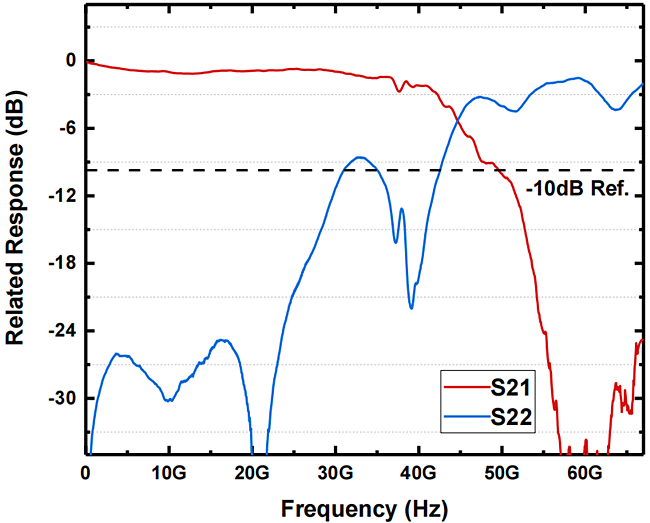

3 dB Bandwidth	BW	Popt = 0 dBm	35	40		GHz
Saturation Optical Power	Psat			8		dBm
