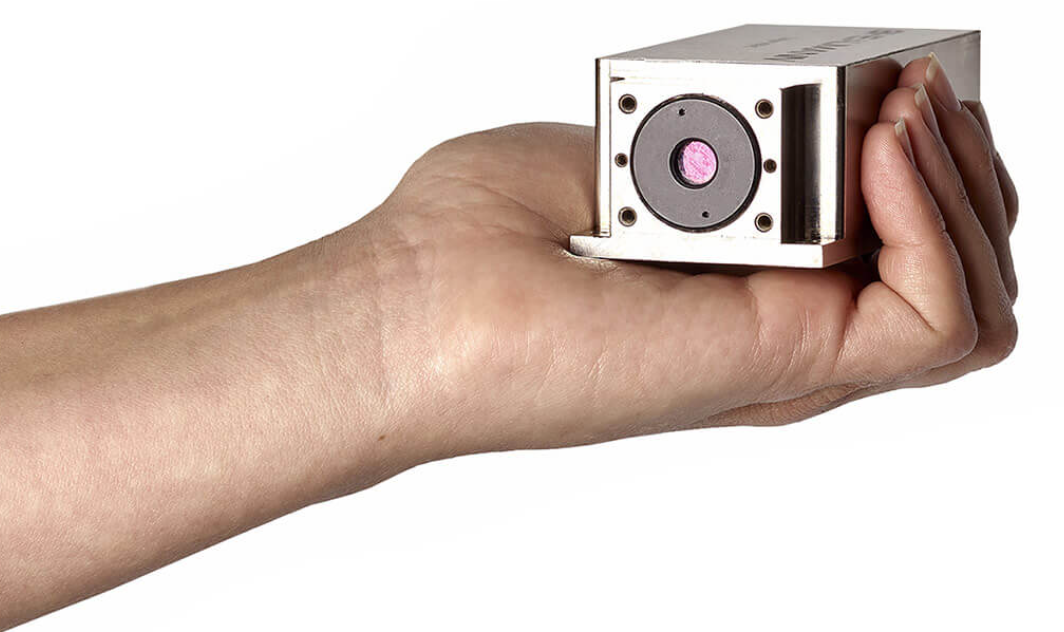

MIR-Pac 2.94μm 1W Laser Module

As a breakthrough in DPSS laser technology, the MirPac is a 2.94μm Er:YAG laser with TEM output beam in a hermetically sealed windowed package that was the first of its kind. Operating at 2940nm, the wavelength with the most efficient rate of water absorption, the MirPac is ideal for use in tandem with water or with materials that contain some amount of water content.

SPECIFICATIONS

Wavelength	2.94μm
CW Output Power	1 W
Laser Drive Current	<6 A
Spatial Mode	TEM₀₀
Wavelength Stability	<1 cm⁻¹
Beam Diameter @FWHM	<2.0 mm
Beam Divergence	<20 mrad
Power Stability	<±2.0% over 8 hours
Warm Up Time	<5 min
Polarization Ratio	Random
Beam Position	±0.5 mm
Beam Angle	±5 mrad
Ambient Operating Temp. Range	15 to 40°C
Power Dissipation From MIR-Pac	<100 W
Heatsink Temp. for Conductive Cooling	0 to 45°C
Non-Operating Storage Temp.	-10 to 65°C
Dimensions (L x W x H)	114 x 52 x 38 mm (4.5 x 2.1 x 1.5 in)
Weight	0.82 kg (1.8lbs)

Download MirPac White Paper

Features

DPSS laser system
Electrically isolated
Hermetically sealed
Internal dual TEC
Optional red or green aiming beam
Free-space output of 1W
Low-RMS
Fiber-coupled option

Applications

Communication (Military/Space)
Sensing
Surgical (Medical/Dental)
Rangefinding
