Many diamond wholesalers or Jewelry factories need to identify and process the raw diamond, CNI can offer the total solution of diamond planning, marking and identification, also the separate part such as laser source and Raman spectrometer are available.

1064 nm microlaser is a suitable laser source for diamond planning and marking, with good marking effect on the middle of the waist line of diamond, the minimum character height can be 40 um, and minimum marking line width 5 um.

Features:	Applications:
Integrated putput optics Easy integration Good beam quality Ultra compact package Long life time	Diamond planning Marking Biophotonics Remote sensing Instrumentation

Specifications:

Optical	Typical
Central wavelength (nm)	1064
Operating mode	Pulsed laser
M2 factor	1.2 (1.0-1.5 optional)
Waist diameter (μm)	300
Beam divergence, full angle (mrad)	6.5 (customized available)
Polarization	Random
Transverse mode	TEM00
Output power (mW)	500, 1000, 1200
Pulse Repetition Frequency (PRF) (kHz)	13.5 (5-25 optional)
Pulse width (ns)	18
Pulse energy (μJ)	75
Beam diameter at the aperture (mm)	~1.5 typically
Operating temperature (℃)	10~35 (customized available)
Laser head cooling type	Air-cooling
Beam height from base plate (mm)	29
Power supply (90-264VAC)	PSU-H-FDA
Ave power stability (over 8hrs)	5%
Weight (head/ driver, kg)	0.9/ 2.3
Warm-up time (minutes)	<10
Dimensions (head, mm)	153(L) ×50(W) ×34.5(H)
Warranty	1 year

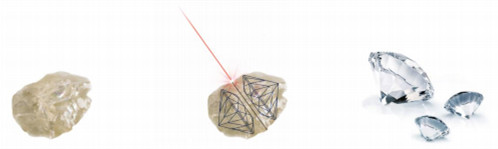

Diamond planning illustration

Raman Identifies Diamond Diamond Girdle Laser Inscription
