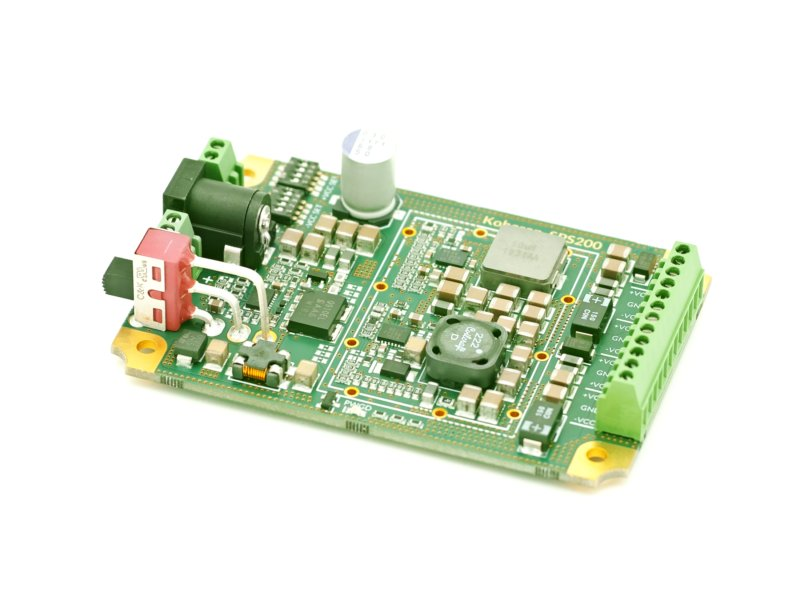

Koheron SPS200 is a 36 W dual power supply with two output voltages settable from +/-5 V to +/-12 V. It operates from a single 18 V to 33 V input supply. Integrated input and output EMI filters ensure low levels of ripple and radiated emissions. Thanks to its high output power, many modules can be supplied from a single SPS200.

Specifications

Positive output(s) (+5 V to +12.5 V)	SPS200-PN	SPS200-PP
Maximum output current +5 V to +6 V	4 A	4 A
Maximum output current at 12 V	3 A	3 A
Efficiency at 12 V, 3 A(24 V input)	95 %	95 %
Ripple and noise(10 Hz to 5 MHz bandwidth, +12 V, 3 A)	1.4 mVrms	1.4 mVrms
Start up time to +12 V	50 ms	50 ms
Load regulation(5 V out.)	≤ 3 %	≤ 3 %
Negative output (-5 V to -12.5 V)
Maximum output current -5 V to -6 V	2 A
Maximum output current at -12 V	1.5 A
Efficiency at -12 V, 1.5 A(24 V input)	87 %
Ripple and noise(10 Hz to 5 MHz bandwidth, -12 V, 1.44 A)	800 µVrms
Start up time to -12 V	250 ms
Load regulation(-5 V out.)	≤ 2 %
Input power supply
Input voltage	18 V to 33 V, nom. 24 V	18 V to 33 V, nom. 24 V
Input supply connector	Jack (2.1 & 2.5 mm) or terminal block	Jack (2.1 & 2.5 mm) or terminal block
Input current limit	3.3 A	3.3 A
Input current no load(Vin = 24 V, +/-12 V output)	3 mA	3 mA
Surge voltage(1 s max.)	≤ 50 V	≤ 50 V
Overvoltage lock-out	typ. 36 V	typ. 36 V
Other
Maximum output power	36 W	48 W
Outside dimensions	79 mm x 50 mm x 15 mm	79 mm x 50 mm x 15 mm
Weight	36 g	36 g
Operating temperature	0 °C to 50 °C	0 °C to 50 °C
Temperature coefficient	75 ppm/°C	75 ppm/°C
