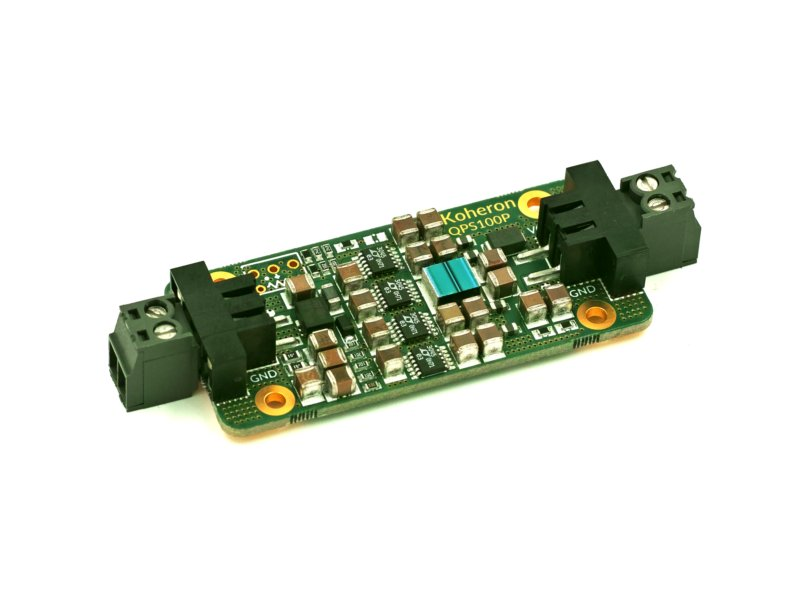

Koheron QPS100 is a linear power supply that can drive up to 2 A. Its low noise helps getting the full performance of critical analog components (amplifiers, data converters, oscillators, phase lock loops, ...).

Specifications

QPS100N-5 QPS100P-5

Output voltage	-5 V (adjustable from -15 V to -2 V, see user guide)	5 V (adjustable from 2 V to 15 V, see user guide)
Current driving capability	2 A	2 A
Voltage noise density(1 kHz)	1.7 nV/√Hz	1.1 nV/√Hz
RMS noise(10 Hz to 1 MHz)	1.8 µVrms	1.5 µVrms
Temperature coefficient	20 ppm/°C	10 ppm/°C
Load regulation	0.5 %	0.5 %
Supply voltage	-7 V to -5.5 V, nom. -6 V	5.5 V to 7 V, nom. 6 V
Operating temperature	-20 °C to 70 °C	-20 °C to 70 °C
Weight	14 g	14 g
Outside dimensions	73 mm x 25 mm x 11 mm	73 mm x 25 mm x 11 mm
