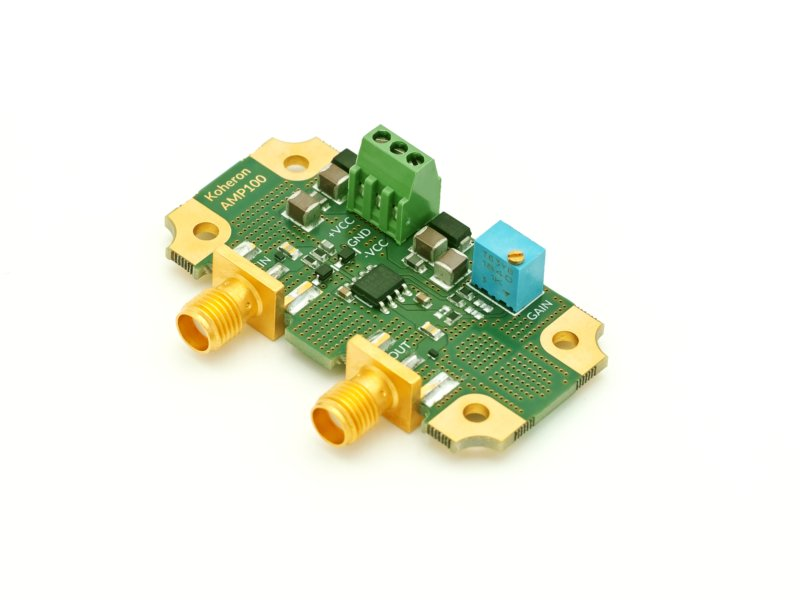

Koheron AMP100 is a ±15 V voltage amplifier with adjustable gain.

Specifications

Gain, Bandwidth
Gain range	1.05 to 20
3 dB bandwidth(gain = 10)	2 MHz
Input
Input-referred voltage noise(1 kHz)	< 3 nV/√Hz
Input impedance	50 Ω
Coupling	DC
Output
Output voltage range(±15 V supply)	-12 V to 12 V
Slew rate(high impedance)	60 V/µs
Slew rate(50 Ω)	10 V/µs
Output impedance	50 Ω
Power supply
Positive supply voltage	5 V to 16 V
Negative supply voltage	-16 V to -5 V
Quiescent current per rail	10 mA
Other
Outside dimensions	50 mm x 33 mm x 14 mm
Weight	11 g
Operating temperature	-20 °C to 70 °C
