CUSTOM BEAM SHAPER PRODUCTS

Holo/Or has vast variety of solutions for beam shaping:
The beam shapers are diffractive optical elements (DOEs) used to transform a SM or MM incident laser beam into any shape with any intensity distribution in a specific work plane.

In this section, we present our beam shaper DOEs which give a custom intensity distribution & custom shape at infinity or focal length of an aberration free customer’s lens.

FEATURES:

Good Uniformity
Sharp beam edge (according to the M2 of the laser)
Glass or plastic materials
High power threshold
Optional Ar/Ar coating
Any output beam profile
Wavelengths from UV to IR

APPLICATIONS:

Laser homogenizing/shaping
Laser materials processing: perforation, welding, cutting, scribing, ablation and drilling
Medical/aesthetic laser treatment
Beam shaping for Excimer lasers
Hot spot reducer

PN	λ [nm]	θf [deg]	Beam Dia [mm]	Image Shape	Description	Availability

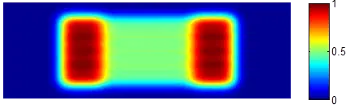

HM-374-I-Y-A	1064	0.95x0.38	>5.5	Rectangle	Intensity Drop in Long Axis	In Stock
TH-225-I-Y-A	1064	1.36	1.2	Dollar		7 weeks
TH-236-I-Y-A	1064	0.41	6	Grid	10x10 cells	7 weeks
TH-237-I-Y-A	1064	0.41	6	MultiLines	11 lines	7 weeks
ST-227-I-Y-A	1064	0.11	4	Frame		7 weeks
ST-228-I-Y-A	1064	1.38	4	Frame		7 weeks
GD-241-I-Y-A	1064	0.3	>3	Gaussian	Gaussian profile	7 weeks
GD-242-I-Y-A	1064	0.5	>3	Gaussian	Gaussian profile	7 weeks
GD-243-I-Y-A	1064	1	>3	Gaussian	Gaussian profile	7 weeks
HM-363-I-Y-A	1064	3.32x3.32	>2.5	Frame	for M2>80	7 weeks
ML-001-I-Y-A	1064	81.59x81.59	>4	MultiLines	15 Lines	8 weeks
ST-332-I-Y-A	1064	1.87	5	C-Shape		8 weeks
ST-333-I-Y-A	1064	1.88	5	C-Shape		8 weeks
GD-244-I-Y-A	1064	0.2	>3	Gaussian	Gaussian profile	8 weeks
HM-329-I-Y-A	1064	8.97	>5	Quadrupole	for M2>40	8 weeks
ML-002-I-Y-A	1064	69.25x45.52	>1	MultiLines	27 Lines	8 weeks
ML-003-I-Y-A	1064	50.65x50.65	>1	MultiLines	81 Lines	8 weeks
ML-004-I-Y-A	1064	37.75x24.60	>1	MultiLines	9 Lines	8 weeks
ML-005-I-Y-A	1064	50.38x12.46	>1	MultiLines	81 Lines	8 weeks
ML-006-I-Y-A	1064	51.73x50.38	>1	MultiLines	41 Lines	8 weeks
