옵틱 클라우드의 Electronic Devices - PCI Express Digitizers 제품들 입니다.

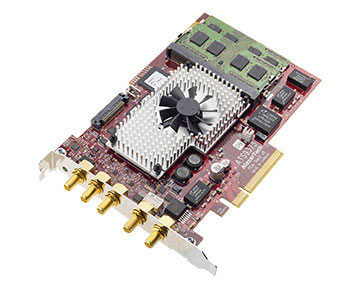

ATS9373 - 12 bit, 4 GS/s

ATS9373 is a 12-bit waveform digitizer board that can sample one analog input at rates up to 4 GS/s or two inputs at 2 GS/s.

With on-FPGA FFT signal processing and data throughput as fast as 6.9 GB/s (6900 MB/s), ATS9373 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.

Features:

  • 4 GS/s 12-bit A/D conversion
  • 6.9 GB/s throughput across x8 PCIe Gen3
  • 2 channel operation at 2 GS/s
  • 4096 point On-FPGA FFT Engine
  • 8 Gigabytes of on-board Dual-Port Memory
  • Variable frequency external clock capable
  • Optional 1.7 GHz full power bandwidth
  • Fixed ±400 mV Input Range
  • 57.1 dB Signal to Noise Ratio
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • Half-Length PCIe Gen3 x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

Datasheet
