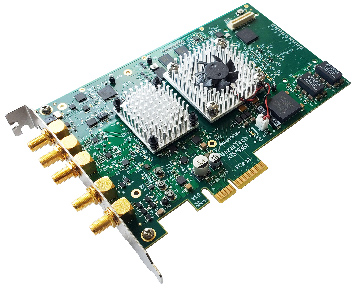

ATS9364 - 12 bit, 1 GS/s

ATS9364 is a low-noise, 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.

With data throughput as fast as 3 GB/s (3000 MB/s), ATS9364 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.

Features:

  • 1 GS/s Real Time Sampling rate
  • 3 GB/s throughput across x4 PCIe Gen3
  • 2 channels sampled at 12 bit resolution
  • 512 Megabytes of on-board Dual-Port Memory per channel
  • Variable frequency external clock capable
  • Fixed ±400 mV Input Range
  • High Signal to Noise Ratio
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • Half-Length PCIe Gen3 x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, MATLAB, Python and LabVIEW
  • Support for Windows and Linux

Datasheet
