Photodetector Chip

This product is an 850 nm 100 Gb/s InGaAs 1×4 array photodetector chip that performs photoelectric conversion. It is suitable for applications such as multimode transceivers and optical receivers.

Product model

850nm 100Gb/s InGaAs 1×4 Array Photodetector Chip

APC-850-1x4-100

Operating Wavelength 850nm, Active Area Diameter 32μm, Reponsivity ≥0.6 A/W@1.55μm, 3 dB Bandwidth (15 Ω TIA) 32GHz, MOQ:20 PCs

Operation Wavelength: 850nm

Material: InGaAs

Parameter

Features

● Large photosensitive area

● Low capacitance

● Low dark current

● High responsivity

Specifications

Unless otherwise specified, measurements are taken at 25°C

Parameter	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Operating Temperature	To		0		75	°C
Storage Temperature	Ts		-40		85	°C
Operating Wavelength	λ			850		nm
Bias Voltage	Vb		3		6	V
Active Area Diameter	Φ			32		μm
Responsivity	R	λ = 1550 nm, Vb = 3 V		0.6		A/W
Dark Current	Id	Vb = 3 V		0.1	1	nA
Capacitance	C	Vb= 3 V		100		fF
Series Resistance	Rs			10		Ω
3 dB Bandwidth (15 Ω TIA)	BW	Ps, o= 0 dBm, Vb = 3 V		32		GHz

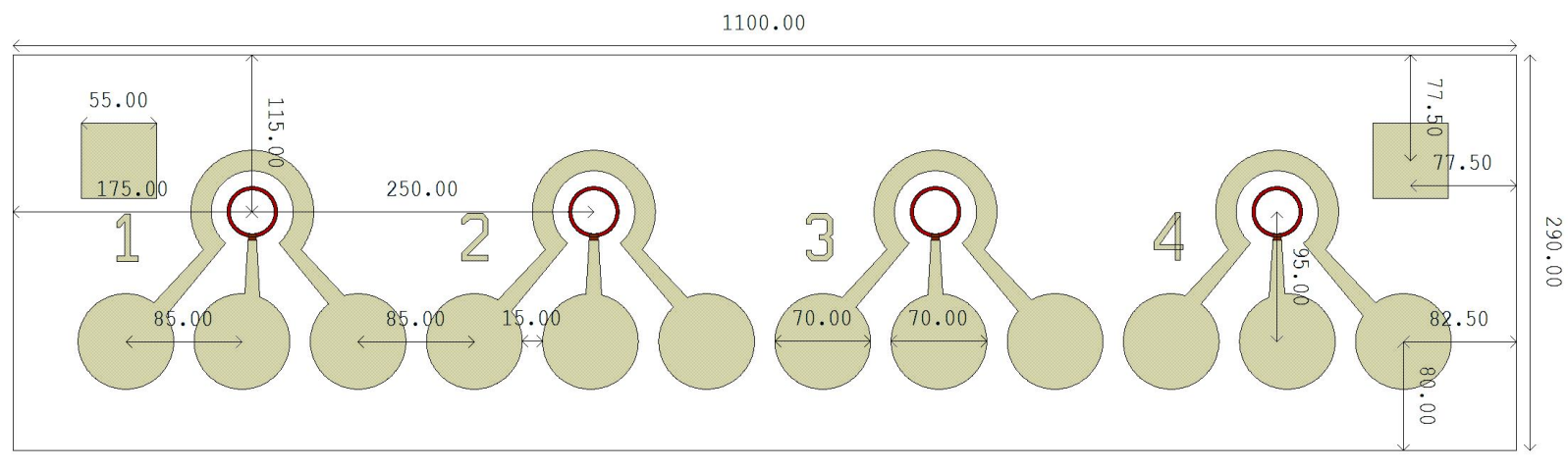

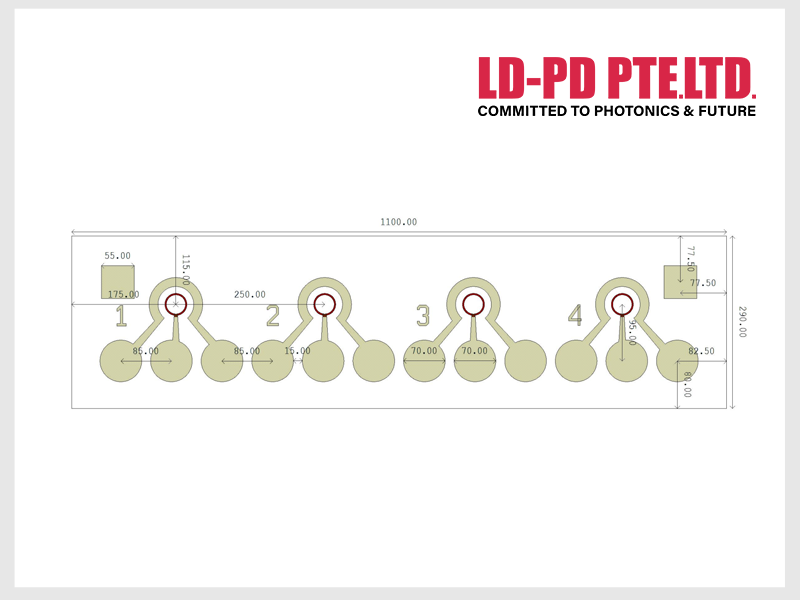

Dimensions and Pin definitions

850nm 100Gb.png

Appearance	Min. Value	Typical Value	Max. Value	Unit
Length	1050	1100	1150	μm
Width	240	290	340	μm
Thickness	185	200	215	μm

Precautions for Use

● Necessary ESD protection measures should be taken to prevent the chip from electrostatic damage.

● Extreme care is required when handling the chip, and vacuum suction is recommended for chip handling.

● Parameters such as wire bonding force and temperature must be set carefully to avoid damaging the chip.
