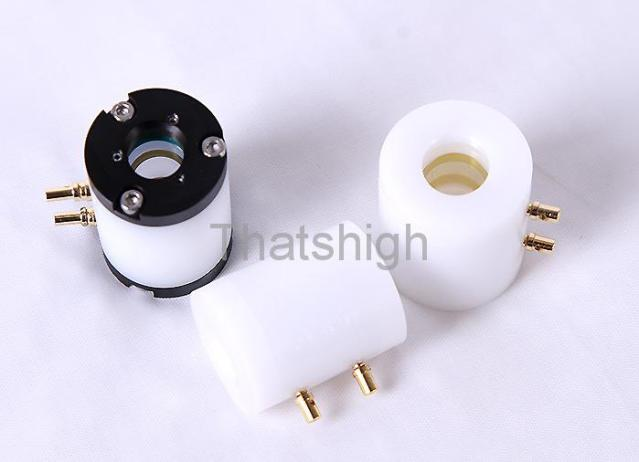

DKDP Pockels cell

Application of DKDP Pockels cell:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including: OEM laser systems; Medical/cosmetic lasers; Versatile R&D laser platforms; Military & aerospace laser systems.

THATSHIGH Specifications of DKDP Pockels cell:

Extinction Ratio	>7000:1
Wavefront Distortion	< λ/8 @633nm
Capacitance	according to different model
Single Pass Optical Transmission	>98.5%
Damage Threshold	>750MW/cm2 @1064nm, 10ns 10Hz
Spectral Range	240nm~1400nm
Typical Aperture Diameter	8mm~30mm

THATSHIGH Features of DKDP Pockels Cell:
High deuteration (>99%) DKDP.
No static birefringence.
No photorefractive damage.
Resistant to environmental temperature.
Excellent electric-optical properties.
Sealant and adhesive free.
High extinction ratio
High damage threshold
Low λ/4 Voltage
Single Pass Optical Transmission
Compact design
Easy adjustment

Typical Performance @1064nm

Type	EOD-8Sc	EOD-10Spa	EOD-11Wa	EOD-12Sb	EOD-13Sa
Dimension	Ф19*27mm	Ф25.4*39mm	Ф35*42mm	Ф28*33mm	Ф25.3*42.5mm
Clear Aperture	Ф8mm	Ф10mm	Ф11mm	Ф12mm	Ф13mm
Single pass optical transmission	>98.5%	>98.5%	>98.5%	>98.5%	>98.5%
Wavefront Distortion	<λ/8	<λ/8	<λ/8	<λ/8	<λ/8
Extinction Ratio@1064nm	>7000:1	>7000:1	>7000:1	>7000:1	>7000:1
λ/4 Voltage	3000V+/-200V	3000V+/-200V	3000V+/-200V	3000V+/-200V	3000V+/-200V
Capacitance	<4.5pF	<5pF	<6.5pF	<7pF	<8pF
DamageThreshold	750MW/cm²@1064nm.10ns,10Hz

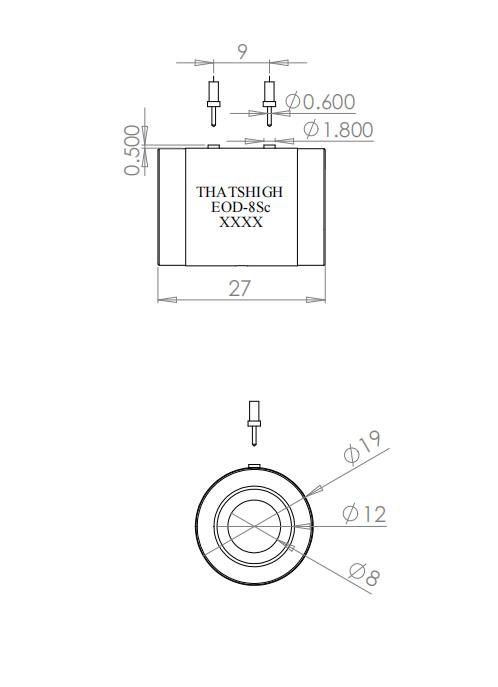

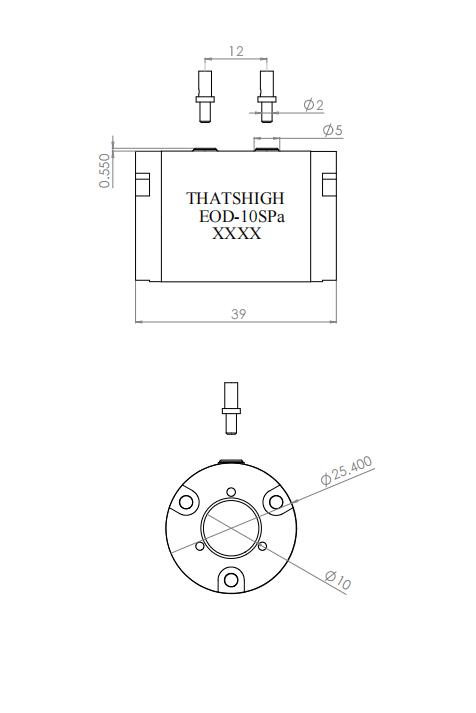

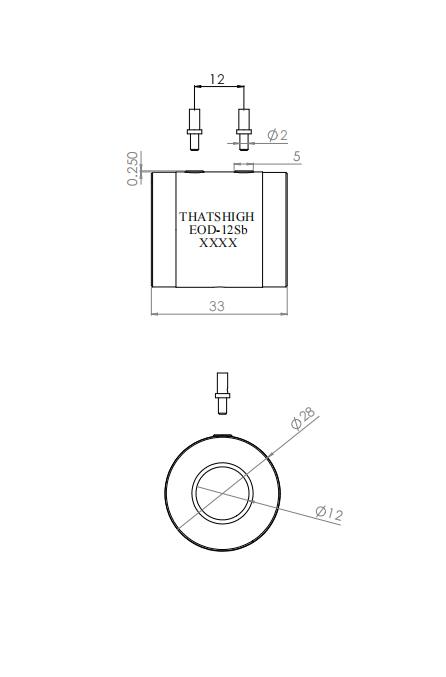

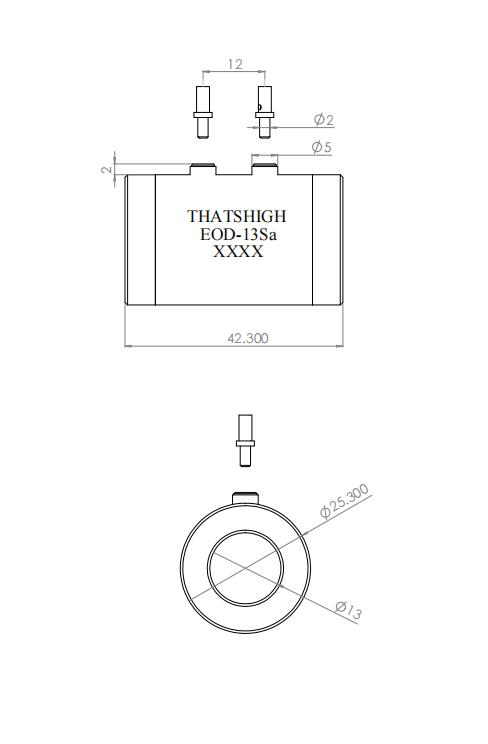

Seal Housing Schematic Diagram

Application Notices on DKDP Series Q-switch
Core exposure or loose contact is forbidden.
Recommend to be operated at constant temperature.
Please avoid any intense impact or vibration.
Unauthorized disassembly is forbidden.
