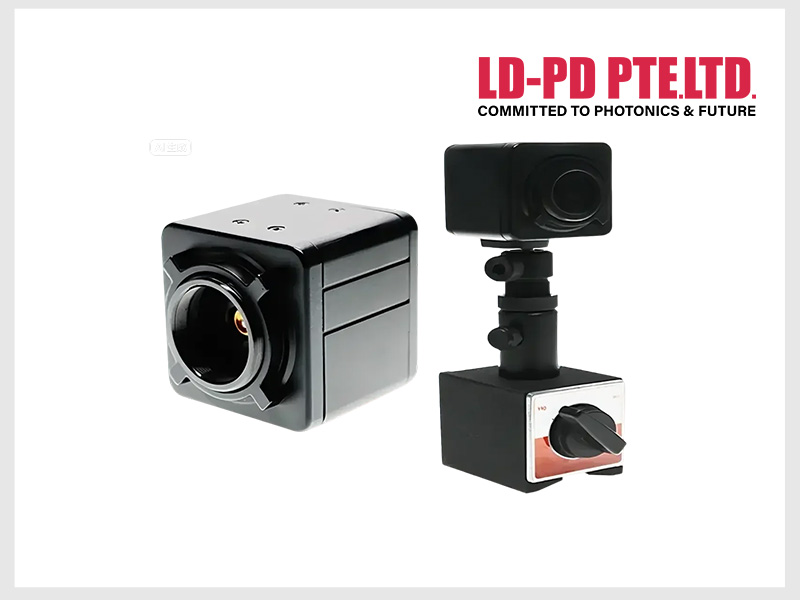

PDAM005B-Si photodetector is a rated bandwidth, fixed gain photodetector used for detecting optical signals. The optical signal is input from the photoelectric sensor surface, and the output is in the form of voltage through BNC. This product can measure the optical signal in the wavelength range of 400nm to 1100nm. Refer to appendix table for specific performance parameter data. The housing of the LD-PD photodetector has inch 1/4"-20 threaded mounting holes, which can be easily installed and fixed. The housing part also comes with two different sizes of threaded adapters, which are suitable for industrial and scientific research applications, it can be easily adapted to external optical components, such as filters, attenuators, lenses, FC fiber adapters, etc. This product includes a plastic dust cover. Please refer to the third chapter for specific installation. Each photodetector is equipped with a linear DC power supply with an output of 9V, and the rated input voltage of this DC power supply is 220VAC/50Hz.
Product model
| 140MHz Si Amplifier Photodetector |
PDA12A8B4G-VIS | Spectral Response 400 - 1100nm; Bandwidth 140MHz; Active diameter 1.2mm* 1.2mm; Rise time 2.5nS; Material Si | Response wavelength: 400-1100nm Bandwidth: 140MHz |
| 50MHz Si Amplifier Photodetector |
PDA12A7B4G-VIS | Spectral Response 400 - 1100nm; Bandwidth 50MHz; Active diameter 1.2mm* 1.2mm; Rise time 7nS; Material Si | Response wavelength: 400-1100nm Bandwidth: 50MHz |
| 5MHz Si Amplifier Photodetector |
PDA25A6B4G-VIS | Spectral Response 400 - 1100nm; Bandwidth 5MHz; Active diameter 2.5mm* 2.5mm; Rise time 68nS; Material Si | Response wavelength: 400-1100nm Bandwidth: 5MHz |
| 200KHz Si Amplifier Photodetector |
PDA36A5B6G-VIS | Spectral Response 320 - 1100nm; Bandwidth 200KHz; Active diameter 3.6mm * 3.6 mm; Rise time 1.7µS; Material Si | Response wavelength: 400-1100nm Bandwidth: 200kHz |
| 20KHz Si Amplifier Photodetector |
PDA25A4B8G-VIS | Spectral Response 400-1100nm; Bandwidth 20KHz; Active diameter 2.5mm*2.5 mm; Rise time 18µS; Material Si | Response wavelength: 400-1100nm Bandwidth: 20kHz |
Parameter
Features
General Parameters：
● Spectral Response: 400-1100nm
● Material: Si
● Bandwidth (Hz): 5 MHz
Product Characteristics:
● Low noise, less than ±l mV
● The overshoot is small, and the overshoot voltage is less than 2.5%.
● Gain stability: gain error is less than 1%
● Dark bias voltage output noise: less than 1 mV (rms)
Specifications
PN# | PDA12A8B4G-VIS | PDA12A7B4G-VIS | PDA25A6B4G-VIS | PDA36A5B6G-VIS | PDA25A4B8G-VIS |
Wavelength | 400 - 1100 nm | 400 - 1100 nm | 400 - 1100 nm | 320 - 1100 nm | 400 - 1100 nm |
Bandwidth | DC - 140MHz | DC - 50MHz | DC - 5MHz | DC - 200KHZ | DC - 20KHZ |
Rise time | 2.5 nS | 7 nS | 68 nS | 1.7 µS | 18 µS |
Gain | Hi-Z load | 1*104 V/A | 5*104 V/A | 1*105 V/A | 1.68*106 V/A | 1*108 V/A |
50Ω load | 5*103 kV/A | 2.5*104 kV/A | 5*104 V/A | 8.4*105 V/A | — |
Output Noise (RMS) | 850µV .typ | 800µV .typ | 700µV .typ | 1mV .typ | 1.5mV .typ |
NEP | 2*10-11 W/√HZ | 6.3*10-12 W/√HZ | 5.3*10-12 W/√HZ | 2.2*10-12 W/√HZ | 1.8*10-13 W/√HZ |
Active diameter | 1.2mm*1.2 mm | 1.2mm*1.2 mm | 2.5mm*2.5 mm | 3.6mm*3.6mm | 2.5mm*2.5 mm |
Operating temperature | 10-50℃ | 10-50℃ | 10-50℃ | 10-50℃ | 10-50℃ |
Supply Voltage | ±9V | ±9V | ±9V | ±9V | ±9V |

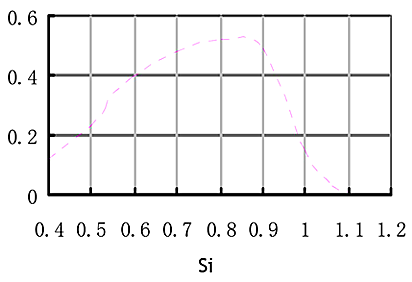

Spectral Sensitivity

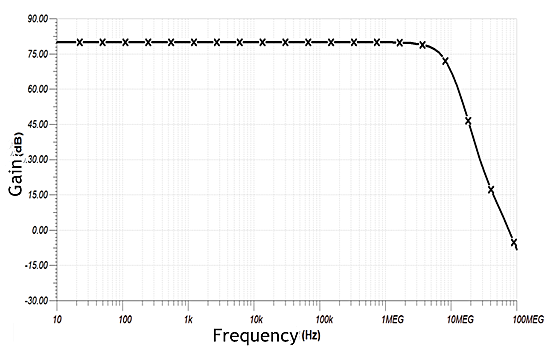

AC Transmission Characteristics

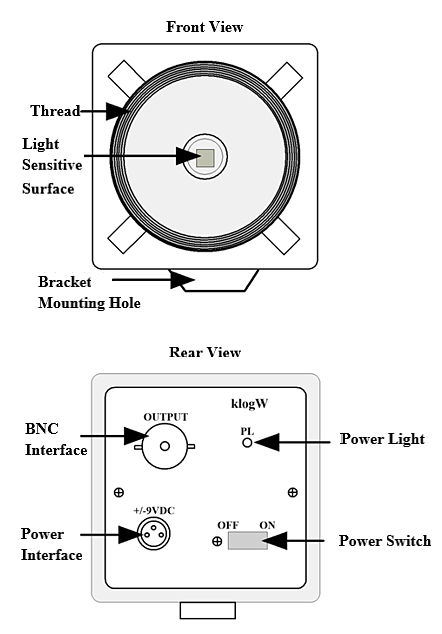

Appearance and Installation
Test Case:
Test light source:
PN：PL-DFB-9672.4-B-A81-PA
SN：DO3431e-q2-Bo2-A19

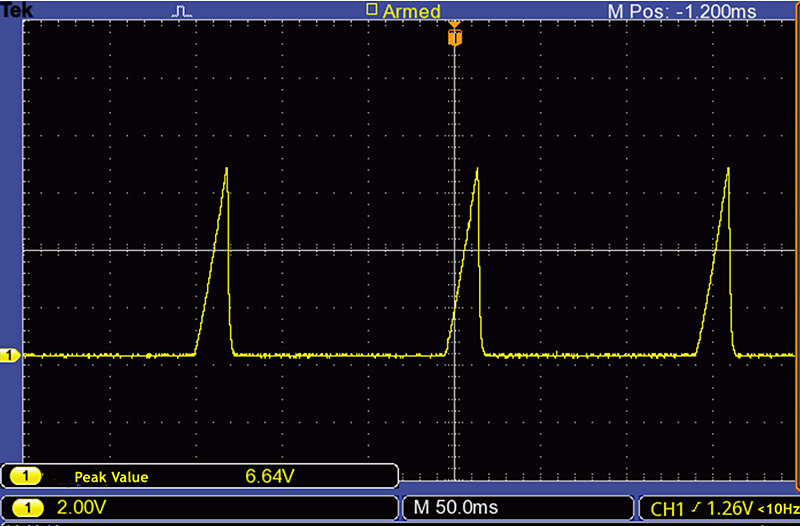

Test conditions: 25℃, laser current scanning for 15-23mA, detector output as shown in the following figure.
This detector has high detection accuracy at 972nm, and can also detect weak light (tens of microwatts).

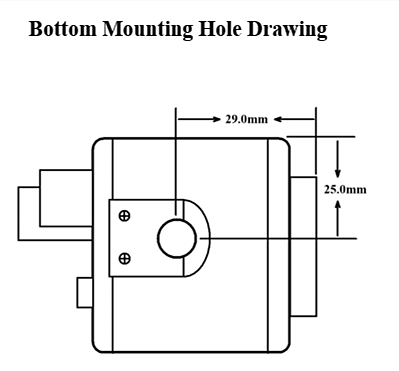

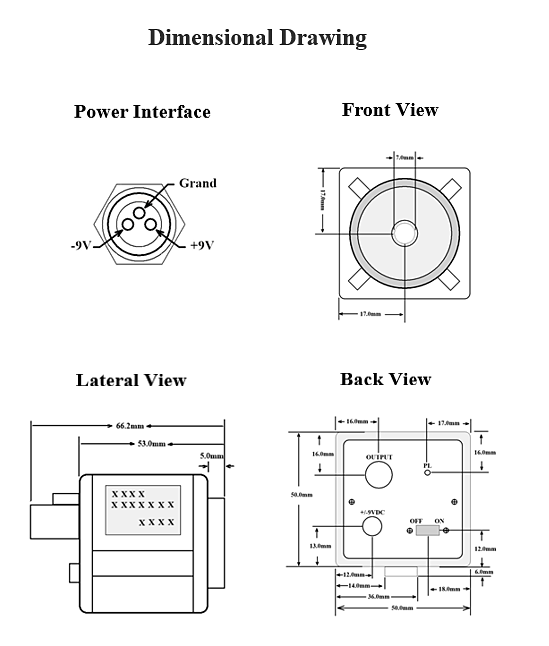

Outline Diagram and Die Dimensions
Application
● Display panel detection
● Stroboscopic analysis of LED lighting
● Measurement of flicker frequency and power of toy light
● Gas analysis
