Our silicon detector covers a spectral range of 200nm to 1100nm, commonly used for ultraviolet and visible light measurements. The amplified detector features fixed gain and quantized photo conversion. It provides sufficient gain while ensuring high bandwidth performance, making it ideal for applications involving low light intensity and fast-speed photodetection. It is the same model as Solebo THORLABS, ensuring seamless compatibility. With exceptional performance, high cost-efficiency, and comprehensive technical support, we also offer custom non-standard solutions.
Product model
| 200~1100nm Si Amplifier Fixed Gain |
PDA10A2(DP) | Spectrum response range 200nm to 1100nm, Active area φ1.0mm, Bandwidth range DC~150MHz | Response wavelength: 200–1100nm Active area: 1mm |
Parameter
Features
● Si Photodetector, featuring a spectral response range from 200nm to 1100nm, it is commonly used for UV and visible light measurements.
● Amplified detector, fixed gain, quantitative photoelectric conversion
● With sufficient gain, high bandwidth performance is guaranteed, suitable for photoelectric detection application development with weak light intensity and fast speed
● Same model as THORLABS, seamlessly compatible
● Excellent performance, high cost performance, all-round technical support
● Provide non-standard customization services
Key Parameter
Common parameters
PN# | PDA10A2(DP) | PDA015A-UV(DP) | PDA015A2(DP) | PDF10A2(DP) | PDA8A2(DP) |
Wavelength range | 200~1100nm | 400~1000nm | 320~1100nm | 320~1000nm |
Active area | Φ1.0mm | Φ150μm | Φ150μm | 1.1m X 1.1mm | Φ0.8mm |
Bandwidth range | DC~150MHz | DC~380MHz | DC~20Hz | DC~50MHz |
Gain | Hi-Z load：1 X 104 V/A; 50Ωload：5 X 103V/A | Hi-Z load：5 X 104 V/A; 50Ωload：2 .5 X 104 V/A | 1 x 1012 V/A ±10% | Hi-Z load：100kV/A; 50Ωload：50kV/A |
Signal amplitude | Hi-Z load：0~10V; 50Ωload：0~5V | Hi-Z load：0~10V; 50Ωload：0~5V | 0~10V | Hi-Z load：0~3 .6V; 50Ωload：0~1.8V |
NEP | 2.92 X 10-11 W/Hz1/2 | 3.6 X 10-11 W/Hz1/2 | 3.0 X 10-15 W/Hz1/2 | 7.8 X 10-12 W/Hz1/2 |
Active area depth | 0.09" (2.2 mm) | 0.20" (5.0 mm) | 0.10" (2.4 mm) | 0.07" (1.8 mm) |
Operating temperature | 10～50℃ | 10～40℃ | 10～50℃ |
Storage temperature | -25～70℃ |
Detector net weight | 0.1kg | 0.06kg |
Dimension | 2.79" x 1.96" x 0.89" (70.9 mm x 49.8 mm x 22.5mm) | 2.79" x 1.96" x 0.89" (70.9 mm x 49.9 mm x 22.5mm) |
Power supply interface | Power switch | Signal interface | Gain adjustment | Strut interface | Optical interface |
LUMBERG RSMV3 FEMALE | LDS12B(DP), ±12 VDC regulated linear power supply, 6 W, 220VAC | Slide switch with LED indicator | BNC female | M4 x 2 | SM1 x 1 SM0.5 x 1 |
Response curve
Product Configuration

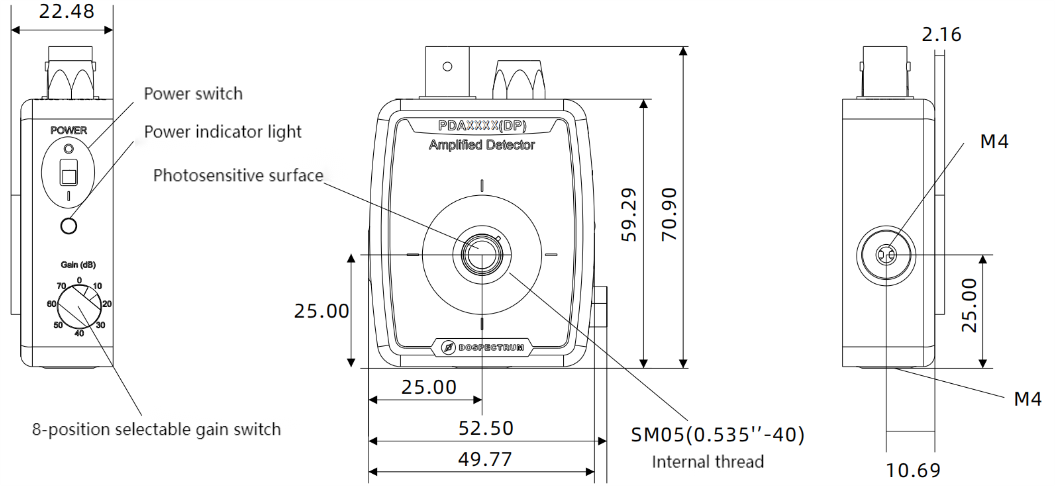

Dimension
Application
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
Ordering Info
PN# | Spectrum response range | Active area | Fixed Gain (Hi-Z Load) | Bandwidth range | Characteristic |
PDA10A2(DP) | 200~ 1100nm | Φ1.0mm | 1 X 104 V/A | DC~150MHz | High speed with gain, suitable for fast weak light measurement |
PDA015A2-UV(DP) | 200~ 1100nm | Φ150μm | 5 X 104 V/A | DC~380MHz |
PDA015A2(DP) | 400~ 1000nm | Φ150μm | 5 X 104 V/A | DC~380MHz |
PDF10A2(DP) | 320~ 1100nm | 1.1mm x 1.1mm | 1 X 1012 V/A ±10% | DC~20Hz | Very weak light (fW) measurement |
PDA8A2(DP) | 320~ 1000nm | Φ0.8mm | 100kV/A | DC~50MHz | Parameter balance |

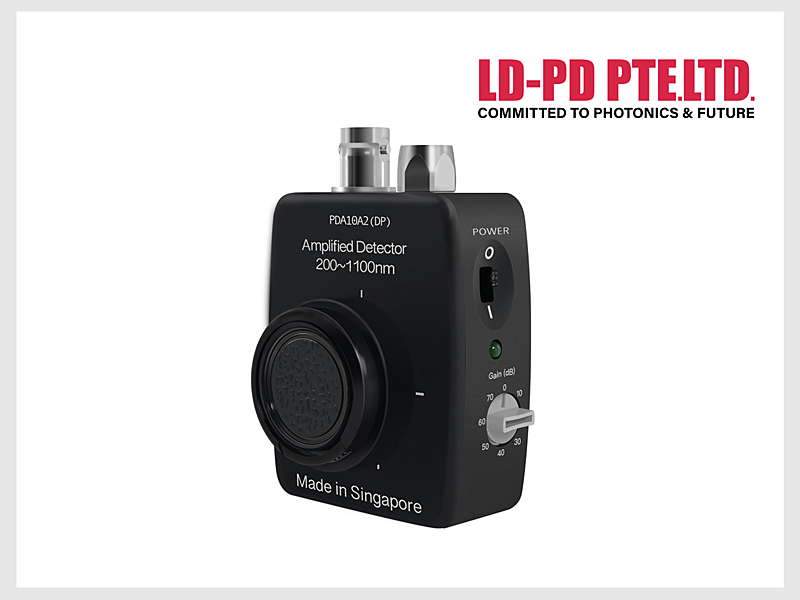

Product model
PDA10A2(DP)Response wavelength: 200–1100nm
Active area: 1mm
Parameter
● Si Photodetector, featuring a spectral response range from 200nm to 1100nm, it is commonly used for UV and visible light measurements.
● Amplified detector, fixed gain, quantitative photoelectric conversion
● With sufficient gain, high bandwidth performance is guaranteed, suitable for photoelectric detection application development with weak light intensity and fast speed
● Same model as THORLABS, seamlessly compatible
● Excellent performance, high cost performance, all-round technical support
● Provide non-standard customization services
Common parameters
PN#
PDA10A2(DP)
PDA015A-UV(DP)
PDA015A2(DP)
PDF10A2(DP)
PDA8A2(DP)
Wavelength range
200~1100nm
400~1000nm
320~1100nm
320~1000nm
Active area
Φ1.0mm
Φ150μm
Φ150μm
1.1m X 1.1mm
Φ0.8mm
Bandwidth range
DC~150MHz
DC~380MHz
DC~20Hz
DC~50MHz
Gain
Hi-Z load：1 X 104 V/A; 50Ωload：5 X 103V/A
Hi-Z load：5 X 104 V/A; 50Ωload：2 .5 X 104 V/A
1 x 1012 V/A ±10%
Hi-Z load：100kV/A; 50Ωload：50kV/A
Signal amplitude
Hi-Z load：0~10V; 50Ωload：0~5V
Hi-Z load：0~10V; 50Ωload：0~5V
0~10V
Hi-Z load：0~3 .6V; 50Ωload：0~1.8V
NEP
2.92 X 10-11 W/Hz1/2
3.6 X 10-11 W/Hz1/2
3.0 X 10-15 W/Hz1/2
7.8 X 10-12 W/Hz1/2
Active area depth
0.09" (2.2 mm)
0.20" (5.0 mm)
0.10" (2.4 mm)
0.07" (1.8 mm)
Operating temperature
10～50℃
10～40℃
10～50℃
Storage temperature
-25～70℃
Detector net weight
0.1kg
0.06kg
Dimension
2.79" x 1.96" x 0.89"
(70.9 mm x 49.8 mm x 22.5mm)
2.79" x 1.96" x 0.89"
(70.9 mm x 49.9 mm x 22.5mm)
Power supply interface
Power switch
Signal interface
Gain adjustment
Strut interface
Optical interface
LUMBERG RSMV3 FEMALE
LDS12B(DP),
±12 VDC regulated linear power supply, 6 W, 220VAC
Slide switch with LED indicator
BNC female
M4 x 2
SM1 x 1 SM0.5 x 1

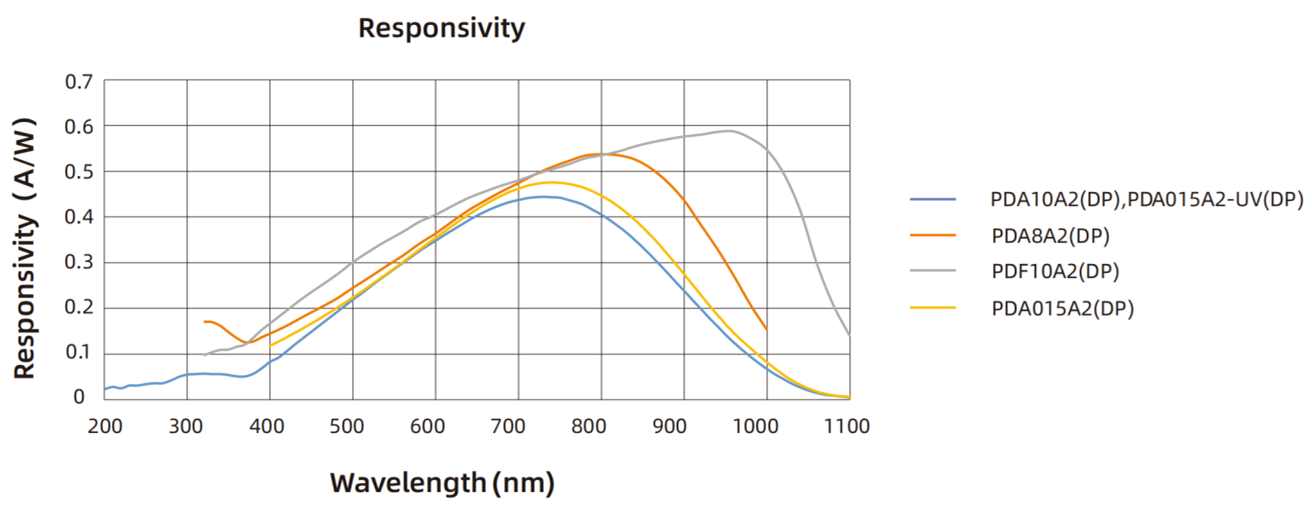

Response curve

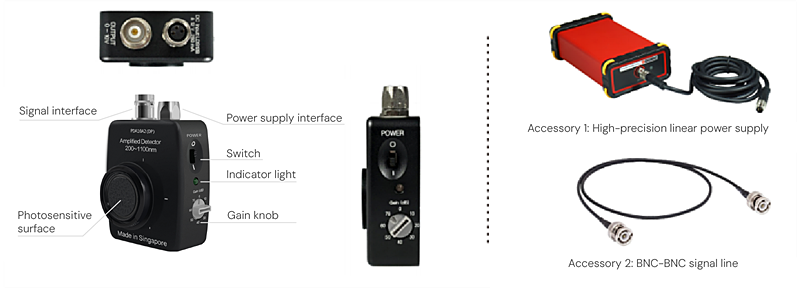

Product Configuration
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
