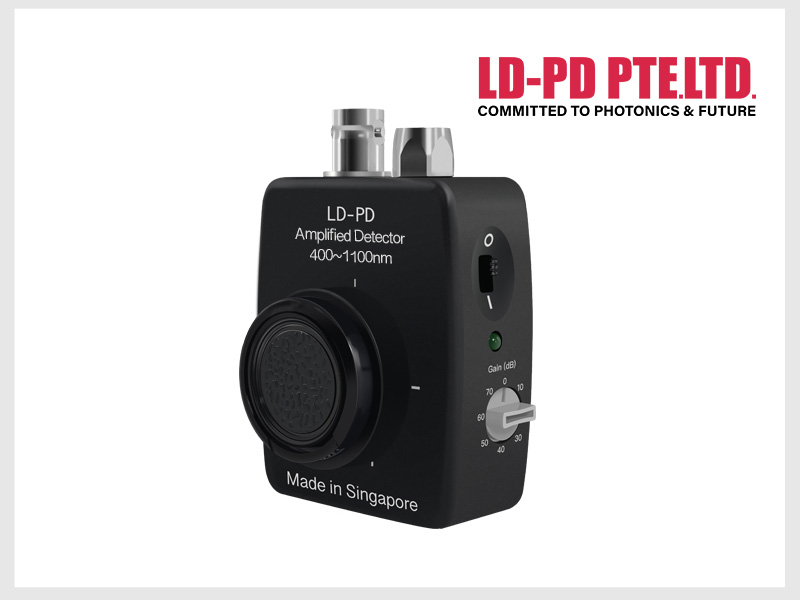

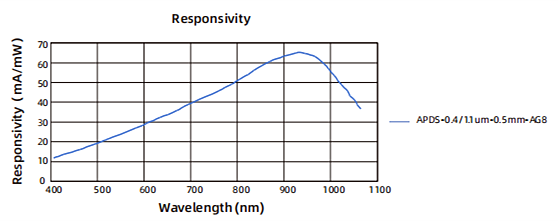

Response wavelength: 400-1100nm

Bandwidth: 12MHz

Product model

APDS-0.4/1.1um-0.5mm-AG8

Wavelength range

400~1100nm

Photosensitive size

Φ0.5mm

APD bias voltage adjustment range

0 ~ 400 V

APD gain M

0 ~ 400

Response time constant

2.5ns

Bandwidth range

DC~12MHZ

Gain range

Hi-Z   load: 1.51kV/A~4.75MV/A; 50Ω load: 0.75kV/A~2.38 MV/A

Signal amplitude

Hi-Z   load: 0~10V; 50Ω load: 0～ 5V

Gain adjustment method

1:   Rotary gear adjustment: 0~70dB, 10dB per gear, 8 gears in total; 2:   Single-turn potentiometer adjusts the APD's own gain; the bandwidth is   inversely proportional to the gain.

Photosensitive surface

depth

0.056" (1.5 mm)

Detector net weight

0.11kg

Operating temperature

10～40℃

Storage temperature

-20～70℃

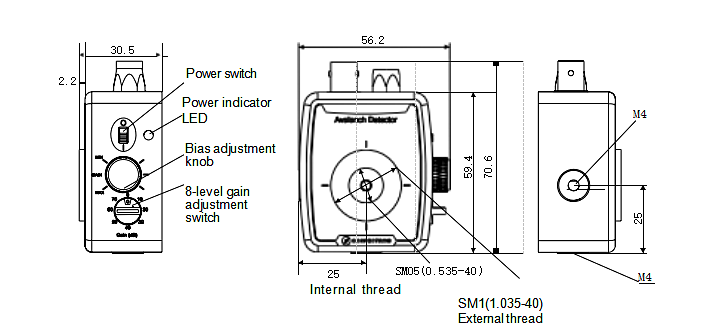

Appearance size

2.78"   X 2.21" X 1.20" (70.6 mm X 56.2 mm X 30.5 mm)

NEP

2.67~71.7   pW/Hz1/2

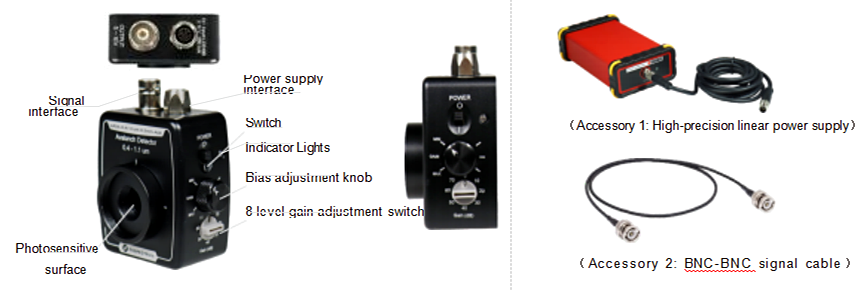

Power supply interface

Power switch

Signal interface

Gain adjustment

Support rod interface

Optical interface

LUMBERG

RSMV3 FEMALE

Slide switch

With LED indicator

BNC female socket

Single-turn potentiometer 8-position knob

M4 X 2

SM1 X 1 SM0.5 X 1

0dB

10dB

20dB

30dB

Gain (Hi-Z)

1.51X103V/A

Gain (Hi-Z)

4.75X103V/A

Gain (Hi-Z)

1.5X104V/A

Gain (Hi-Z)

4.75X104V/A

Gain (50Ω)

0.75X103V/A

Gain (50Ω)

2.38X103V/A

Gain (50Ω)

0.75X104V/A

Gain (50Ω)

2.38X104V/A

Bandwidth (BW)

12MHz

Bandwidth (BW)

1.6MHz

Bandwidth (BW)

1MHz

Bandwidth (BW)

260kHz

Noise (RMS)

258μV

Noise (RMS)

192μV

Noise (RMS)

207μV

Noise (RMS)

211μV

40dB

50dB

60dB

70dB

Gain (Hi-Z)

1.51X105V/A

Gain (Hi-Z)

4.75X105V/A

Gain (Hi-Z)

1.5X106V/A

Gain (Hi-Z)

4.75X106V/A

Gain (50Ω)

0.75X105V/A

Gain (50Ω)

2.38X105V/A

Gain (50Ω)

0.75X106V/A

Gain (50Ω)

2.38X106V/A

Bandwidth (BW)

90KHz

Bandwidth (BW)

28KHz

Bandwidth (BW)

9kHz

Bandwidth (BW)

3kHz

Noise (RMS)

214μV

Noise (RMS)

234μV

Noise (RMS)

277μV

Noise (RMS)

388μV

Signal bias

±8mV(Typ.) ，±12mV(Max)
