Silicon Avalanche Photodetectors (APDs) are designed to provide greater sensitivity and lower noise than standard PIN detectors, making them ideal for applications with low optical power levels. In addition to our standard APDs, versions with variable gain (i.e., M factor) and/or temperature compensation are also available.
Product model
| Avalanche Photodetector (APD) |

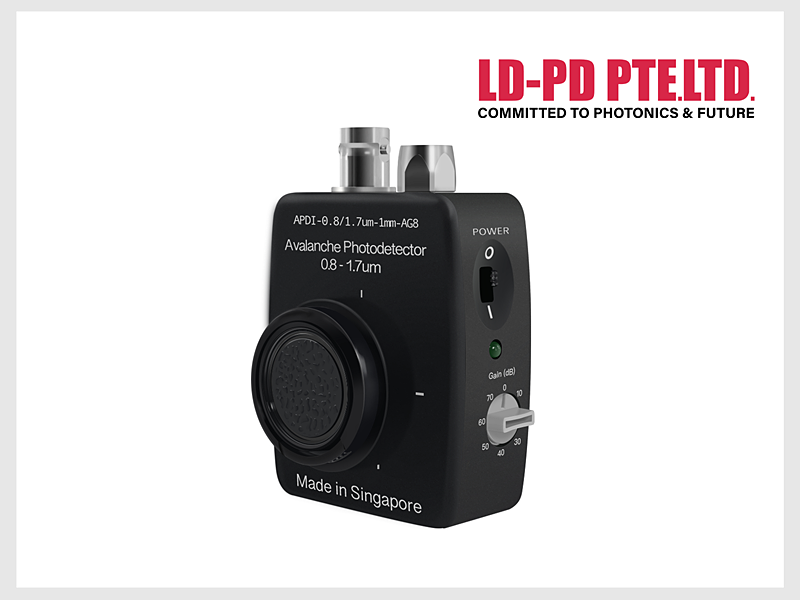

APDI-0.8/1.7um-1mm-AG8 | Response wavelngth 800-1700nm, Photosensitive size Φ1mm, Response time constant 5ns | Response wavelength: 800-1700nm Bandwidth: 12MHz |
Parameter
Features
● InGaAs detector, with a sensitivity range of 800nm~1700nm, is commonly used for near-infrared light measurement;
● Avalanche Photodetector （APD）: 800~1700nm, InGaAs, Adjustable GAIN;
● Amplified detector, 8-level adjustable gain, quantitative photoelectric conversion;
● Wide dynamic range, suitable for various photoelectric development scenarios, widely used;
● Excellent performance, high cost performance, all-round technical support;
● Provide non-standard customized services.
Specifications
Specification
PN# | APDI-0.8/1.7um-1mm-AG8 | APDI-0.8/1.7um-0.5mm-AG8 | APDI-0.8/1.7um-0.2mm-AG8 | APDI-0.8/1.7um-0.1mm-AG8 | APDI-0.8/1.7um-0.08mm-AG8 | APDI-0.8/1.7um-0.05mm-AG8 |
Photosensitive range | 800～ 1700nm |
Photosensitive size | φ1.0mm | Φ0.5mm | Φ0.2mm | Φ0.1mm | Φ0.08mm | Φ0.05mm |
APD bias voltage adjustment range | 0 ~ 55 V | 0 ~ 55 V | 0 ~ 55 V | 0 ~ 55 V | 0 ~ 55 V | 0 ~ 55 V |
APD gain M | 0 ~ 30 | 0 ~ 30 | 0 ~ 30 | 0 ~ 30 | 0 ~ 30 | 0 ~ 30 |
Response time constant | 5 ns | 1 ns | 300 ps | 200 ps | 300 ps | 150 ps |
Bandwidth range | DC~12MHZ |
Gain range | Hi-Z load: 1.51kV/A~4.75MV/A; 50Ω load: 0.75kV/A~2.38 MV/A |
Signal amplitude | Hi-Z load: 0～10V; 50Ω load: 0～5V |
Gain adjustment method | 1: Rotary gear adjustment: 0~70dB, 10dB per gear, 8 gears in total; 2: Single-turn potentiometer adjusts the APD's own gain; the bandwidth is inversely proportional to the gain. |
Photosensitive surface depth | 0.05" (1.2 mm) |
Detector net weight | 0.11kg |
Operating temperature | 10～40℃ |
Storage temperature | -20～ 70℃ |
Appearance size | 2.78" X 2.21" X 1.20" (70.6 mm X 56.2 mm X 30.5 mm) |
NEP | 2.67~71.7 pW/Hz1/2 |
Power supply interface | Power switch | Signal interface | Gain adjustment | Support rod interface | Optical interface |
LUMBERG RSMV3 FEMALE | Slide switch with LED indicator | BNC female socket | Single-turn potentiometer | M4 X 2 | SM1 X 1 SM0.5 X 1 |
0dB | 10dB | 20dB | 30dB |
Gain (Hi-Z) | 1.51X10³V/A | Gain (Hi-Z) | 4.75X10³V/A | Gain (Hi-Z) | 1.5X10⁴V/A | Gain (Hi-Z) | 4.75X10⁴V/A |
Gain (50Ω) | 0.75X10³V/A | Gain (50Ω) | 2.38X10³V/A | Gain (50Ω) | 0.75X10⁴V/A | Gain (50Ω) | 2.38X10⁴V/A |
Bandwidth (BW) | 12MHz | Bandwidth (BW) | 1.6MHz | Bandwidth (BW) | 1MHz | Bandwidth (BW) | 260kHz |
Noise (RMS) | 258μV | Noise (RMS) | 192μV | Noise (RMS) | 207μV | Noise (RMS) | 211μV |
Signal bias | ±8mV(Typ.),±12mV(Max)
|
40dB | 50dB | 60dB | 70dB |
Gain (Hi-Z) | 1.51X10⁵V/A | Gain (Hi-Z) | 4.75X10⁵V/A | Gain (Hi-Z) | 1.5X10⁶V/A | Gain (Hi-Z) | 4.75X10⁶V/A |
Gain (50Ω) | 0.75X10⁵V/A | Gain (50Ω) | 2.38X10⁵V/A | Gain (50Ω) | 0.75X10⁶V/A | Gain (50Ω) | 2.38X10⁶V/A |
Bandwidth (BW) | 90KHz | Bandwidth (BW) | 28KHz | Bandwidth (BW) | 9kHz | Bandwidth (BW) | 3kHz |
Noise (RMS) | 214μV | Noise (RMS) | 234μV | Noise (RMS) | 277μV | Noise (RMS) | 388μV |
Signal bias | ±8mV(Typ.),±12mV(Max) |
Eight-level quantitatively adjustable gain parameters
Note：
● For a complete list of specifications and responsivity curves, see the APDxxxC Specs tab. Data valid at 23 ± 5 °C and 45% ± 15% relative humidity (noncondensing).
● Maximum gain set at peak response wavelength, 23 ± 5 °C temperature range
Spectral response curve
Dimension

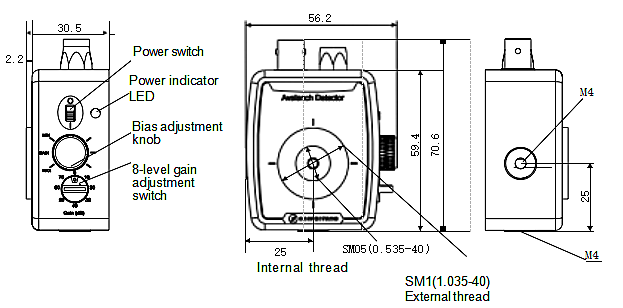

Dimensions (unit: mm)

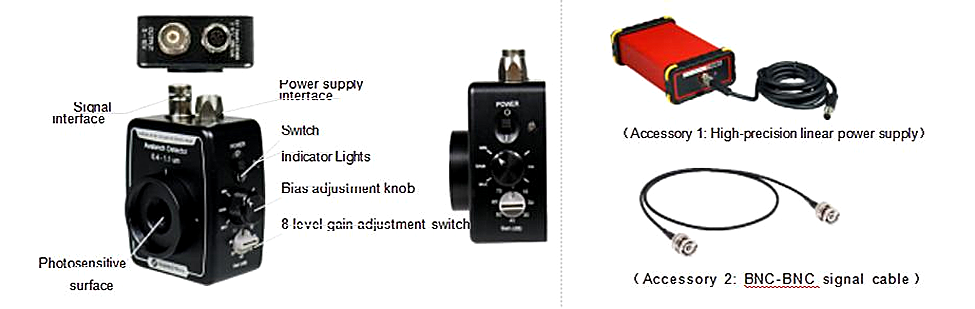

Accessories Instructions
Operate as specified
Pay attention to static protection
Application
● Laser radar
● Laser ranging
● Fluorescence detection
Ordering Info
PN# | Sensitivity range | Photosensitive size | Gain range | Characteristic |
APDI-0 8/1.7um-1mm-AG8 | 800～ 1700nm | φ 1.0mm | 0～70dB, Eight-speed quantitative adjustable gain | The largest InGaAs APD on the market |
APDI-0.8/1.7um-0.5mm-AG8 | 0.5mm | High sensitivity, Suitable for detection of weak light and high-speed signals |
APDI-0.8/1.7um-0.2mm-AG8 | 0.2mm |
APDI-0.8/1.7um-0.1mm-AG8 | 0.1mm |
APDI-0.8/1.7um-0.08mm-AG8 | φ 0.08mm |
APDI-0.8/1.7um-0.05mm-AG8 | φ0.05mm |
