Si PD Module

High speed and low noise balance photo detector consists of two matched ultra-low noise analog photodiodes, a low noise broadband transimpedance amplifier and Ultra Low Noise power supply. Due to high gain, high sensitivity, high bandwidth, low noise, and high common mode rejection ratio, the high speed and low noise balance photo detector can effectively reduce the commonmode noise, and improve the signal-to-noise ratio of the system.

Product model

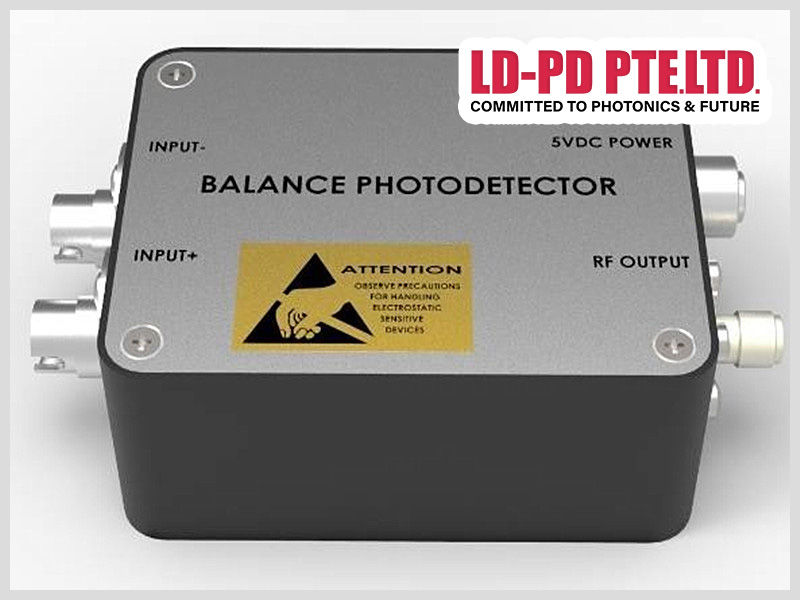

400MHz Ultra Low Noise Balance Photodetector

UBD-400M-B

Response wavelngth 400-1100nm, Bandwidth 400M, Material Si, Detector response 0.55A/W@850nm, Optical Input Free Space

Response wavelength: 400-1100nm

Bandwidth: 400MHz

Parameter

Features

● Ultra Low Noise

● High Bandwidth

● High Transimpedance Gain

Specifications

Product Model	UBD-400M-B	Unit
Detector Type	Si	Unit
Wavelength	400~1100	nm

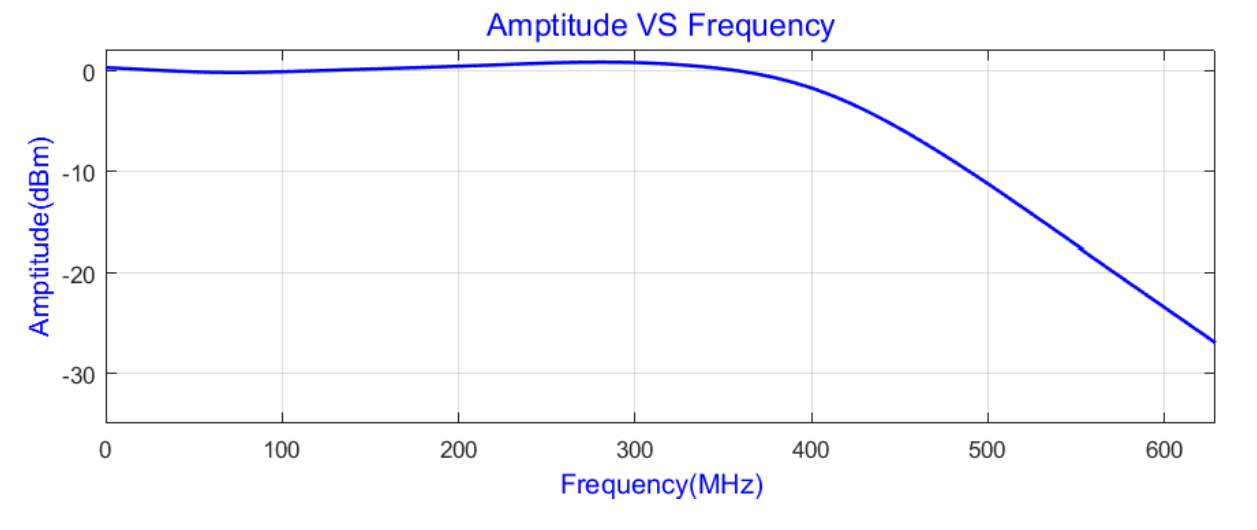

Bandwidth	400M	Hz

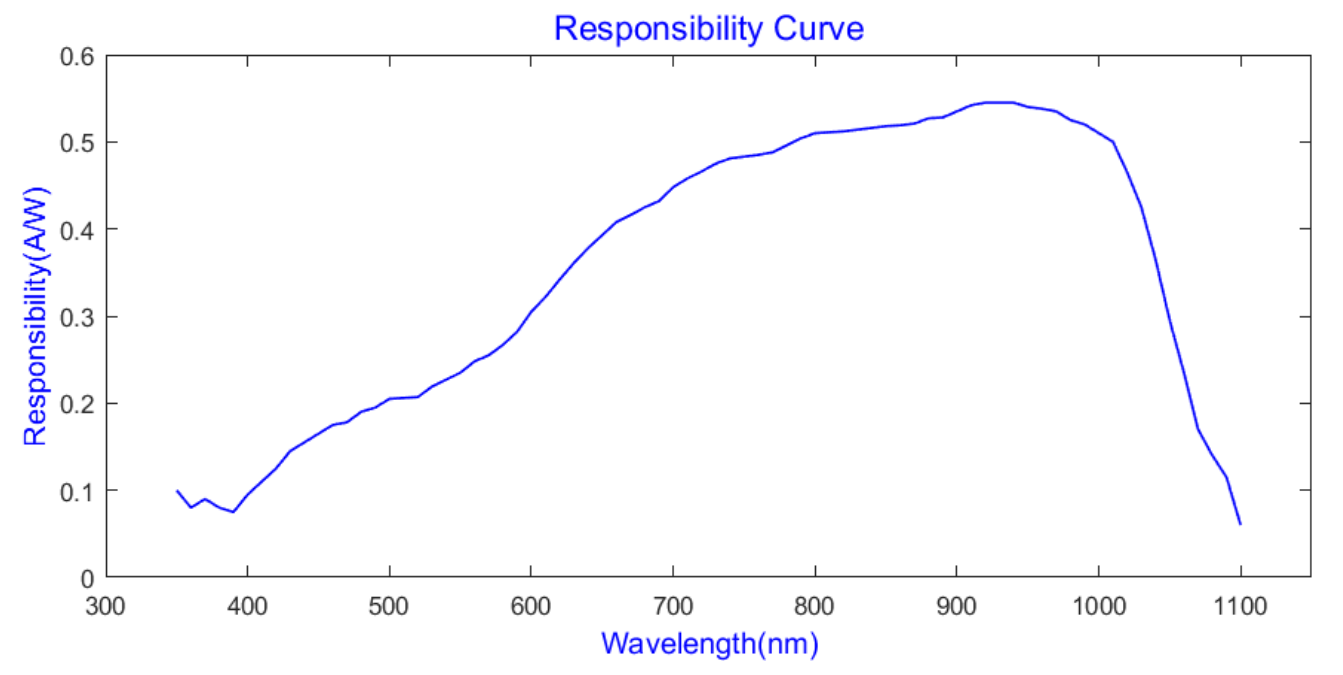

Responsivity	0.55@850nm	A/W
Transimpedance Gain	20K	V/W
Saturated Input Optical Power	360	uW
NEP	5 (Typical)	pW/Sqrt(Hz)
Output Impedance	50	Q
CMRR	>30	dB
Output Coupling Mode	AC
Supply Voltage	5	V
Supply Current	0.5(max)	A
Optical Input	FC/APC
RF Output	SMA

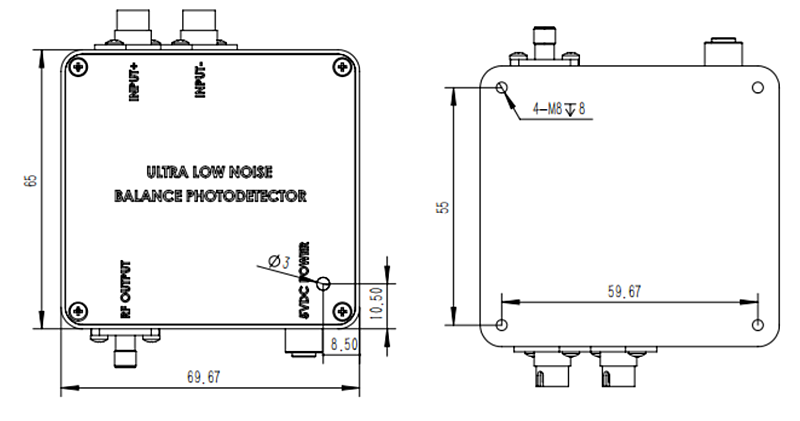

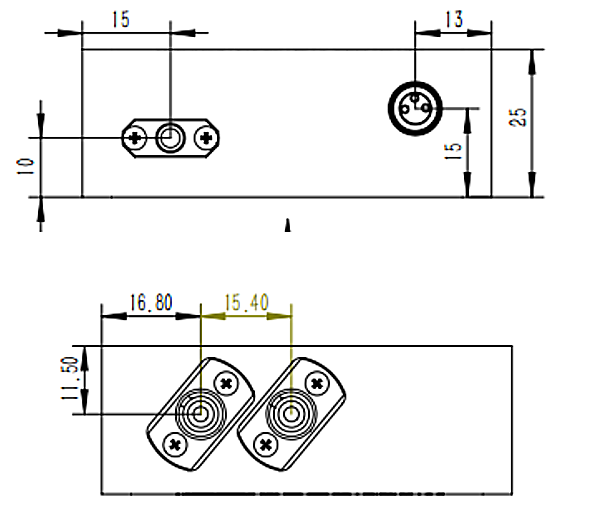

Size	657025	mm
